NPP-5E2BLKXX1
Cat5e Shielded Patch Panels
2 models
- Eight-port RJ45 modules applied
- ID stripes for identifying port allocations
- IDC compatible with Krone tool
- Terminating 4 pairs, 22-26 AWG, shielded cable
- Friendly installation, right angle between IDCs and RJ45 Keystone jacks
- Jack shutter to keep dust away
- Hand screw, easy to open cover
StandardsANSI/TIA/EIA-568-C.2
Overview
D-Link Category 5e shielded patch panels use eight-port RJ45 modules and are suitable for 22-26 AWG stranded and solid wire, compatible with Krone punch down tools. D-Link patch panels have improved Cable Management with an optional Cable Management bar for terminating 4-pair shielded cable. They comply with the ANSI/TIA/EIA-568-C.2 standard.
Specifications
| Identification | I.D. Plate: PVC. Transparent Color Paper |
|---|---|
| Panel for 24 port | SECC. 1.2 mm thickness painted Black (RAL 9005) |
| Panel for 48 port | SECC. 1.5 mm thickness painted Black (RAL 9005) |
| RJ45 Jack | Housing: PBT+Glass Fiber, UL 94V-0 |
| RJ45 Jack Contact | 50 micro-inch Gold plated on Plug contact area. |
| IDC | Terminal: Phosphor Bronze with Tin plating |
| Dust Cover | PC, UL 94V-2, Transparent Black (RAL 9004) color |
| Ground wire | 18 AWG wire, with green/yellow striped color, length 40cm |
| PCB | FR4, UL 94V-0. |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|

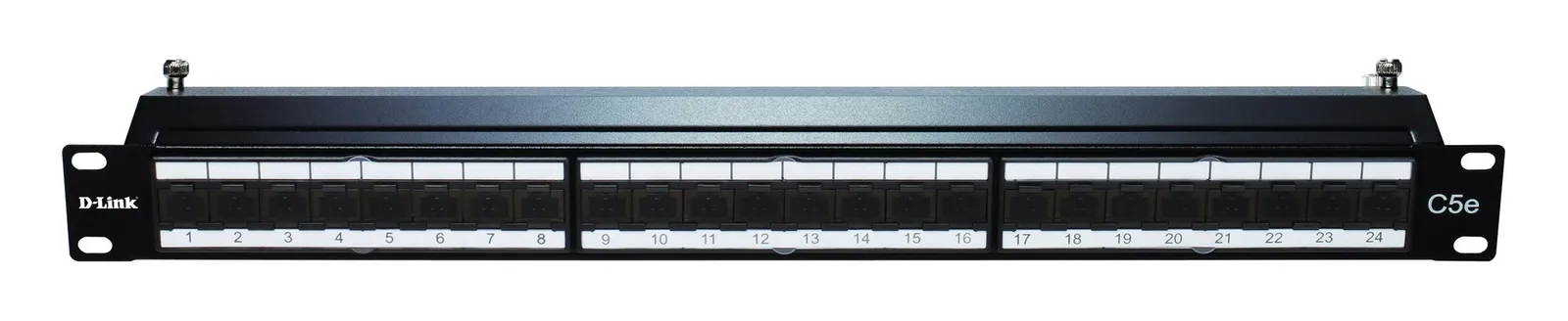

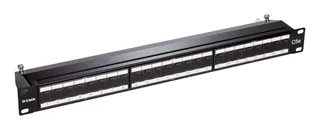

| NPP-5E2BLK241 | Cat5e Shielded 24 Port Loaded Patch Panel |

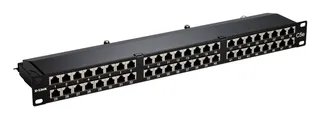

| NPP-5E2BLK481 | Cat5e Shielded 48 Port Loaded Patch Panel |
