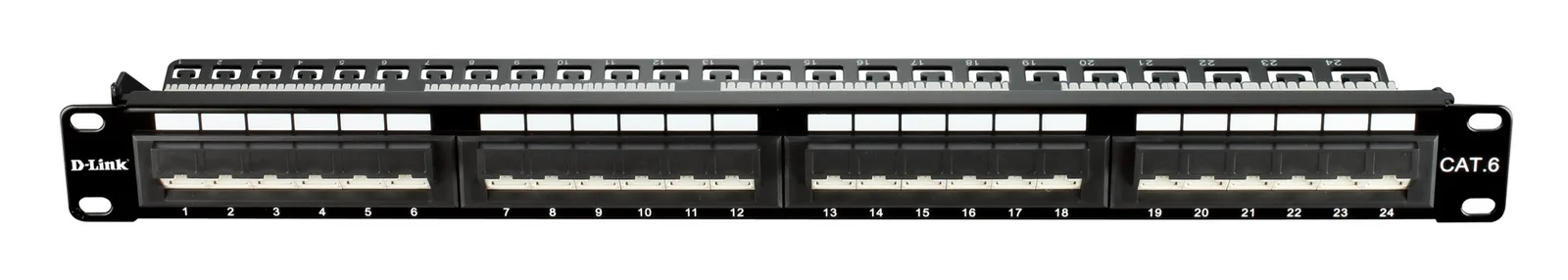

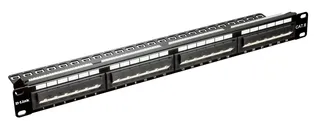

NPP-C61BLK242
Cat6 Loaded Angled Patch Panels
1 model
- Six-port RJ45 modules applied
- ID stripes for identifying port allocations
- IDC compatible with 110 & Krone tools
- Terminating 4 pairs, 22-26 AWG, stranded and solid wire
- Designed to easily route cables into vertical cable managers
- Reduces the need for horizontal, front cable management bars
StandardsANSI/TIA/EIA-568-C.2
Overview
D-Link Category 6 angled patch panels use six-port RJ45 modules and are suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools. D-Link patch panels have improved Cable Management with an optional Cable Management bar for terminating 4-pair UTP cable. They comply with the ANSI/TIA/EIA-568-C.2 standard.
Specifications
| Identification | I.D. Plate: PVC. Transparent Color Paper |
|---|---|
| Panel | SPCC. 1.5 mm thickness painted Black |
| RJ45 Jack | Housing: PBT + GF, UL94V-0. |
| RJ45 Jack Contact | Material: Phosphor Bronze with Nickel plating |
| Finish | 50 micro-inch Gold plated over nickel plating |
| IDC | Housing: PC +GF, UL94 V-2 |
| Terminal | Phosphor Bronze with Tin plating |
| Back Cover | ABS, UL94V-0 |
| Support wire | SPCC, 1.5mm thickness, painted in black |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION | COLOR |
|---|---|---|
| NPP-C61BLK242 | Cat6 Unshielded Angled 24 Port Loaded Patch Panel | Black |
