NPP-C62BLKXX1
Cat6 Shielded Patch Panels
2 models
- Hand screw, easy to open cover
- Eight port RJ45 modules applied
- Jack shutter to keep dust away
- Friendly installation, right angle between IDCs and RJ45 jacks
- ID stripes for identifying port allocations
- IDC: suitable for 22-26 AWG stranded and solid wire, compatible with Krone punch down tools
StandardsANSI/TIA/EIA-568-C.2
Overview
D-Link Category 6 Shielded patch panels use eight-port RJ-45 modules and are suitable for 22-26 AWG stranded and solid wire, compatible with Krone punch down tools. D-Link patch panels terminate 4-pair STP cable and are rack mounted. They comply with the ANSI/TIA/EIA-568-C.2 standard
Specifications
| Identification | ID plate PVC, transparent Color paper |
|---|---|
| ID Bracket | ABS , UL 94V-0 |
| Panel-24 port | SECC, 1.2mm thickness with an optional paint color |
| 48 port Front Panel : | SECC, 1.5 mm thickness with an optional paint color. |
| 48 port Middle panel : | SECC, 1.0 mm thickness with an optional paint color. |
| 48 port Top panel | SECC, 1.0 mm thickness with an optional paint color. |
| RJ45 Jack | Housing: PBT + Glass fiber, UL-94V-0 |
| Contact Brackets | PBT + Glass fiber, UL-94V-0 |
| RJ45 Jack Contact | Material: Phosphor bronze with nickel plating |
| Finish | 50 micro-inches Gold plated on plug contact area |
| RJ45 Jack Shield | Bronze with nickel plating |
| Dust Cover | PC, UL94V-2 |
| IDC | Housing: PC+ glass fiber, UL 94V-2 |
| IDC Terminal | Phosphor bronze with tin plating |
| Ground Wire | 18 AWG wire with Green/Yellow Striped color |
| PCB | FR4, UL94 V-0 |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|

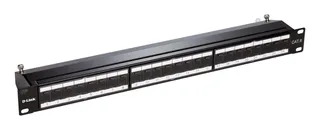

| NPP-C62BLK241 | Cat6 24 Port Shielded Loaded Patch Panel |

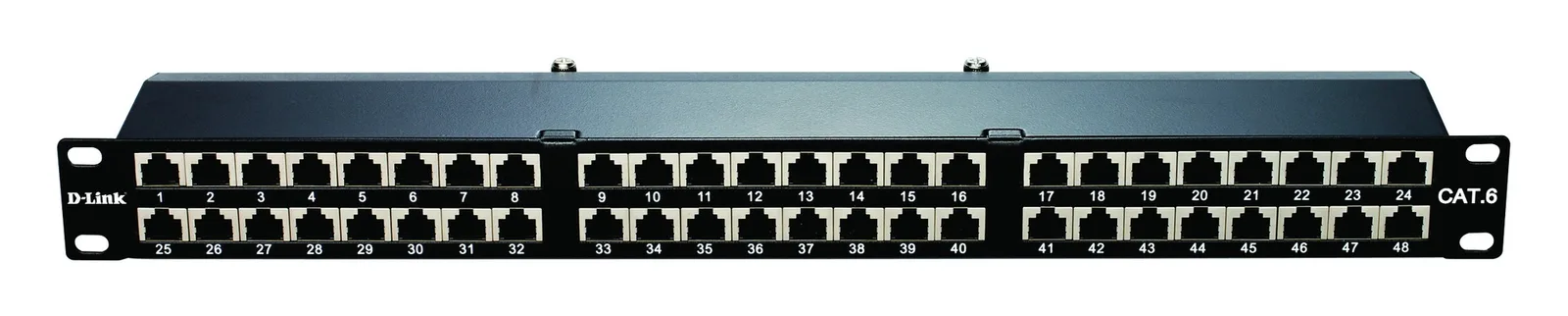

| NPP-C62BLK481 | Cat6 48 Port Shielded Loaded Patch Panel |
