NKJ-C6TWHI1B21

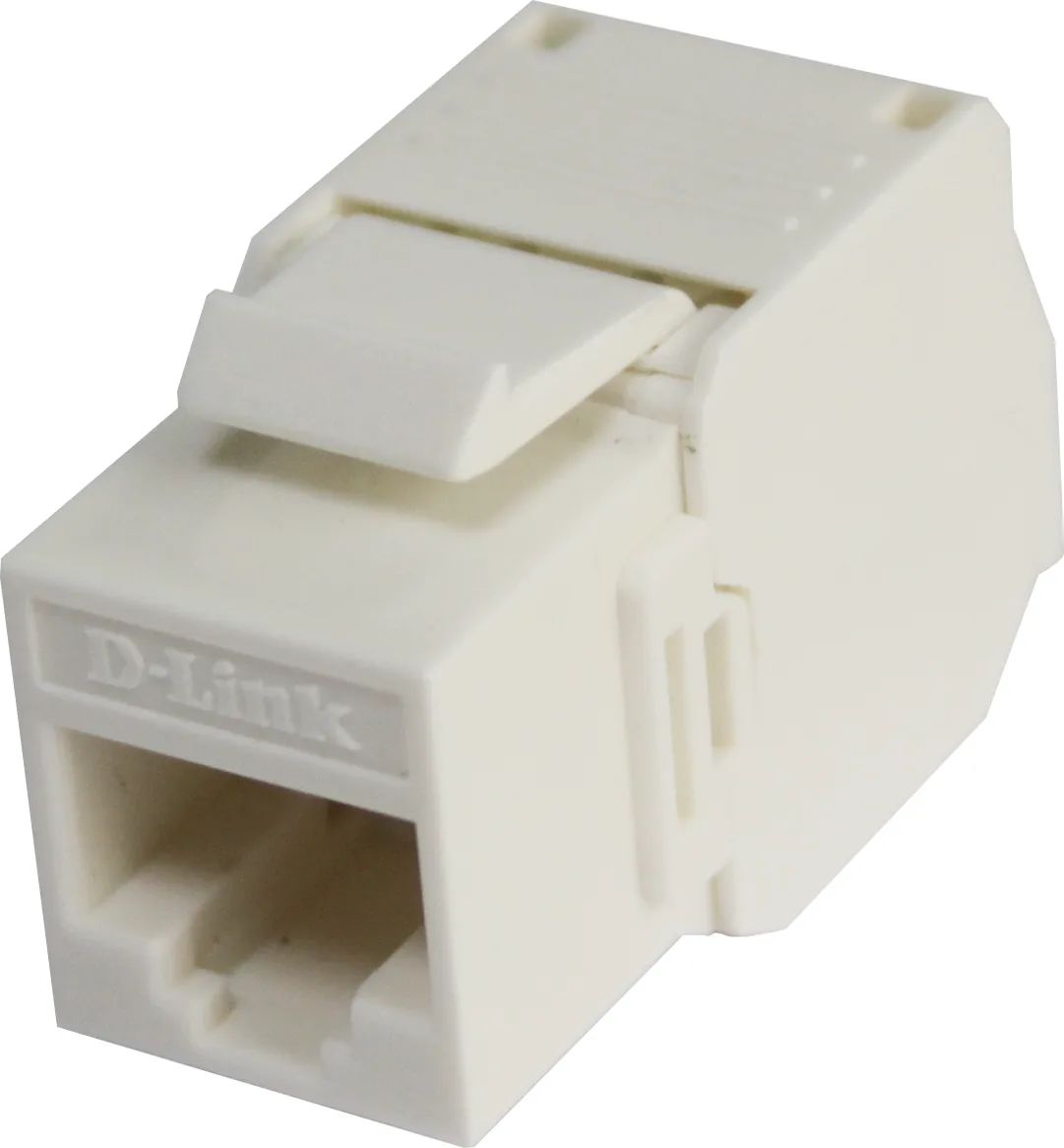

Cat6 UTP Tool-Less Keystone Jacks
1 model
- Tool-less version, no tool required for termination
Overview
8P8C Unshielded RJ45 Tool-Less Keystone Jacks
Specifications
| Frequency Range | 1-250 MHz |
|---|---|
| Compatible Conductors | 22 to 24 AWG solid |
| Pin-Pair Assignment | T568A & T568B |
| Contacts | Phosphor Bronze, 50U” Gold Plating |
| Housing | PC,UL94V-0 |
| Orientation | 180° |
| Termination Blocks | IDC ( PC, UL 94V-0 ) |
| Insertion/Withdrawal | 750 cycles |
| IDC Life | 200 times |
| Operating Temperature | -10°C to +60°C at 10-90% RH (non-condensing) |
| Storage Temperature Range | -40°C to +70°C |
| Insulation Resistance | 100MΩ Min@500 VDC |
| Dielectric withstanding Voltage | 750 VAC RMS 60Hz, 1Min |
| DC Current Rating | 1.5 Amps. |
| DC Resistance | 0.1Ω |
| Contact Resistance | 20mΩ. Jacks are compatible with 24-port 1U panels |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION | COLOR |
|---|---|---|
| NKJ-C6TWHI1B21 | Cat.6 Tool-less Keystone Jack , UTP without dust cover, White | White |
