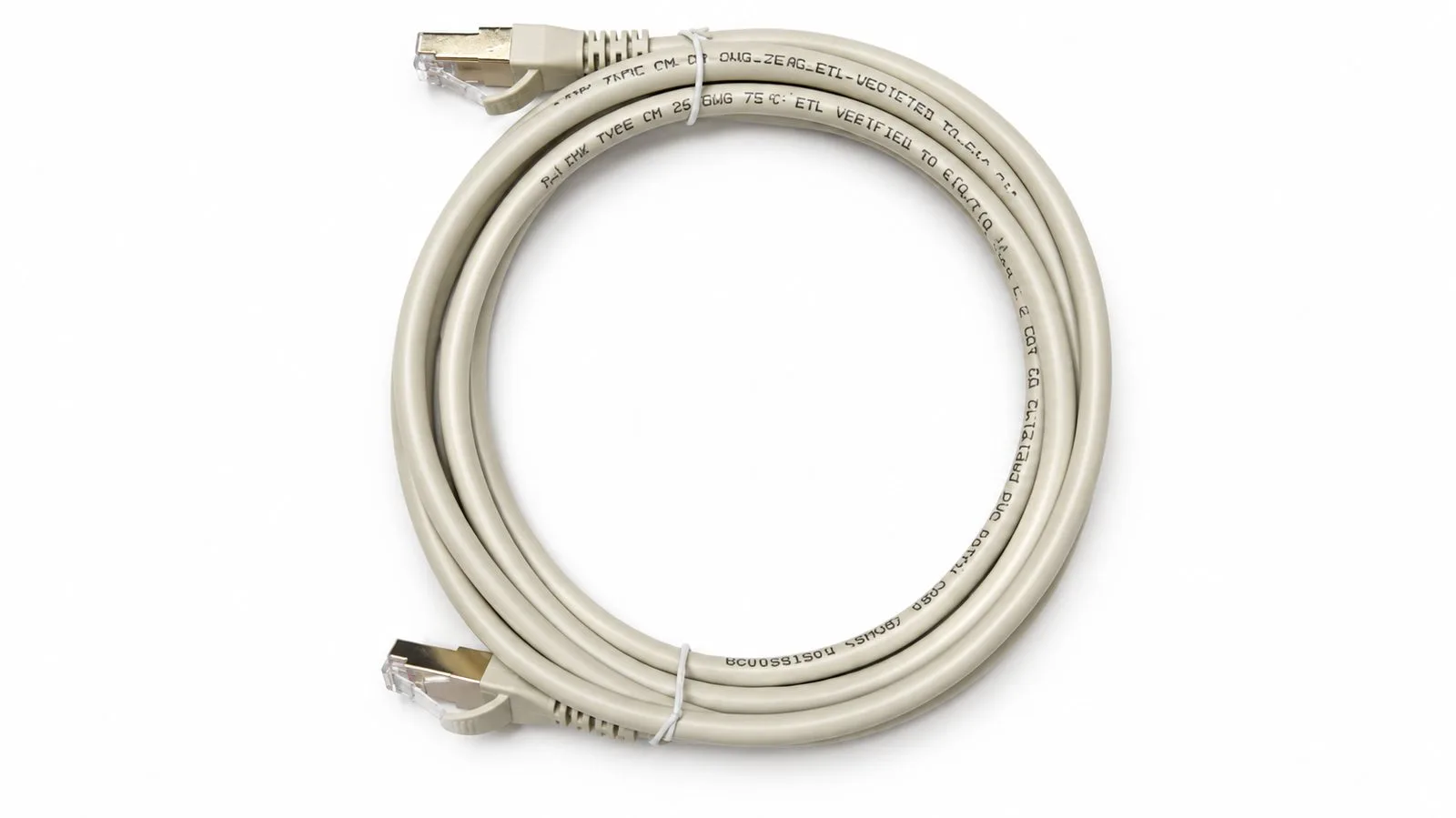

NCB-6ASGRYR1-X Series
Cat6A Shielded Patch Cords
3 models
- 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
- 100VG-AnyLAN (IEEE802.12)
- 500MHz Broadband Video
- Voice, T1, ISDN
- 155/622 Mbps ATM
- Power over Ethernet (PoE)
StandardsANSI/TIA-568.2-D
Overview
D-Link Cat6A shielded patch cords are high quality four pair twisted stranded cables terminated with RJ45 modular plugs at both ends. They are compliant with the ANSI/TIA-568.2-D standard. These patch cords are appropriate for high speed data transmission.
Applications
- 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
- 100VG-AnyLAN (IEEE802.12)
- 500MHz Broadband Video
- Voice, T1, ISDN
- 155/622 Mbps ATM
- Power over Ethernet (PoE)
Specifications
| Conductor | 26 AWG, Multi-cores |
|---|---|
| Conductor Metal | Bare Copper |
| Insulation Material | Foamed PE |
| Material | PVC |
| Color Code | Gray |
| Heat Resistance | 60°C minimum (Temperature limited) |
Modular Connector / Plug
| Gold Plated | 50U" |
|---|---|
| Contact Blade | Copper Alloy |
| Dielectric withstanding voltage | 1000V AC/ 1min no breakdown |
| Insulation Resistance | 500M Ohm, 1000V DC/min |
| UL Applications | PC UL 94-V2 |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION | COLOR |
|---|---|---|
| NCB-6ASGRYR1-1 | Cat6A Shielded 26 AWG Patch Cord, 1M, Gray | Gray |
| NCB-6ASGRYR1-2 | Cat6A Shielded 26 AWG Patch Cord, 2M, Gray | Gray |
| NCB-6ASGRYR1-3 | Cat6A Shielded 26 AWG Patch Cord, 3M, Gray | Gray |
