NPP-6A2BLKXXX Series
Cat6A Shielded Patch Panels
2 models
- Eight-port RJ45 modules applied
- ID stripes for identifying port allocations
- IDC compatible with Krone tool
- Terminating 4 pairs, 22-26 AWG, shielded cable
- Friendly installation, right angle between IDCs and RJ45 Keystone jacks
- Jack shutter to keep dust away
- Hand screw, easy to open cover
StandardsANSI/TIA/EIA-568-C.2
Overview
D-Link Category 6A shielded patch panels use eight-port RJ45 modules and are suitable for 22-26 AWG stranded and solid wire, compatible with Krone punch down tools. D-Link patch panels have improved Cable Management with an optional Cable Management bar for terminating 4-pair shielded cable. They comply with the ANSI/TIA/EIA-568-C.2 standard.
Specifications
| Identification | I.D. Plate: PVC. Transparent Color Paper |
|---|---|
| Panel for 24 port | SECC. 1.2 mm thickness painted Black (RAL 9005) |
| Panel for 48 port | SECC. 1.5mm thickness painted Black (RAL 9005) |
| RJ45 Jack | Housing: PBT+GF, UL 94V-0. |
| RJ45 Jack Contact | Material: Phosphor Bronze with nickel plating |
| Finish | 50 micro-inch Gold plated on plug contact area |
| IDC | Housing: PC+GF, UL94V-2, Terminal: Phosphor Bronze with Tin plating |
| Dust Cover | PC, UL 94V-2 |
| Ground wire | 18 AWG wire, with green/yellow striped color, length 40cm |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|

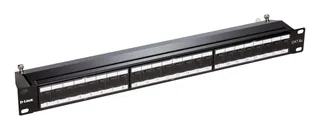

| NPP-6A2BLK241 | Cat6A Shielded 24 Port Loaded Patch Panel |

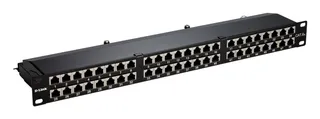

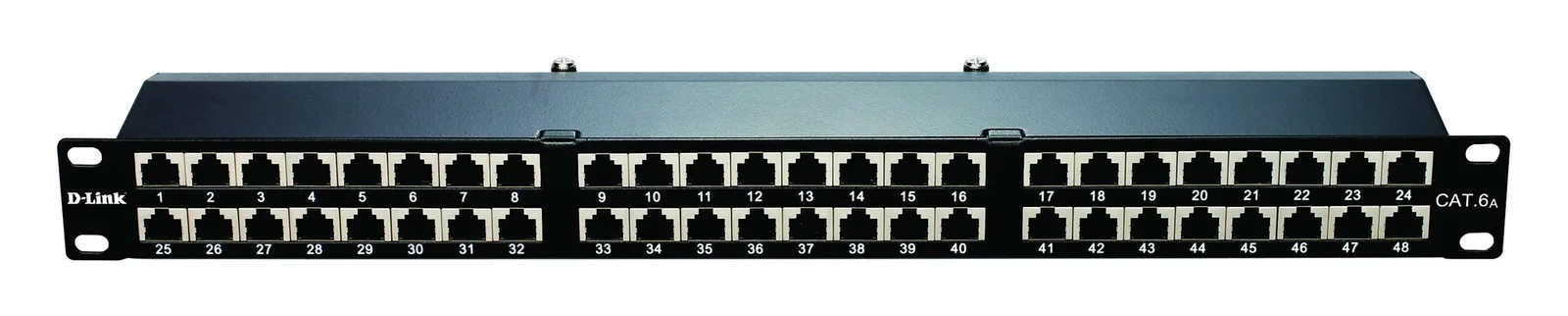

| NPP-6A2BLK481 | Cat6A Shielded 48 Port Loaded Patch Panel |
