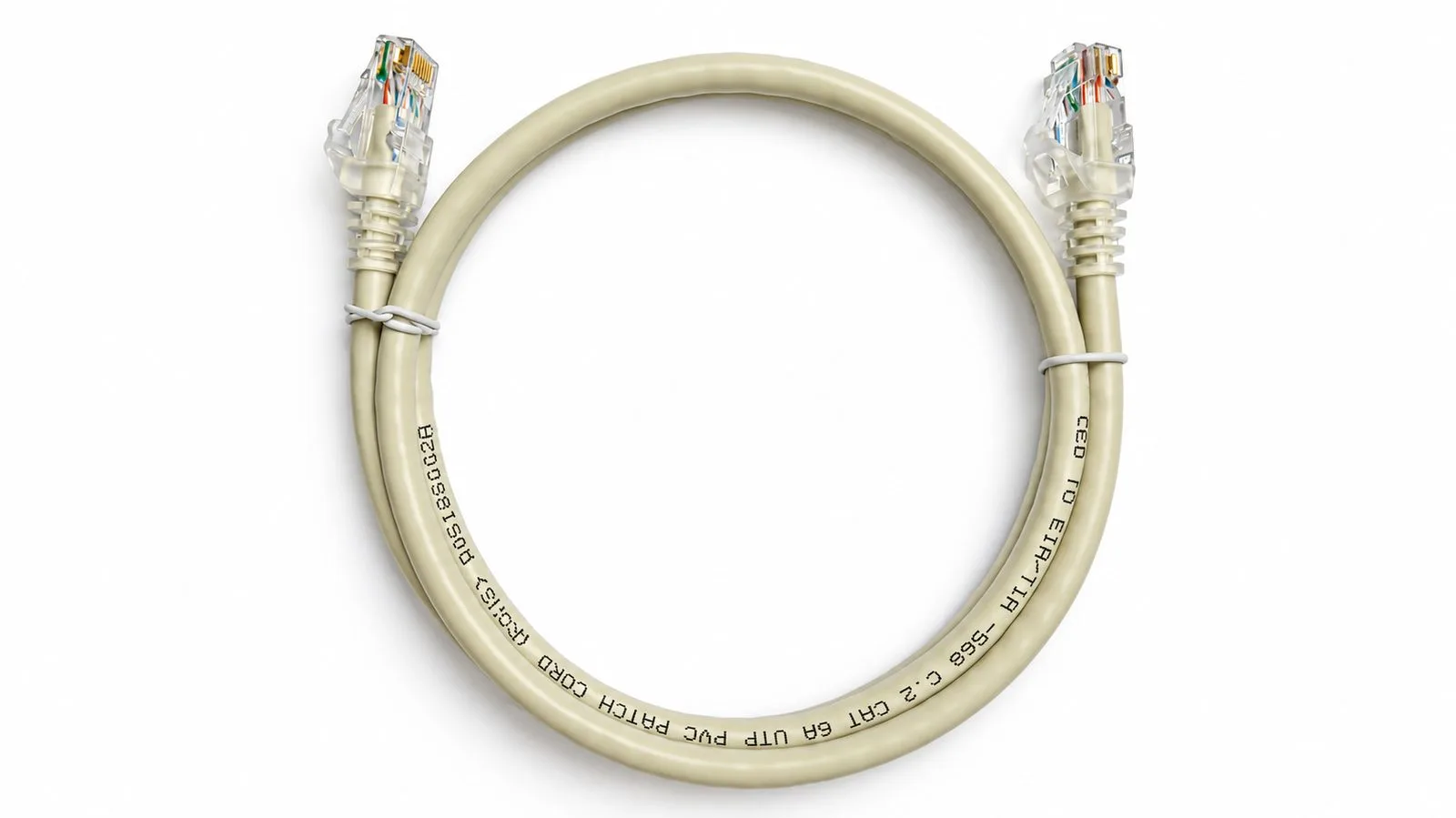

NCB-6AUGRYR1-X Series
Cat6A UTP Patch Cords
8 models
- 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
- 100VG-AnyLAN (IEEE802.12)
- 500MHz Broadband Video
- Voice, T1, ISDN
- 155/622 Mbps ATM
- Power over Ethernet (PoE)
- Available in PVC and LSZH sheaths
StandardsANSI/TIA-568.2-D
Overview
D-Link Cat6A patch cords are high quality four pair twisted stranded cables terminated with RJ45 modular plugs at both ends. They comply with the ANSI/TIA-568.2-D standard. These patch cords are appropriate for high speed data transmission.
Applications
- 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
- 100VG-AnyLAN (IEEE802.12)
- 500MHz Broadband Video
- Voice, T1, ISDN
- 155/622 Mbps ATM
- Power over Ethernet (PoE)
Specifications
| Conductor | 24 AWG Multi-strands |
|---|---|
| Conductor | Bare Copper |
| Insulation | HD-PE |
| Material | PVC (NCB-6AUGRYR1-Y), LSZH (NCB-6AUGRYR1-Y-LS) |
| Color Code | Gray |
| Heat Resistance | 60°C minimum (Temperature limited) |
| Cycles | 750 times |
Modular Connector / Plug
| Material | Copper Alloy with Nickel Plating |
|---|---|
| Finish | 50 micro-inch Gold plated |
| Temperature Range | -10 ~ 60°C |
| Dielectric withstanding voltage | 1000V AC/ 1min no breakdown |
| Insulation Resistance | >500M Ohm |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|
| NCB-6AUGRYR1-1 | Cat6A UTP 24 AWG Patch Cord, 1M, Gray |
| NCB-6AUGRYR1-2 | Cat6A UTP 24 AWG Patch Cord, 2M, Gray |
| NCB-6AUGRYR1-3 | Cat6A UTP 24 AWG Patch Cord, 3M, Gray *Available in other colors and lengths on request |
| NCB-6AUGRYR1-5 | Cat6A UTP 24 AWG Patch Cord, 5M, Gray |
| NCB-6AUGRYR1-1-LS | Cat6A UTP 24 AWG Patch Cord, LSZH, 1M |
| NCB-6AUGRYR1-2-LS | Cat6A UTP 24 AWG Patch Cord, LSZH, 2M |
| NCB-6AUGRYR1-3-LS | Cat6A UTP 24 AWG Patch Cord, LSZH, 3M |
| NCB-6AUGRYR1-5-LS | Cat6A UTP 24 AWG Patch Cord, LSZH, 5M |
