The DBR-600-P delivers high-performance networking with a 2.5GE WAN port and eight 2.5GE PoE ports for fast and reliable connectivity. Ideal for small offices and cafes, it includes a USB port for D-Link’s 4G/5G USB modem, offering flexible internet backup. With a 2Gbps firewall and IPsec VPN tunnels, it ensures secure remote access. Built-in AP management simplifies wireless access point control, making it an excellent choice for businesses seeking efficient and secure network solutions.

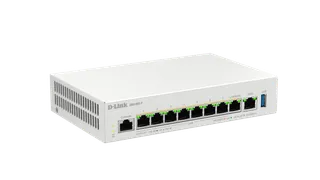

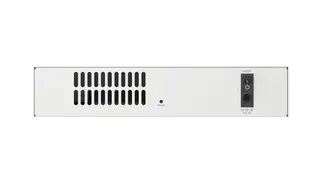

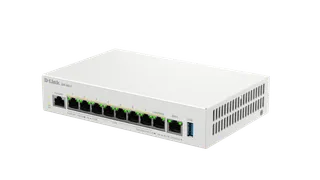

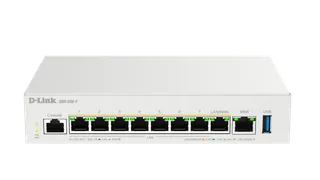

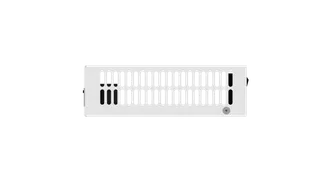

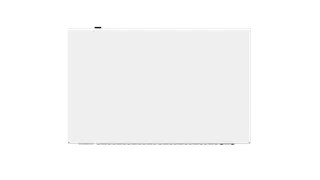

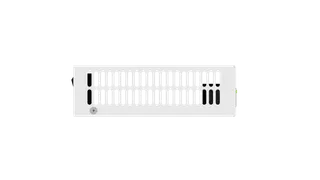

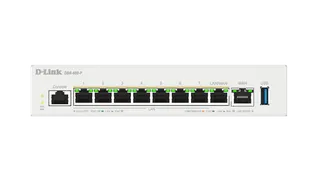

DBR-600-P
Business PoE Router
- Protocols: IPSec, PPTP/L2TP/WireGuard
- Dual WAN Redundancy
- USB LTE Dongle WAN Redundancy/Load Balance
- Up to 8 Port 802.3at PoE output
- Up to 123W total PoE output
- SPI Firewall
- DoS/DDoS/IPS
- URL Filter
- User Authentication
- Managed up to 10 DBR-X3000-AP access points
- SSID
- Wi-Fi Security: WPA/WPA2/WPA3 personal & Enterprise
- VLAN Tag
- Captive Portal: Click Through and Radius
- AP Firmware Upgrade
- Block Clients
- Client Status and Statistics
Overview
Virtual Private Network (VPN)
A Virtual Private Network (VPN) ensures secure and private connections by encrypting data and using strong authentication. It creates a secure tunnel between users and networks, protecting sensitive information from unauthorized access. VPNs enable remote access, allowing employees to connect safely to their company network from any location, and offer robust security features like data integrity and traffic encryption, ensuring reliable and safe connectivity.
Complete 2.5G Interface
A 2.5G interface on a VPN router delivers ultra-fast speeds of up to 2.5 gigabits per second, boosting VPN performance with quicker data transfers and lower latency. It supports multiple simultaneous connections, ensuring smooth, secure, and efficient remote access even during high-demand use. The added bandwidth is perfect for businesses needing reliable communication, large file transfers, and seamless video conferencing, all while maintaining strong encryption and security.
Reliable Dual WAN Redundancy
Dual WAN Intelligent Failover ensures uninterrupted internet connectivity by automatically switching to a backup WAN connection if the primary one fails. This feature enhances network reliability and maintains consistent service, minimizing downtime for critical operations. It also balances traffic across both WAN connections, optimizing bandwidth and improving performance. With this system, organizations can rely on a robust backup to handle disruptions.
WAN Load Balancing
WAN Load Balancing distributes traffic across multiple WAN connections to enhance performance and reliability. It optimizes speed and ensures smooth data transmission for high-bandwidth applications by preventing overload on any single connection. Additionally, it provides backup connections for redundancy, maintaining continuity during failures and enabling uninterrupted business operations.
Firewall Security
Robust firewall security protects your network from unauthorized access and cyber threats. It includes advanced features such as intrusion detection and prevention systems (IDS/IPS), content filtering, and stateful packet inspection (SPI). With real-time monitoring and automatic threat mitigation, it safeguards sensitive data and maintains a secure network environment for all connected devices.
High Power 8-Port PoE Solution
DBR-600-P, equipped with eight PoE ports, allows network cables to deliver data and power to devices like IP cameras and VoIP phones, eliminating the need for separate power sources. This simplifies installation, reduces cable clutter, and offers flexibility in device placement, enabling setups in areas without electrical outlets. PoE enhances network efficiency and supports applications ranging from surveillance to smart building technologies.
AP Management
The smart AP (DBR-X3000-AP) is managed through a business router (DBR-600-P) and operated via a unified dashboard, providing a centralized approach to network management. This setup simplifies network settings’ configuration, monitoring, and control, making administrative tasks more efficient. It ensures consistent policy enforcement while offering real-time insights into network activity, ultimately enhancing overall efficiency and security.
DBR-600-P
Specifications

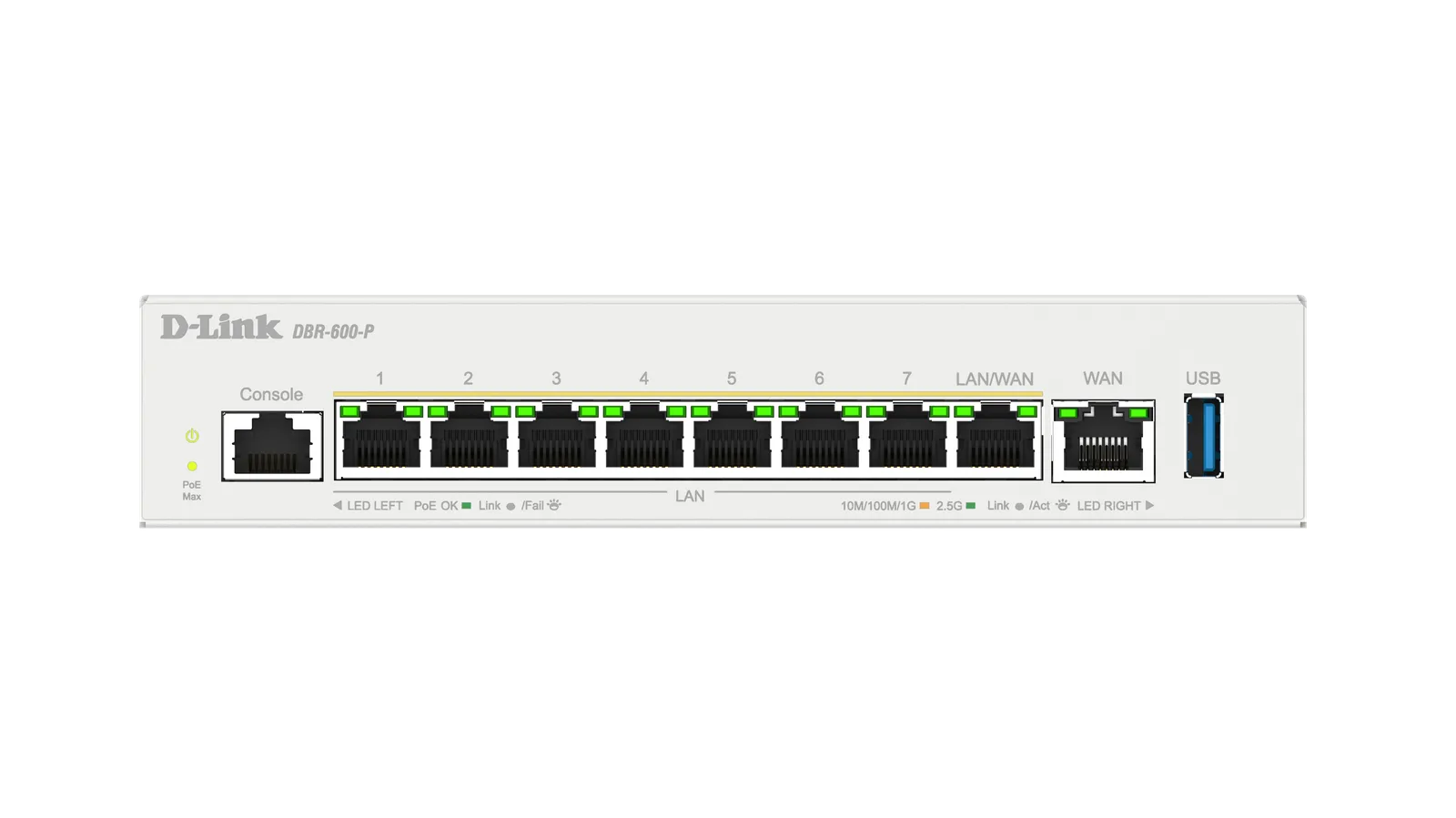

| Device Interfaces | 1 x 10/100/1000/2.5G WAN port 1 x 10/100/1000/2.5G WAN/LAN Configurable ports 7 x 10/100/1000/2.5G LAN port 1 x USB 3.0 1 x Reset Button 1 x Power Connector 1 x Console Port |
|---|---|
| PoE | 8 Port 802.3at output Power Budget up to 123W |
| Ether-WAN Type | Dynamic IP PPPoE L2TP Static IP PPTP |
| WAN Failover | Dual Ether-WAN Failover USB LTE Dongle - Ether-WAN Failover |
| WAN Load Balance | Dual Ether-WAN Load Balance USB LTE Dongle - Ether-WAN Load Balance |
| LAN & VLAN | DHCP Server/Relay Port/Tag based VLAN |
| Port Forward | DMZ VPN Pass-through Virtual Server DDNS |
| Routing | Static RIPv1/v2 Dynamic |
| VPN Tunnel | PPTP IPSec L2TP WireGuard |
| Firewall | IPS/IDS MAC/IP Filtering SPI Firewall URL Blocking |
| Managed AP | Manage Up to 10 DBR-X3000-AP |
| Wi-Fi SSID | SSID Name VLAN Tag |
| Wi-Fi Security | WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise |
| Captive Portal | Click Through RADIUS |
| Monitoring Feature | Clients IP/MAC Clients Status and Statistics |
| Device Firmware | Firmware Upgrade |
| Power Input | 54V/2.7A |
| Dimensions | 120 x 190 x 38 mm |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | -10 to 70 °C (14 to 158 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
