D-Link

DBS-2000 SERIES

Nuclias Cloud-Managed Switches

  • 10-port models: 8 GE ports and 2 SFP ports; 28/52-port models: 24/48 GE ports and 4 combo GE/SFP ports
  • Cloud management (1-year license included)
  • Up to 104 Gbps switching capacity
  • Up to 370 W PoE power budget
  • Layer 2 features and advanced security
  • Zero-Touch Deployments, unlimited scalability

Overview

Nuclias cloud-based network management

Manage your network from one place from a browser or through the app, anywhere, anytime.

License included

1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.

Zero-Touch Deployments

Plug-and-play installation, Nuclias cloud-based auto-configurations.

Unlimited scalability

Easy to add or scale back in line with your requirements as a business.

Intuitive web or app-based interface

Easy to use multilingual user interface for single or multi-site management.

High switching capacity

Large switching capacity of up to 104 Gbps.

PoE up to 370W

Power devices using single Ethernet cables, without relying on nearby power outlets.

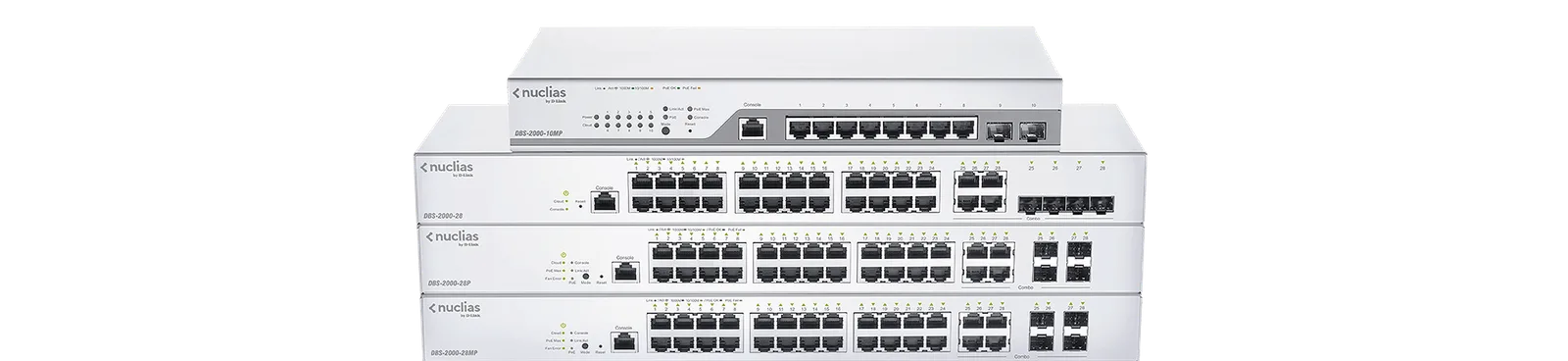

Cloud Networking is easier with Nuclias.

D-Link’s Nuclias Cloud-Managed Switches come pre-configured and are controlled remotely through the Nuclias Cloud web-browser interface or Nuclias app. That means your business can enjoy feature-rich yet easy-to-use cloud management, rapid deployments, and unlimited scalability to match the requirements of your network.

D-Link DBS-2000 SERIES Cloud Networking is easier with Nuclias

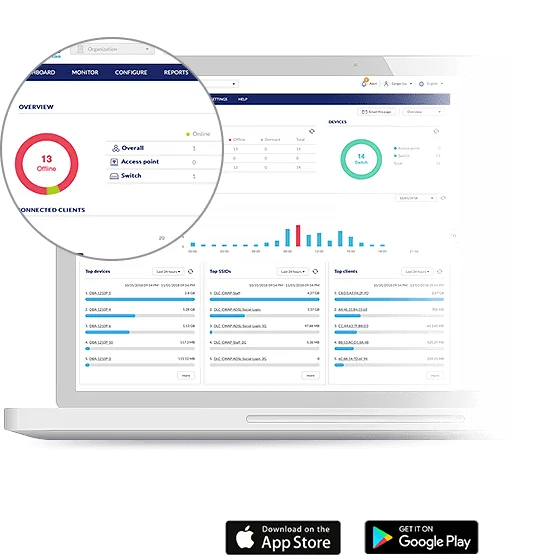

Centralised management through a single pane of glass.

Manage your entire Nuclias network from anywhere using D-Link’s easy-to-use Nuclias Cloud Management 1 platform. Segment the network, manage multiple switches simultaneously, enforce security policies, and monitor live network statistics remotely, all from the cloud with a few clicks.

Zero-touch Provisioning
Plug-and-connect deployments without the need for any additional configuration. Switches download their configurations from the cloud for quicker and easier management.

Cloud-management simplicity
Nuclias cloud is easy to use, and remote management enables you to monitor and configure your networks from anywhere and doesn’t require any on-site administration, enabling rapid deployments at remote locations.

D-Link DBS-2000 SERIES Centralised management through a single pane of glass.

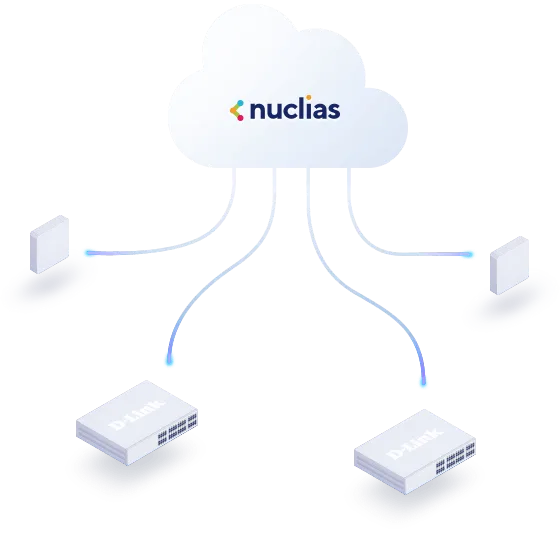

Ready before they’re out of the box.

Nuclias Cloud enables businesses to quickly configure, deploy, maintain, and expand the entire network remotely. All without the expenses of on-site staff, maintenance, and additional equipment.

With unlimited scalability, businesses can easily cater to the demands of a growing network by simply adding more Cloud-Managed Switches. Configuration profiles can be created and pushed through the cloud anytime, anywhere.

D-Link DBS-2000 SERIES Ready before they’re out of the box.

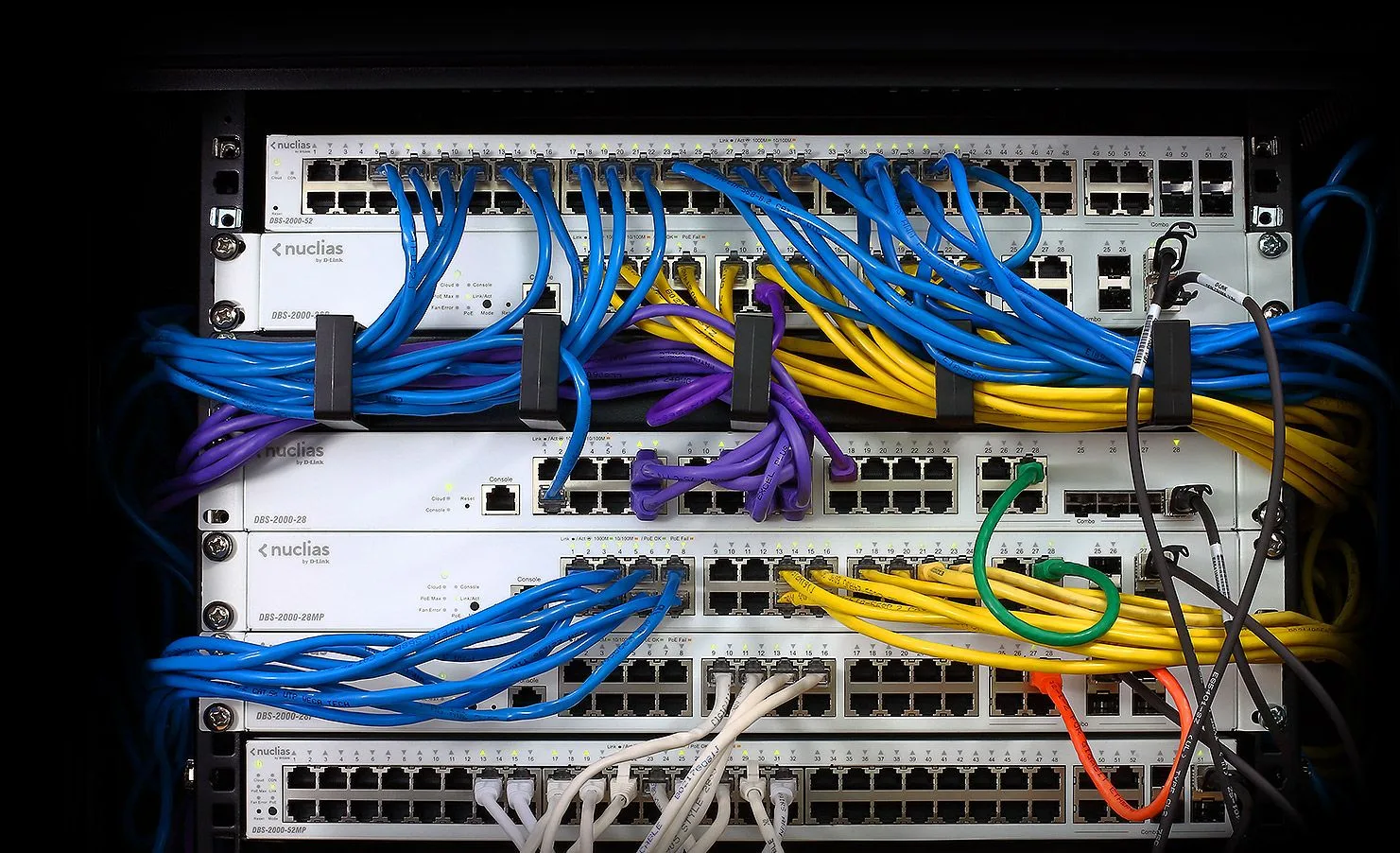

Advanced Layer 2 features and security.

While easy to deploy and manage, Nuclias Cloud-Managed Switches are equipped with enterprise-grade features including L2 capabilities such as Link Aggregation Control Protocol (LACP), IGMP snooping, Voice VLAN, Spanning Tree Protocols (STP and RSTP), and a security feature set that includes Access Control Lists (ACLs), port security, and DHCP Server Screening for increased protection.

Loopback detection
Used to detect loops created by a specific port and automatically shuts down the affected port.

The cable diagnostic feature
Rapidly discovers errors and determines the cable quality, allowing hassle-free diagnostics and maintenance.

D-Link DBS-2000 SERIES Advanced Layer 2 features and security.

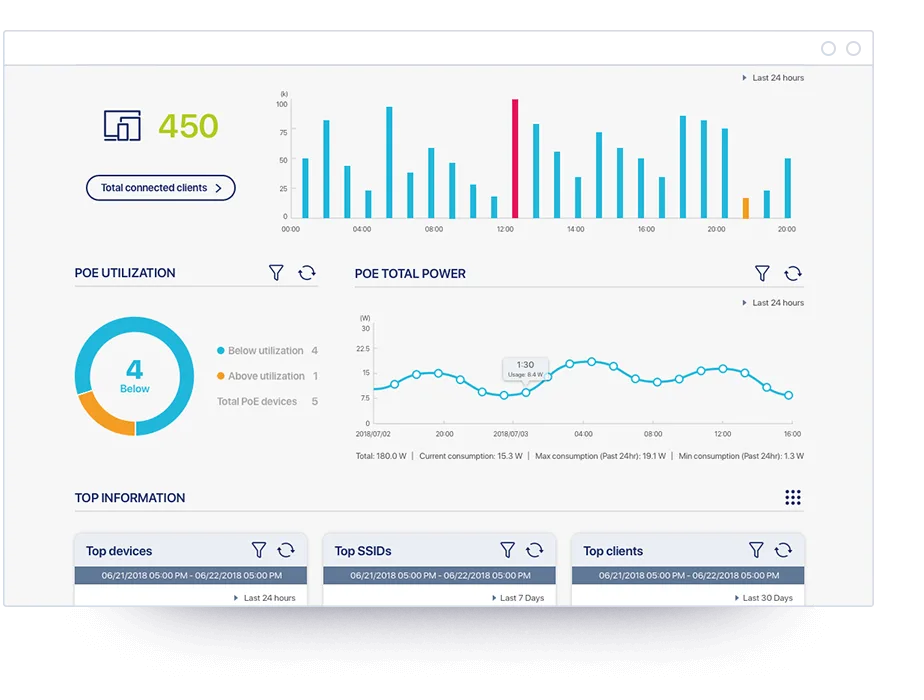

Monitoring and alerts that keep you ahead.

Through the Nuclias dashboard, you can easily view your switches'¹ real-time port traffic and connection status. And for switches that support PoE, you can monitor real-time power consumption statistics. You can also remotely view real-time information about the network and get an instant overview of key network statistics such as performance, connectivity, and network usage.

It’s easy to customise and filter the dashboard to display only the information that suits you. Be ahead of any problems with instant push notifications and alerts to swiftly identify and resolve problems.

D-Link DBS-2000 SERIES Monitoring and alerts that keep you ahead.

Dedicated port-level security.

To ensure the safety and reliability of all sensitive traffic, all switches come with Port Security, and data to and from the cloud is separated from regular data using an SSL encrypted out-of-band connection.

Nuclias Cloud also provides the ability to control user access. You can configure external RADIUS servers to set up IP and MAC-based access control lists to authenticate and authorise clients, to create a safer and trusted network environment.

D-Link DBS-2000 SERIES Dedicated port-level security.

Find out how D-Link’s Nuclias cloud solution can help your business.

Nuclias makes deploying a network simple. Nuclias devices are automatically configured by the Nuclias Cloud, and instant alerts let you know what’s happening through the browser or the Nuclias app.

D-Link DBS-2000 SERIES Find out how D-Link’s Nuclias cloud solution can help your business.

Budget-friendly renewals

All Nuclias products include a 1-Year license. And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.

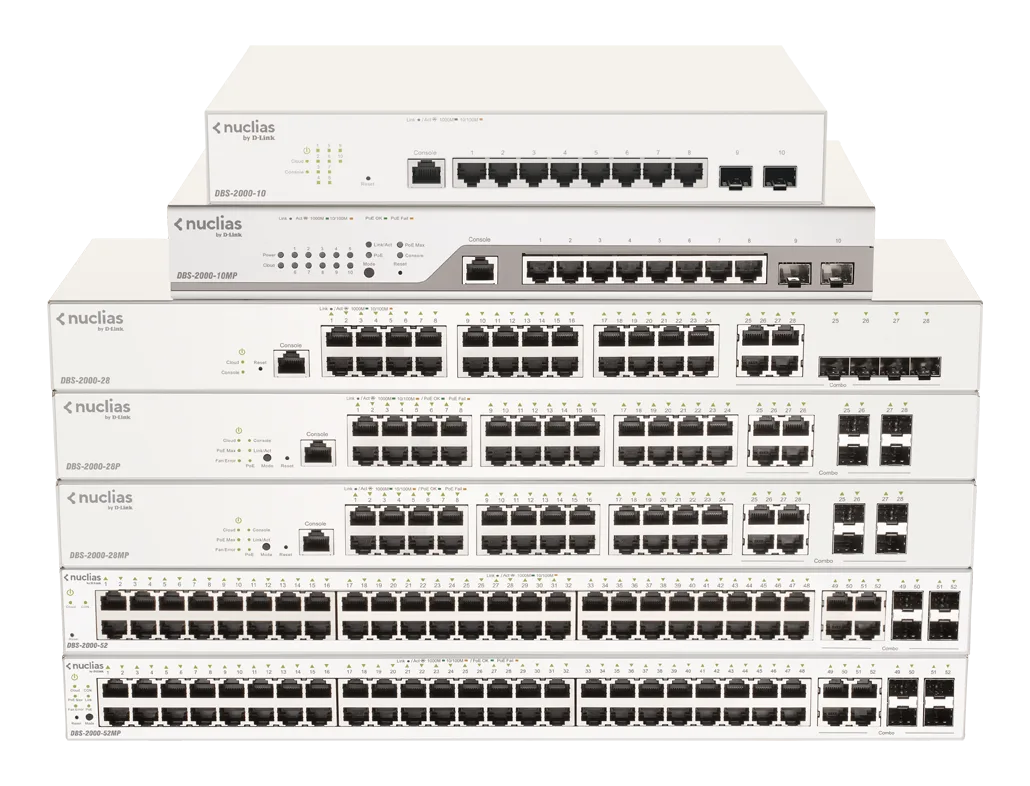

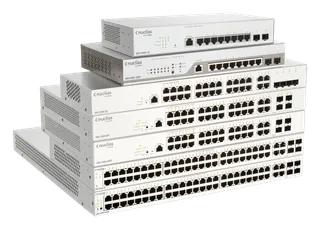

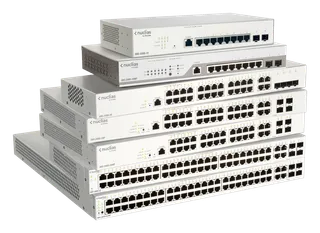

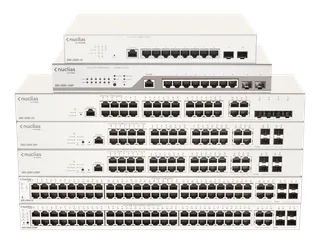

DBS-2000 Nuclias Cloud-Managed switch series

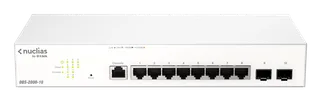

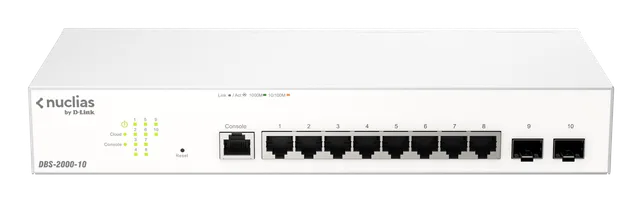

D-Link DBS-2000-10 front view

DBS-2000-10

  • 8 x 10/100/1000BASE-T
  • 2 x 100/1000 Mbps SFP
  • 20 Gbps switching capacity

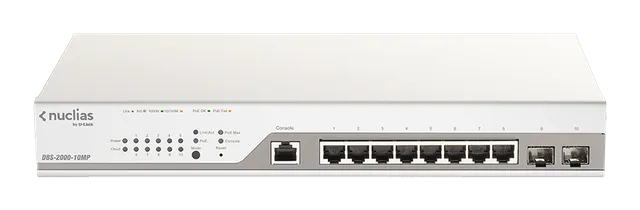

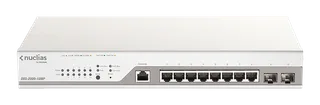

D-Link DBS-2000-10MP front view

DBS-2000-10MP

  • 8 x 10/100/1000BASE-T PoE
  • 2 x 100/1000 Mbps SFP
  • 20 Gbps switching capacity
  • 130 W PoE Power Budget

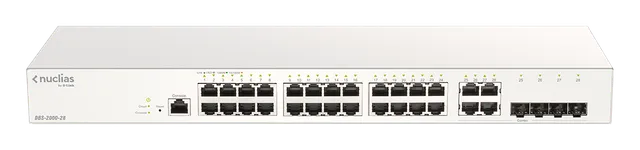

D-Link DBS-2000-28 front view

DBS-2000-28

  • 24 x 10/100/1000BASE-T
  • 4 x 1000 Mbps combo
  • 56 Gbps switching capacity
D-Link DBS-2000-28P front view

DBS-2000-28P

  • 24 x 10/100/1000BASE-T PoE
  • 4 x 1000 Mbps combo
  • 56 Gbps switching capacity
  • 193 W PoE Power Budget

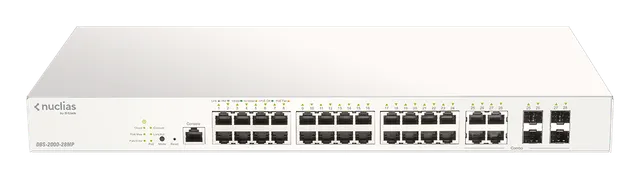

D-Link DBS-2000-28MP front view

DBS-2000-28MP

  • 24 x 10/100/1000BASE-T PoE
  • 4 x 1000 Mbps combo
  • 56 Gbps switching capacity
  • 370 W PoE Power Budget

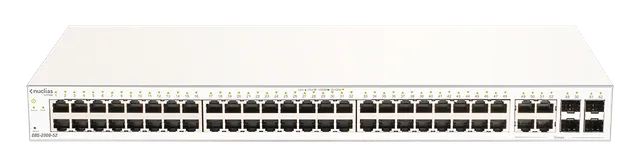

D-Link DBS-2000-52 front view

DBS-2000-52

  • 48 x 10/100/1000BASE-T
  • 4 x 1000 Mbps combo
  • 104 Gbps switching capacity

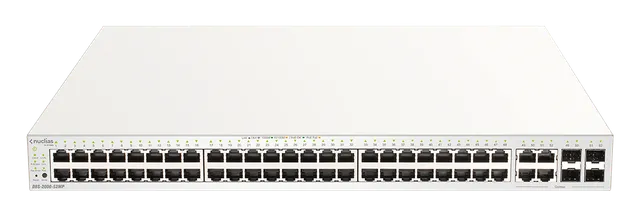

D-Link DBS-2000-52MP front view

DBS-2000-52MP

  • 48 x 10/100/1000BASE-T PoE
  • 4 x 1000 Mbps combo
  • 104 Gbps switching capacity
  • 370 W PoE Power Budget

DBS-2000 SERIES

Specifications

Technical specifications for DBS-2000 SERIES
Management platformCloud based
LayerLayer 2
Main type of ports1000BASE-T Gigabit Ethernet
802.3az Energy-Efficient Ethernet supportSupported
Form factorRackmountable
Jumbo frameSupported
Cable diagnosticsSupported
Link aggregation802.3ad
VLAN group (max static)256
VLAN typePort-based
Advanced VLANVoice VLAN
ACL typeIngress
Encryption protocol supportedSSL (v1/v2/v3)
802.1X access controlSupported
Captive portalSupported

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
