The D-Link DES-F1016P-E is a 16 port 100Mbps switch with 16 10/100 Mbps PoE ports, 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
DES-F1016P-E
16-Port 10/100 Long Range PoE+ Surveillance Switch
- 16 10/100Mbps Fast Ethernet ports
- 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports
- 150 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3z 1000 BASE-X (fiber-optic)
- IEEE 802.3af Power over Ethernet
Overview
Power Over Ethernet
The DES-F1016P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocols. A total PoE budget of 150 watts allows users to attach an IEEE 802.3af-compliant device to the DES-F1016P-E without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves.
Switch Working Mode

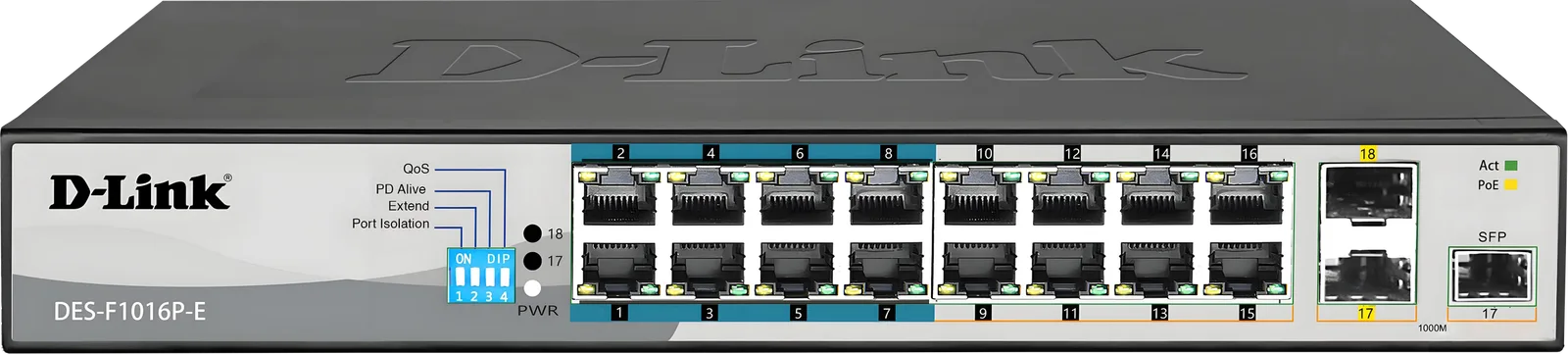

Using a DIP switch, the working mode of DES-F1016P-E can be changed.
- Extend Mode: 1-8 ports support 250 meters long distance power supply (should use Cat5e or Cat6 cable)
- Port Isolation Mode: Isolating ports 1-16 from each other can effectively suppress network storms and improve network performance.
- QoS Mode: Customize application priority to improve network sensitivity. For example, with video priority, monitoring transmission is more smooth.
- PD Alive Mode: Automatically detect the power receiving port, find the dead device, power off and restart the devices.
DES-F1016P-E
Specifications
| Network Interface | 16 10/100Mbps PoE RJ45 ports (port 1~port 16) 2 Gigabit Ports with 1 Combo RJ45/SFP Port (port 17) |
|---|---|
| Transmission Rate | 10/100Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation Network interface: 10BASE-T or 100BASE-TX, 1000BASE-T Ethernet RJ-45 port |
| Protocols and Standards | IEEE802.3 10BASE-T IEEE 802.3u 100BASE-TX ANSI/IEEE 802.3 NWay auto-negotiation IEEE802.3ab 1000BASE-T IEEE802.3z 1000 BASE-X IEEE802.3x Flow Control IEEE 802.3af/at standard |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding | 5.36Mpps |
| Transmission Method | Store-and-forward |
| LED Indicators | Power, LINK/ACT, PoE |
| PoE Budget | 150W |
| Power | 100-240VAC, 50-60Hz |
| Lightning protection | 6KV |
| Physical Characteristics | Dimensions (LxWxH): 285 x 180 x 44mm Weight: 2.1kg |
| Environmental Parameter | Operating Temperature: 0 to 40 °C (32 to 104 °F) Operating Humidity: 10% to 90% non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
