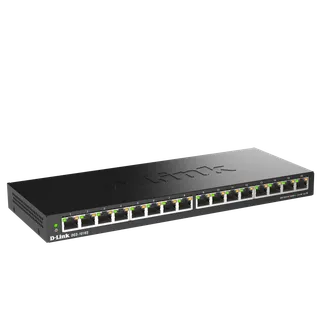

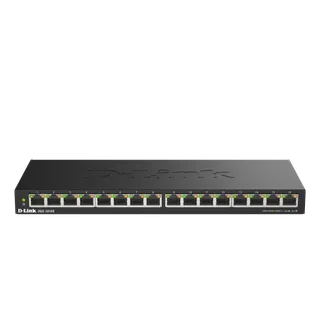

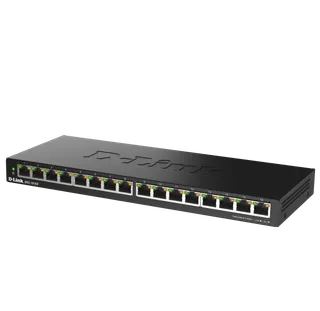

DGS-1016S
Overview
Allowing the switch to be placed on the desktop or mounted on the wall

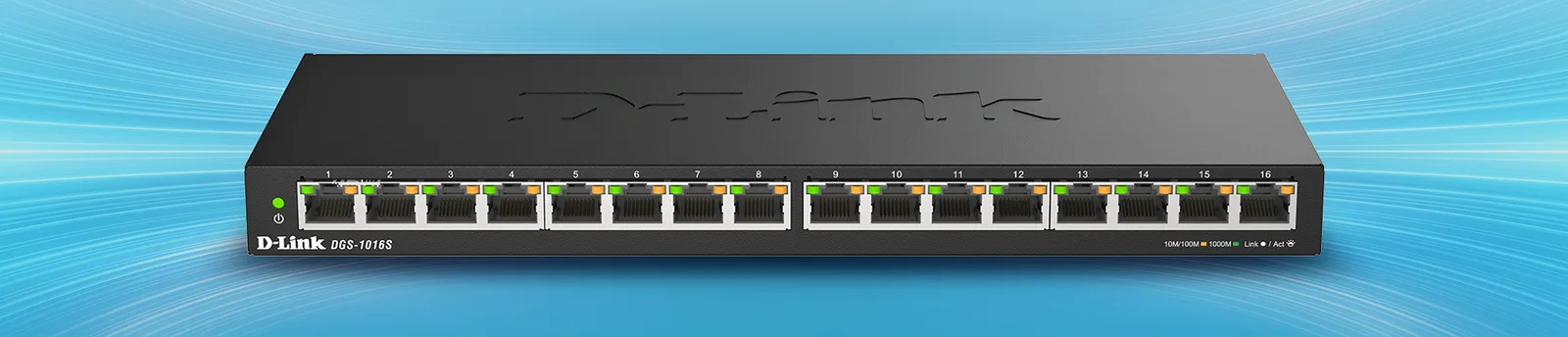

Connect to up to 16 devices for fast file transfers and smooth media streaming
Fanless design boosts reliability, perfect for noise-sensitive environments
Integrated energy-saving technology to reduce power usage automatically
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.
Gigabit connectivity with support for 802.1p Quality of Service means faster uploads and downloads without video streaming or voice calls being interrupted.

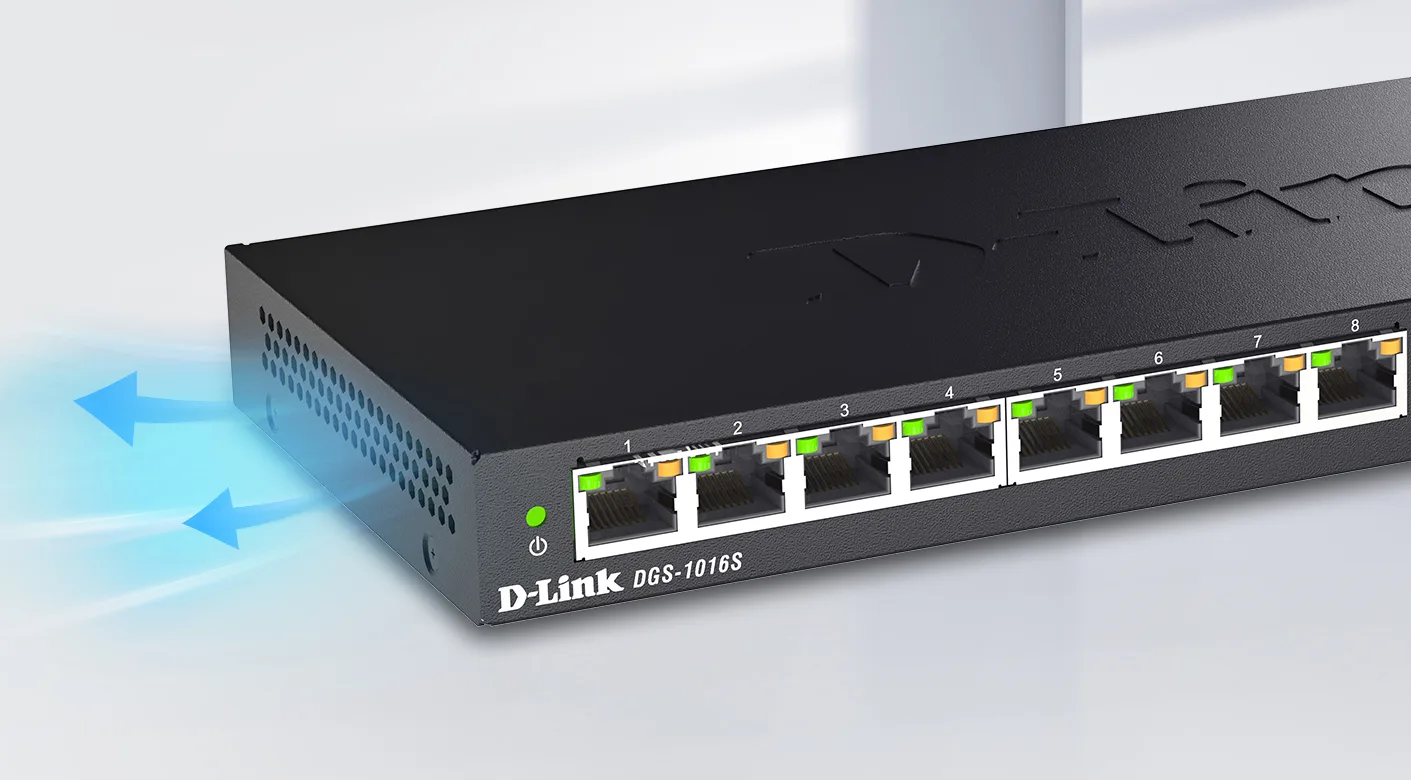

Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.
Visual Cable Diagnostics

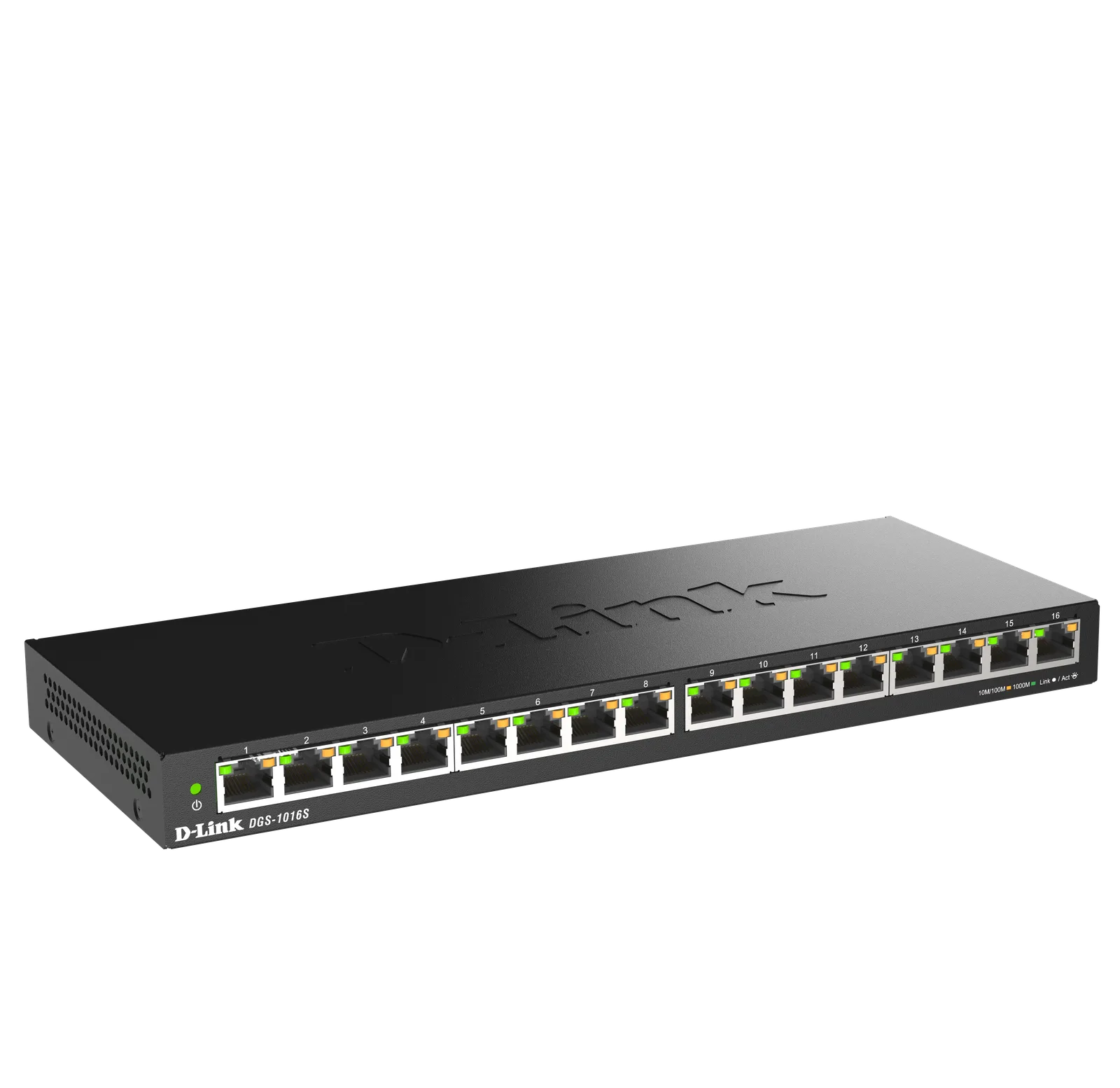

LEDs on each port allow you to quickly see when something is wrong with the connection.
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
DGS-1016S
| Interfaces | 16 x 10/100/1000 Mbps LAN ports |
|---|---|
| Switch Capacity | 32 Gbps |
| Advanced Features | Auto-MDI/MDIX crossover for all ports Full/half-duplex for Ethernet/Fast Ethernet speeds Supports 9,216 byte jumbo frames Wire-speed reception and transmission Auto-negotiation for each port Quality of Service (8 queues, strict mode) Back pressure at half-duplex operation |
| Transmission Method | Store-and-Forward |
| MAC Address Table Size | 8K entries |
| Maximum Forwarding Rate | 23.808 Mpps |
| Packet Buffer RAM | 512 KB per device |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all ports |
| Dimensions | 280 x 110 x 25 mm |
| Weight | 0.742 kg |

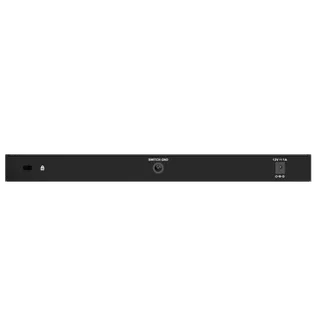

| Power Input | 12 V / 1 A |
| Temperature | Operating: 0 to 40 °C (32 to 104 °F) |
| MTBF | 647,567.92 hours |
| Power Consumption | Maximum: 9.645 W |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
