The DGS-F1005A 5-Port 10/100/1000 Mbps Unmanaged Switch is ideally suited for Small Office Home Office (SOHO), Small Medium Business (SMB), and Small Medium Enterprise (SME) environments. With a durable design, silent operation, and plug-and-play functionality, the DGS-F1005A switch can be easily set up and be placed in almost any location where network connectivity is required. Support for IEEE 802.3az Energy-Efficient Ethernet (EEE), Layer 2 Quality of Service (QoS), and Gigabit Ethernet connection speeds provides advanced features in a compact package.
DGS-F1005A
5 Port Gigabit Desktop Switch
- Five Gigabit LAN ports for high-speed wired connections
- Plug-and-play installation for convenience
- L2 multicast functions including IGMP snooping optimize multicast data streams for bandwidth intense applications like IPTV.
- Reduces power on a port when no link is detected
- Adjusts power on a port by detecting the length of the connected cable
- Energy Star compliant
- RoHS compliant
Overview
Integrated Networking
The DGS-F1005A switch uses auto-sensing 10/100/1000 Mbps ports, allowing a small workgroup to flexibly connect Ethernet, Fast Ethernet, and Gigabit devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX at full and half-duplex, and 1000BASE-T at full duplex, allowing you to get the maximum speed possible for each device connected to your network.
Simplified Installation

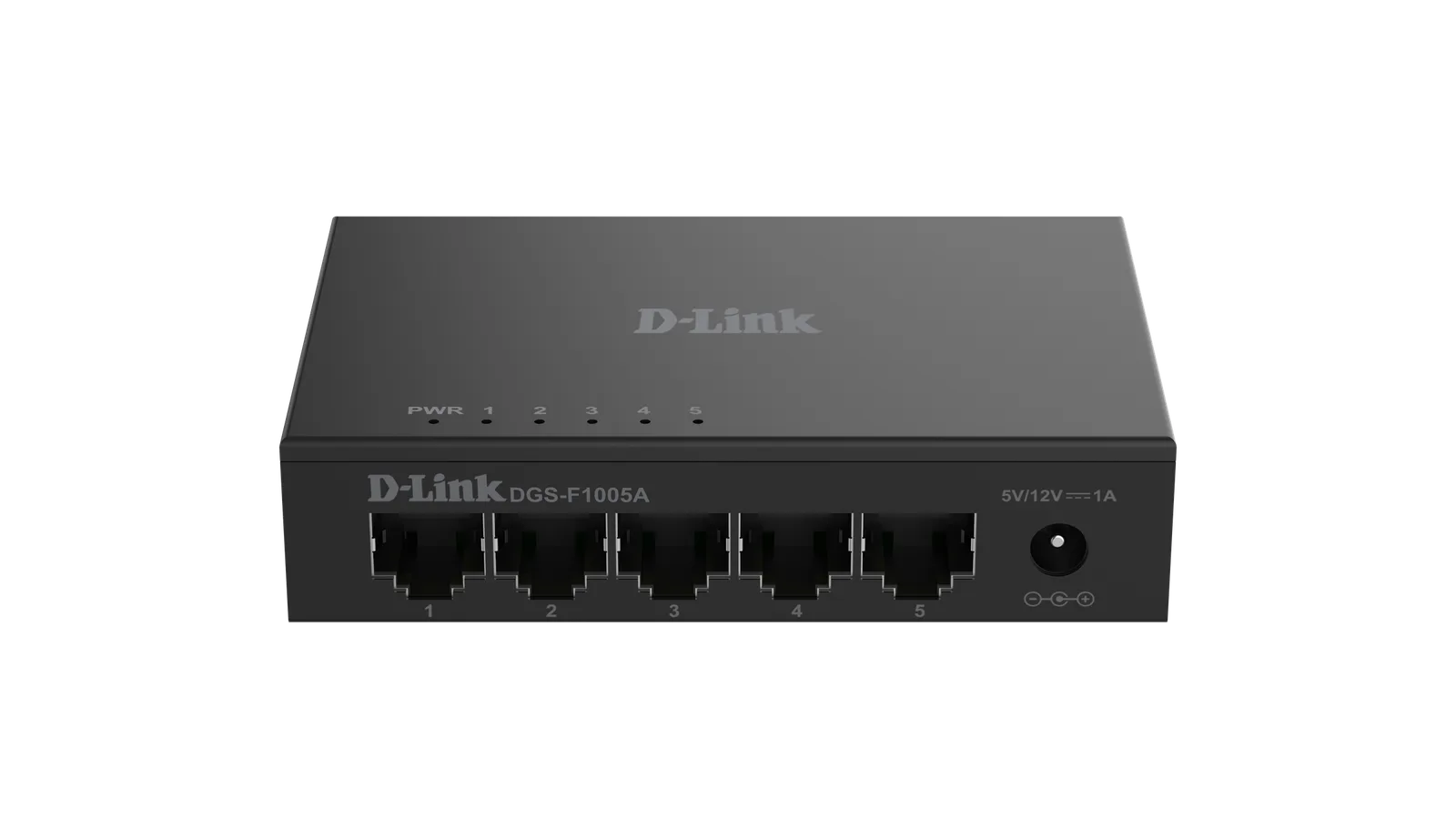

All of the ports on the DGS-F1005A switch support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged in directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DGS-F1005A switch features multiple front, easy-to-access Ethernet ports with two color LED indicators per port to easily distinguish link status.
Green Technology
The DGS-F1005A switch features green technology, such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy-Efficient Ethernet reduces power consumption of the switch when network utilization is low, reducing the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.
Traffic Management
The DGS-F1005A switch includes traffic management features, such as IEEE 802.1p Quality of Service (QoS) and IEEE 802.3x Flow Control. The 802.1p QoS feature allows traffic to be classified in 8 priority levels, allowing different types of traffic to be prioritized, depending on their importance. Flow Control signals to clients when the switch's input buffer is full, helping to minimize dropped packets and providing a more reliable connection for all of your connected devices.
DGS-F1005A
Specifications
| Device Interfaces | 5 x 10/100/1000 Mbps RJ45 port |
|---|---|
| Standards | IEEE 802.3 IEEE 802.1ab IEEE 802.3u IEEE 802.3ab IEEE 802.3x |
| Network Media (cable) | 10BASE-T: Cat3, 4, 5 unshielded twisted pair (≤100m) 100BASE-TX: Cat 5, 5e and above unshielded twisted pair (≤100m) 1000BASE-T: Cat 5e, category 6 and above unshielded twisted pair (≤100m) |
| MAC Address Table | 2K, Auto-learning, Auto-update |
| Jumbo Frame | 16KBytes |
| Packet Buffer | 1Mbit |
| Transfer Mode | Store-and-forward |
| Switching Capacity | 10Gbps |
| Packet Forward Speed | 7.44Mpps |
| Indicators | PWR, LNK/ACT |
| Dimensions (L x W x H) | 100 x 63.7 x 24 mm |
| Power | 5V/12V 1A |
| Temperature | Operating: 0 to 45 °C Storage: -40 to 70 °C |
| Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing |
| Lightning Protection Grade | Common mode ±4KV, Differential mode ±1KV |
| Electrostatic Standard | Contact ±6KV, Air ±8KV |
| MTBF | >50000 hours |
| Certifications | CE |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
