The D-Link DGS-F1006P-E is a 6 port Gigabit Switch with 4 Gigabit PoE ports and 2 Gigabit uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
DGS-F1006P-E
6-Port Gigabit Long Range PoE+ Surveillance Switch
- 4 Gigabit PoE ports
- 2 Gigabit uplink ports
- 60 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet
Overview
Power Over Ethernet
The DGS-F1006P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocols. A total PoE budget of 60 watts allows users to attach an IEEE 802.3af/at-compliant device to the DGS-F1006P-E without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves.
Switch Working Mode

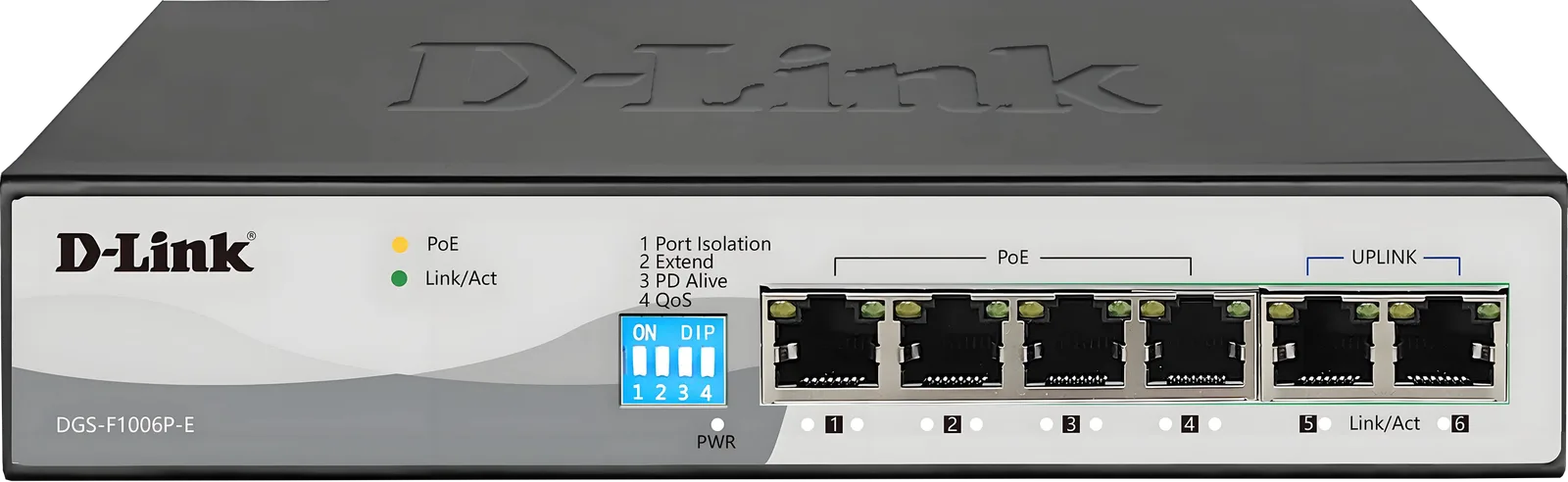

Using a DIP switch, the working mode of DGS-F1006P-E can be changed.
- Extend Mode: 1-4 ports support 250 meters long distance power supply (should use Cat5e or Cat6 cable)
- Port Isolation Mode: Isolating ports 1-4 from each other can effectively suppress network storms and improve network performance.
- QoS Mode: Customize application priority to improve network sensitivity. For example, with video priority, monitoring transmission is more smooth.
- PD Alive Mode: Automatically detect the power receiving port, find the dead device, power off and restart the devices.
DGS-F1006P-E
Specifications
| Network Interface | 4 Gigabit PoE RJ45 ports (port 1~port 4) 2 Gigabit uplink RJ45 ports (port 5~port 6) |
|---|---|
| Transmission Rate | 10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation Network interface: 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet RJ-45 port |
| Protocols and Standards | IEEE802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T ANSI/IEEE 802.3 NWay auto-negotiation IEEE802.3x Flow Control IEEE 802.3af/at standard |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 10M: 14,800pps 100M: 148,800pps 1000M: 1,488,000pps |
| LED's Indicator | Power LINK/ACT, PoE |
| PoE Budget | 60W |
| Power | 100~240VAC, 50/60Hz |
| Lightning protection | 6KV |
| Physical Characteristics | Dimensions (LxHxW): 190mm x 40mm x 131mm Weight: 0.9kg |
| Environmental Parameter | Operating Temperature: 0 to 40 °C (32 to 104 °F) Operating Humidity: 10% to 90% non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
