8-port industrial Gigabit PoE switch that provides 8 Gigabit PoE ports, 2 Gigabit optical ports, plug and play.

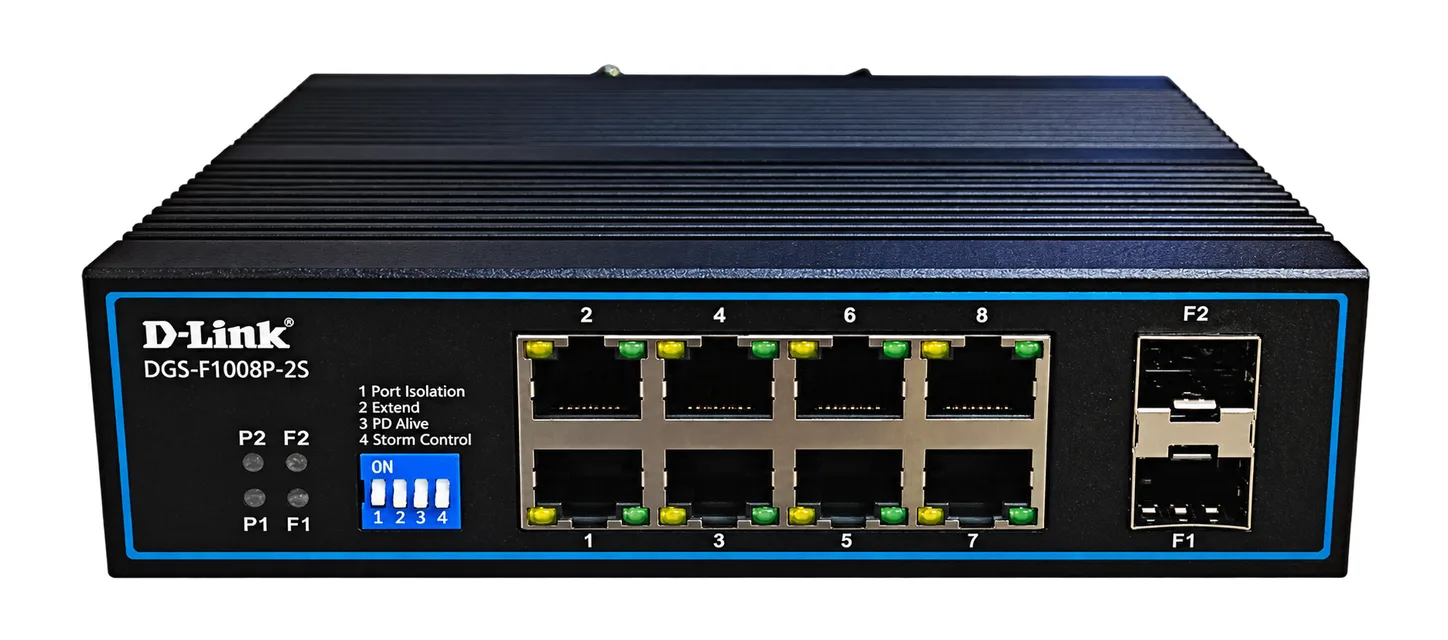

DGS-F1008P-2S
8-Port Unmanaged Industrial Gigabit PoE Switch
- 8 Gigabit PoE ports and 2 Gigabit optical ports
- Plug and play
- Max 30 W each port, suitable for IEEE802.3af/at compatible powered devices (PDs)
- IP40 grade protection, corrugated high strength metal housing
- DIN rail mounting
- Working temperature: -40 to 75 °C
- Supports dual DC power backup, built-in over current protection
Overview
Ordering Information
Available without a power supply, or with a 120W DIN-rail power supply.
DGS-F1008P-2S
Specifications
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-T IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3af/at |
|---|---|
| MAC address table | 8K |
| Port Cache | 2Mbit |
| 100 Mbps forwarding speed | 148810pps |
| Gigabit forwarding speed | 1488100pps |
| 100M maximum filter speed | 148810pps |
| Gigabit maximum filtration speed | 1488100pps |
| Transmission method | Store and forward |
| Backplane bandwidth | 20Gbps |
| Switching Delay | <5us |
| Optical port | 2 1000Base-X (SFP) |
| RJ45 port | 8 10/100/1000Base-Tx RJ45 ports |
| Interface indicator | Link&ACT(1~8/F1~F2) |
| Power indicator | PWR |
| Input voltage | 48V to 56VDC |
| Input method | plug-in type 4-core 5.08mm pitch terminal block |
| Power backup | Supports dual DC power backup, built-in over current protection |
| Anti-reverse connection | Power supply supports anti-reverse connection |
| No-load power | 6W@48VDC |
| Full load power | 96W@48VDC (including PoE output) |
| Housing | IP40 grade protection, corrugated high strength metal housing |
| Installation | DIN rail mounting |
| Dimensions (length x width x height) | 150*127*40mm |
| Weight | 0.8kg |
| EMI | FCC CFR47 Part 15, EN55022/CISPR22, Class A |
| IEC61000-4-2 (ESD) | ±8kV (contact), ±15kV (air) |
| IEC61000-4-3 (RS) | 10V/m (80MHz-2GHz) |
| IEC61000-4-4 (EFT) | Power Port: ±4kV; Data Port: ±2kV |
| IEC61000-4-5 (Surge) | Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV |
| EC61000-4-16 (Common mode conduction) | 30V (cont.), 300V (1s) |
| IEC60068-2-6 | Vibration |
| IEC60068-2-27 | Shock |
| IEC60068-2-32 | Free Fall |
| IEC61000-4-6 (CS) | 3V (10kHz-150kHz); 10V (150kHz-80MHz) |
| Working temperature | -40 to 75 °C |
| Storage temperature | -40 to 75 °C |
| Relative humidity | 5% to 95% (no condensation) |
| Certification | CE, FCC |
| Mean time between failures | 360,000 hrs |
| Warranty | 3 years |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
