The DGS-F1016 10/100/1000 Mbps unmanaged switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

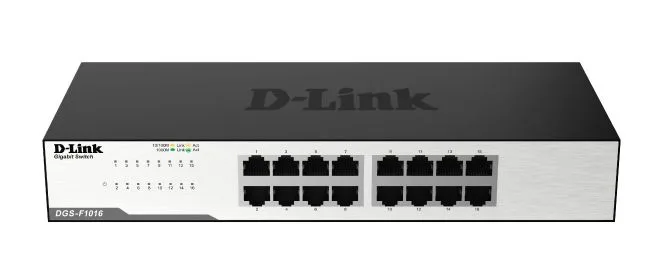

DGS-F1016
16-Port 10/100/1000 Mbps Unmanaged Switch
- Sixteen Gigabit LAN ports for high-speed wired connections
- Plug-and-play installation for convenience
- Reduces power to a port when there is no traffic
- Optimizes power usage for a port for the length of cable connected to it
- Energy-efficient design reduces heat generated and allows the switch to run silently
Overview
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, this switch is ideal for quick file transfers, online gaming and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you're ready to go.
Conserve Energy
The DGS-F1016 supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DGS-F1016 is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Smooth Streaming
This switch supports QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
DGS-F1016
Specifications
| Device Interfaces | 16 x 10/100/1000 Mbps LAN ports |
|---|---|
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Switching Capacity | 32 Gbps |
| Advanced Features | Auto-MDI/MDIX crossover for all ports Secure store-and-forward switching scheme Full/half-duplex for Ethernet/Fast Ethernet speeds Supports 9,216 bytes jumbo frames Back pressure at half-duplex operation Wire-speed reception and transmission Auto-negotiation for each port Quality of Service (8 queues, strict mode) |
| Data Transfer Rates | Ethernet: 10 Mbps (half-duplex) 20 Mbps (full-duplex) Fast Ethernet: 100 Mbps (half-duplex) 200 Mbps (full-duplex) Gigabit Ethernet 2000 Mbps (full-duplex) |
| Transmission Method | Store-and-forward |
| MAC Address Table Size | 8,000 entries |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port |
| RAM Buffer | 512 KB per device |
| LED Indicators | Per port: Link/Activity/Speed Per device: Power |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all ports |
| Dimensions | 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in) |
| Weight | 0.87 kg |
| Power Input | 12 V / 1 A |
| Power Consumption | Standby: 3.7W Maximum: 9.5W |
| Temperature | Operating: 0 to 40 °C (32 to 104 °F) Storage: -40 to 70 °C (-40 to 158 °F) |
| Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing |
| Emissions (EMI) | CE Class A FCC Class A VCCI Class A BSMI CCC |
| Safety | UL CB LVD BSMI CCC |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
