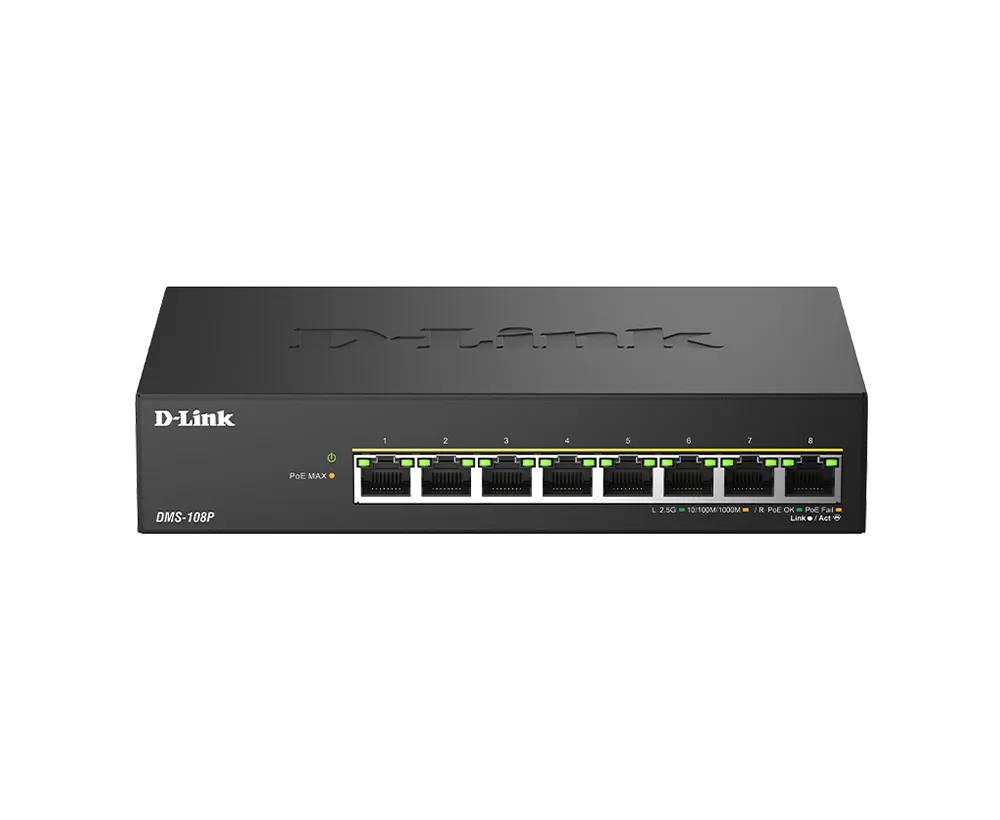

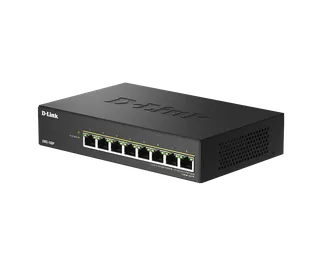

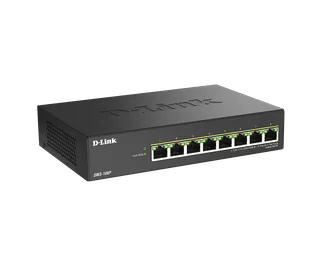

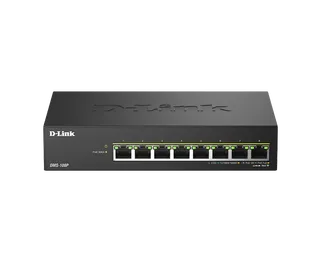

DMS-108P
Overview
No complex configurations required for fast and easy network connectivity
Multi-Gigabit ports for high data rate transmission
230W PoE total budget to power more devices
Up to 90W per port enables high-power devices (PD)
IGMP snooping feature prevents network flooding
Fanless design for a noise-free working environment

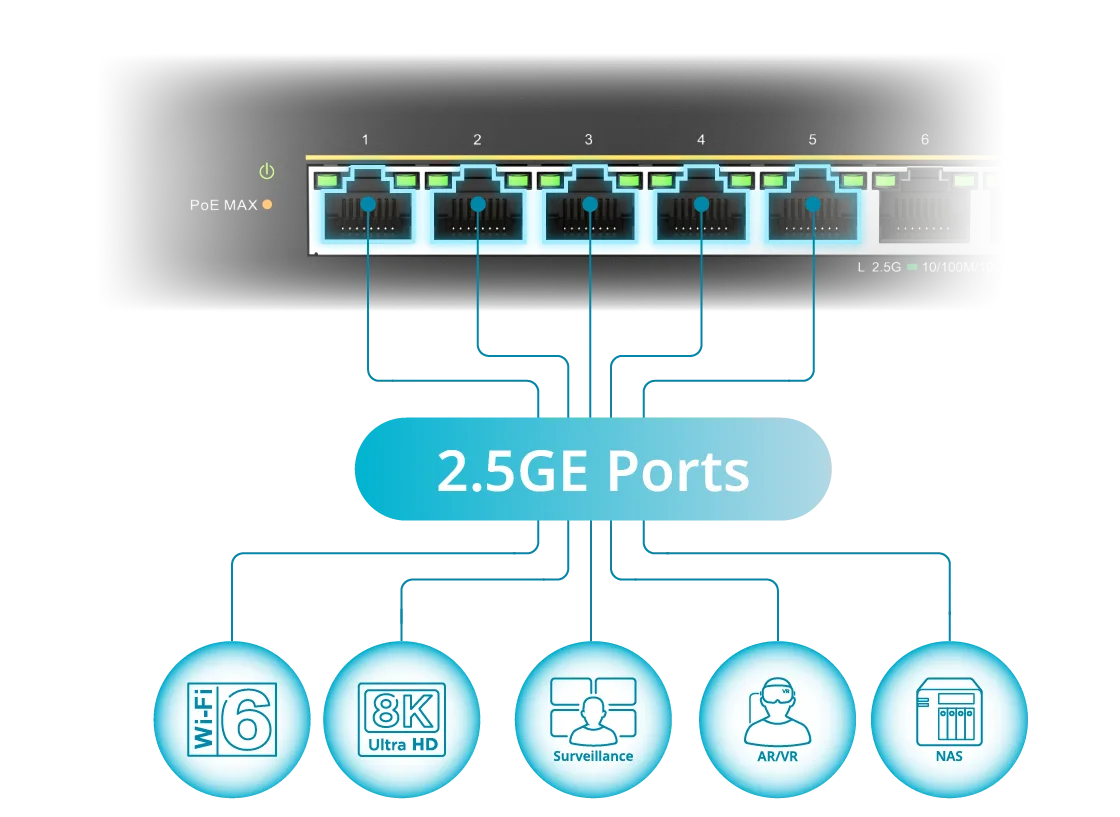

As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

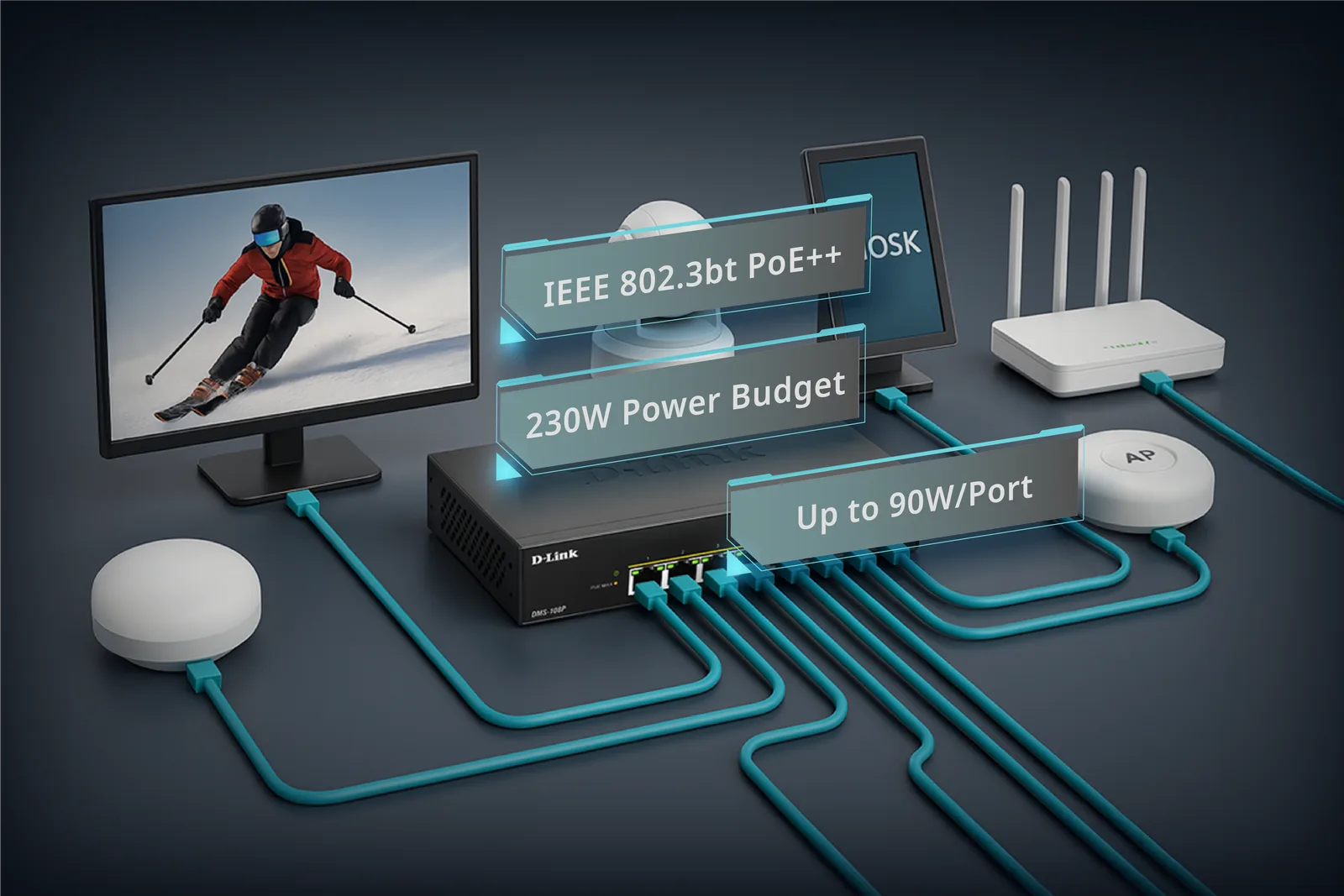

The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.
The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

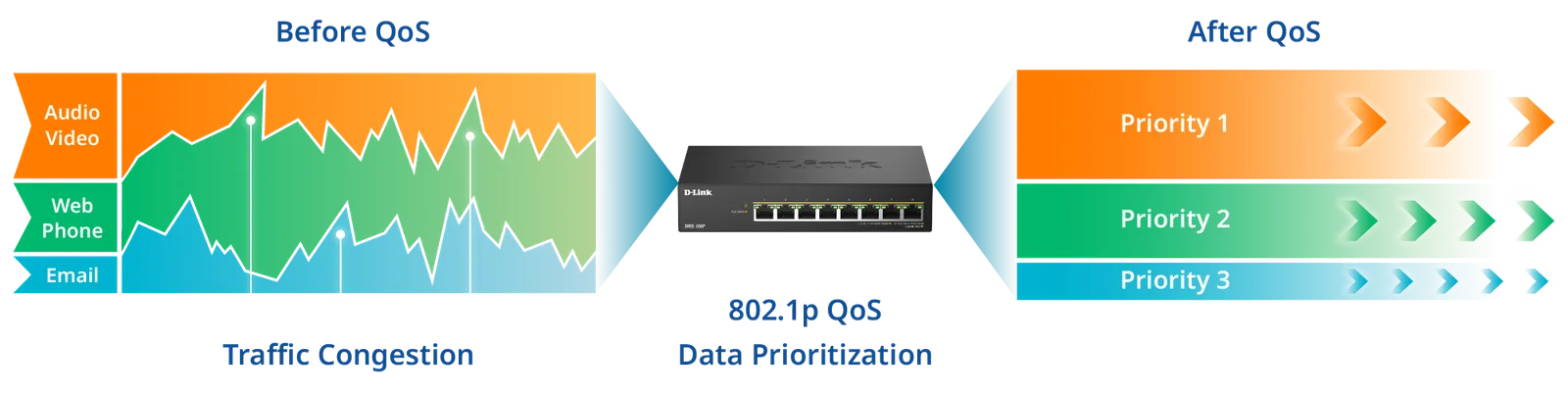

With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

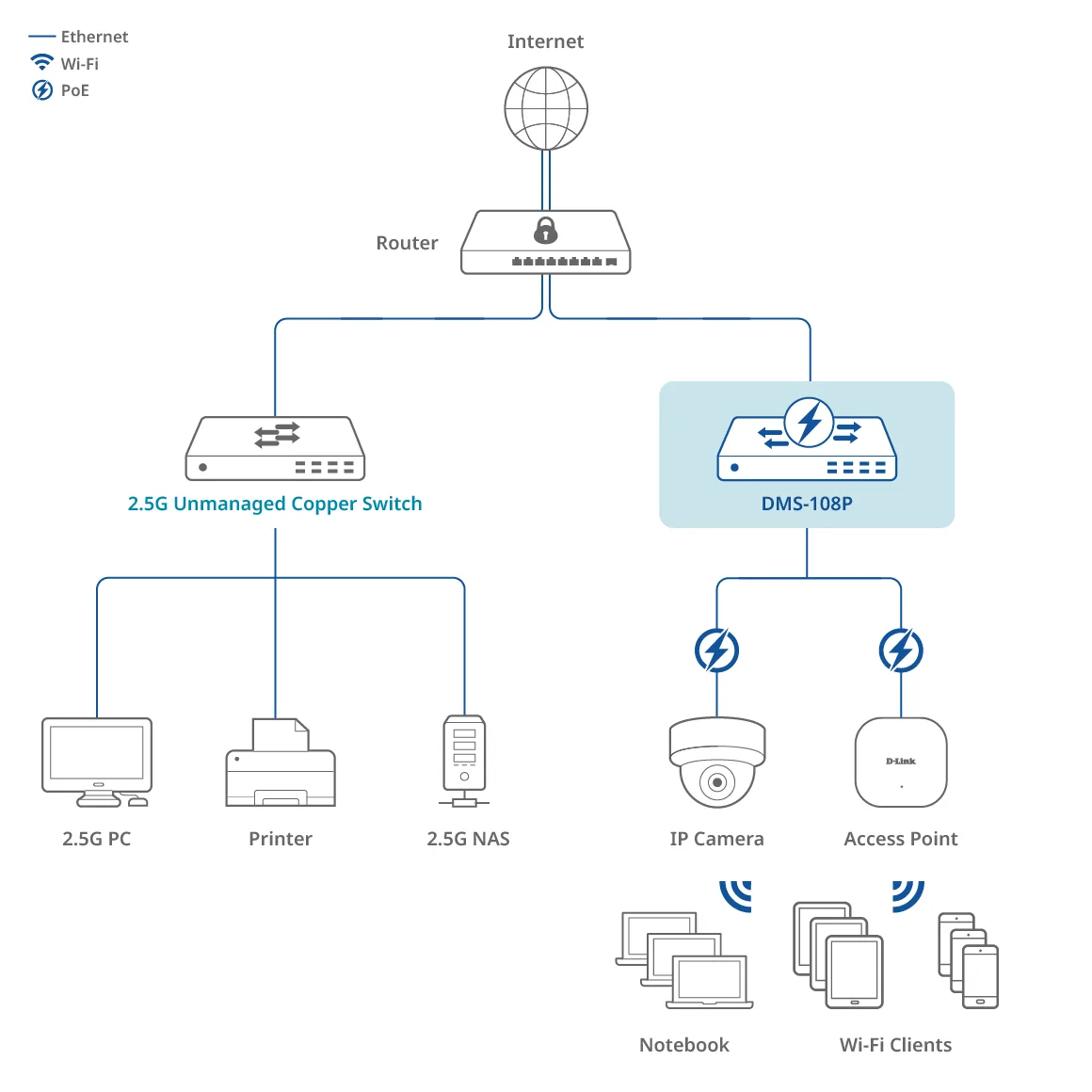

The cost-effective DMS-108P not only delivers plug-and-play 2.5G PoE connectivity for edge powered devices, but also offers performance optimization to help eliminate bottlenecks for applications such as Wi-Fi 6, HD surveillance, 4K/8K streaming, and much more.
Business Router
Access Point
DMS-108P
| Number of 2.5 GBASE-T ports | 8 |
|---|---|
| Switching Capacity | 40 Gbps |
| PoE Standards | 802.3af, 802.3at, 802.3bt |
| PoE Power Budget | 230W |
| PoE Capable Ports | Port 1-8, up to 90W |
| Fanless | Supported |
| D-Link Green | Supported |
| 802.3az EEE | Supported |
| Power Supply Type | External |
| MAC Address | 4K |
| 802.1p QoS | Supported |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
