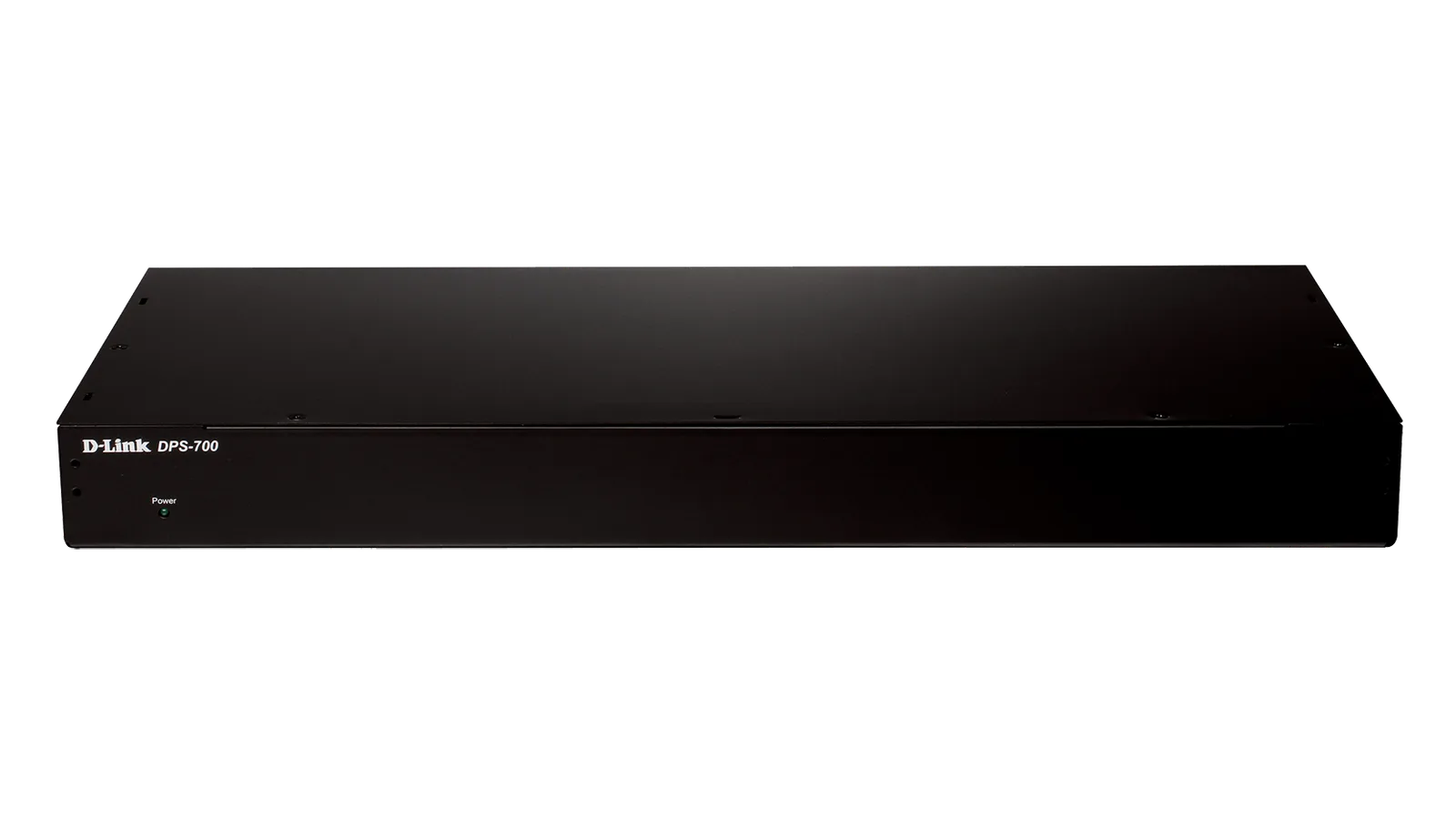

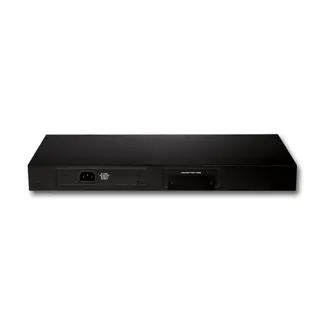

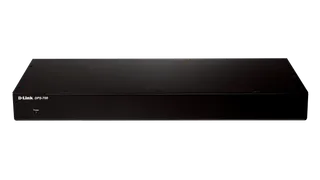

DPS-700
Overview
The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.
DPS-700
| Total Output Power | 589 W |
|---|---|
| Input Voltage Range | 90 to 264 V AC |
| Input Frequency | 47 to 63 Hz |
| Max Input Current | 7.5 A at 115 V AC; 3.7 A at 230 V AC |
| Max Inrush Current | 30 A at 115 V AC; 30 A at 230 V AC |
| Efficiency | 80% |
| Operating Temperature | 0 to 65 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Humidity | 5 to 95% RH |
| MTBF | 624,961 hours |
| Dimensions | 441 x 199 x 44 mm |
| Weight | 3.70 kg |
| Leakage Current | 3.5mA max. |
| Output Voltage | +54VDC +12VDC |
| Over Voltage Protection | Trip point: below 16V for +12V output Auto-recovery mode against short circuit or over load conditions -59V output below -57V will protect itself against short circuit or over load condition |
| LED Status | On: RPS good Off: RPS failed |
| Safety Standards | UL 60950 3rd Edition CSA 22.2 NO.234 EN 60 950 |
| Safety Approvals | UL CUL |
| EMI | FCC Class B CE |
| Compatible Products | DGS-1510-52XMP DGS-1520-28MP DGS-1520-52MP DGS-3120-48PC DGS-3120-24PC DGS-3130-30PS/SI DGS-3130-54PS/SI DGS-3420-28PC DGS-3420-52PC DGS-3620-28PC DGS-3620-52PC DGS-3630-28PC DGS-3630-52PC |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
