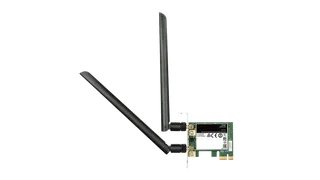

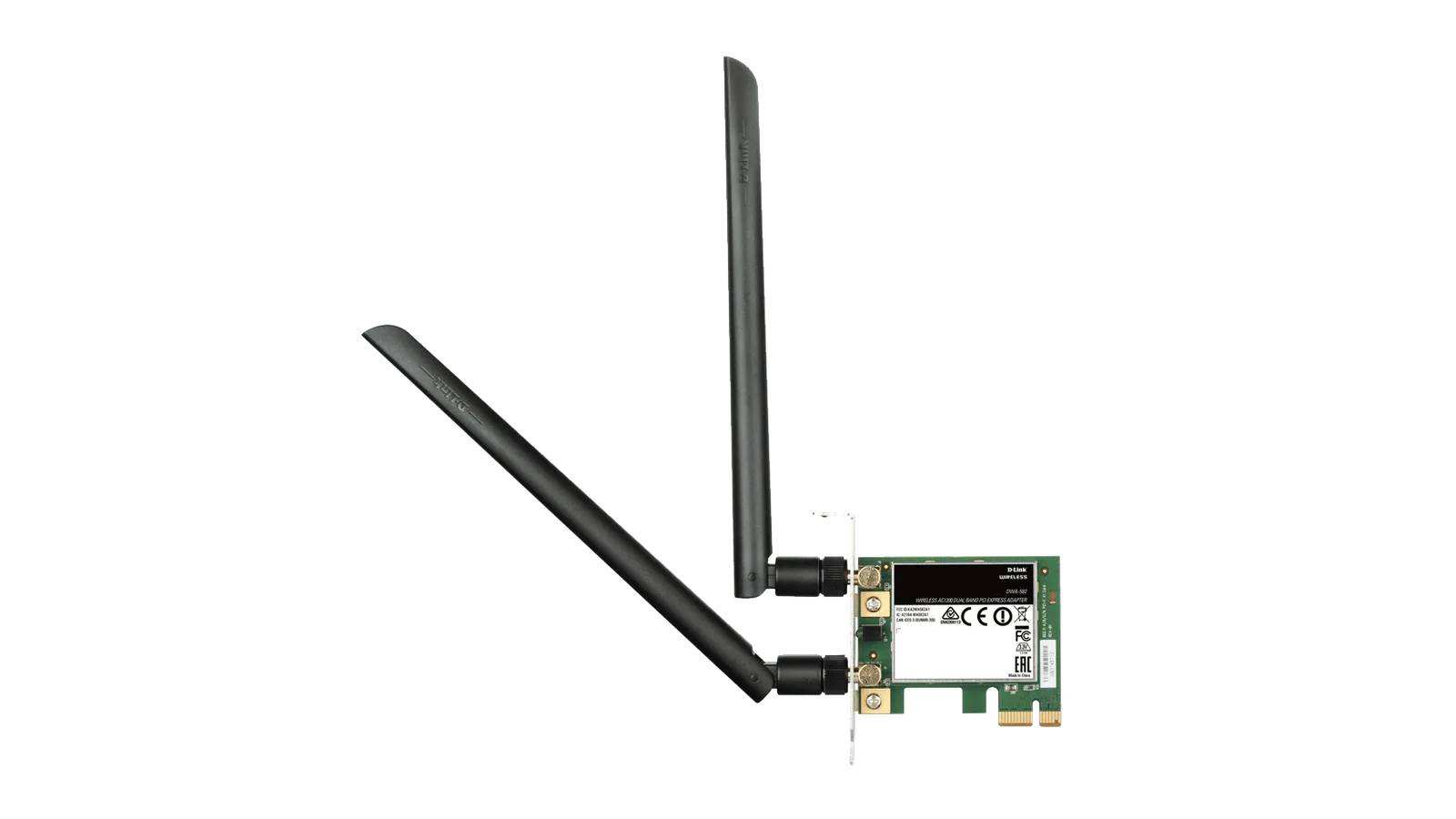

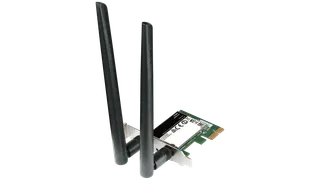

The DWA-582 Wireless AC1300 Dual Band PCI Express Adapter connects your desktop computer to a wireless network and provides a high-speed transmission. Once connected to your protected wireless network with the Internet access, you can enjoy browsing and chatting with your friends online.
DWA-582
Wireless AC1300 Dual Band PCI Express Adapter
- Wireless AC technology delivers maximum performance and reliability
- Operating in one of two frequency bands offers flexibility and versatility depending on your connectivity needs
- Connect to wireless networks using the latest encryption methods
- Supports WPA/WPA2 encryption
- Use Wi-Fi Protected Setup (WPS) to establish a connection easily with the press of a button in the connection utility
- Compatible with any computer with a PCI Express slot
- Internal installation conserves space, and stays out of your way
- Superior performance over the legacy PCI interface
Overview
Better Speeds, Better Coverage
The DWA-582 Wireless Adapter lets you connect to your wireless network with faster speeds and provides stable operation over greater distances in comparison with 802.11n dual band adapters. The DWA-582 supports operating in one of two frequency bands (2.4 GHz or 5 GHz) and provides maximum wireless speed up to 400 Mbps in the 2.4 GHz band and up to 867 Mbps in the 5 GHz band. While operating in the 5 GHz band, the DWA-582 allows you to reduce the impact of interference from other wireless networks, improve throughput and therefore increase the speed of streaming data, online games and VoIP calls.
The Benefits of PCI Express
PCI Express provides a high-bandwidth connection with superior performance over the legacy PCI interface. The PCI Express X1 interface allows you to connect the DWA-582 to any PCIe slot in your computer, whether it is an x1, x4, x8, or x16 slot. The internal PCIe installation stays out of your way by fitting nicely in your computer case, keeping the antennas safely tucked away at the back.
Get Connected and Stay Connected
The DWA-582 is designed for use in bigger homes and for users that demand higher networking performance. Maximize your wireless performance by connecting this adapter to a Wireless AC router and stay connected from virtually anywhere in your home. The DWA-582 is also backward compatible with 802.11n/g/b/a technology, allowing you to connect to your older devices.
Robust Security Options
The DWA-582 supports WPA2 encryption that provides a protected wireless network connection and protects transmitted data. Wi-Fi Protected Setup (WPS) support greatly facilitates the connection process, allowing you to set up a connection easily with the touch of a button in the connection utility.
DWA-582
Specifications
| Interfaces | PCI Express (PCIe) |
|---|---|
| Installation Slot | PCI Express x1/x4/x8/x16 |
| LEDs | Status LED |
| Antenna | Two 5 dBi detachable antennas |
| Advanced Features | Advanced Quality of Service (QoS); WMM |
| Operating System | Windows 7/8/10 |
| Standards | IEEE 802.11a/b/g/n/ac |
| Frequency Range | 802.11b/g/n: 2.4 GHz to 2.4835 GHz; 802.11a/n/ac: 5.15 GHz to 5.35 GHz, 5.725 GHz to 5.825 GHz¹ |
| Wireless Security | Wi-Fi Protected Setup; 64/128-bit WEP; WPA/WPA2 |
| Wireless Speed² | IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps; IEEE 802.11b: 1, 2, 5.5 and 11 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps; IEEE 802.11n: up to 400 Mbps; IEEE 802.11ac: up to 867 Mbps |
| Dimensions (L x W x H) | 65 x 44.5 x 1.6 mm (PCB only) |
| Temperature | Operating: 0 to 40°C; Storage: -20 to 70°C |
| Humidity | Operating: 10% to 90% non-condensing; Storage: 5% to 90% non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
