F500-EN8 with high performance, high reliability, high density, high scalability, is an affordable high-level disk enclosure developed especially for video surveillance.

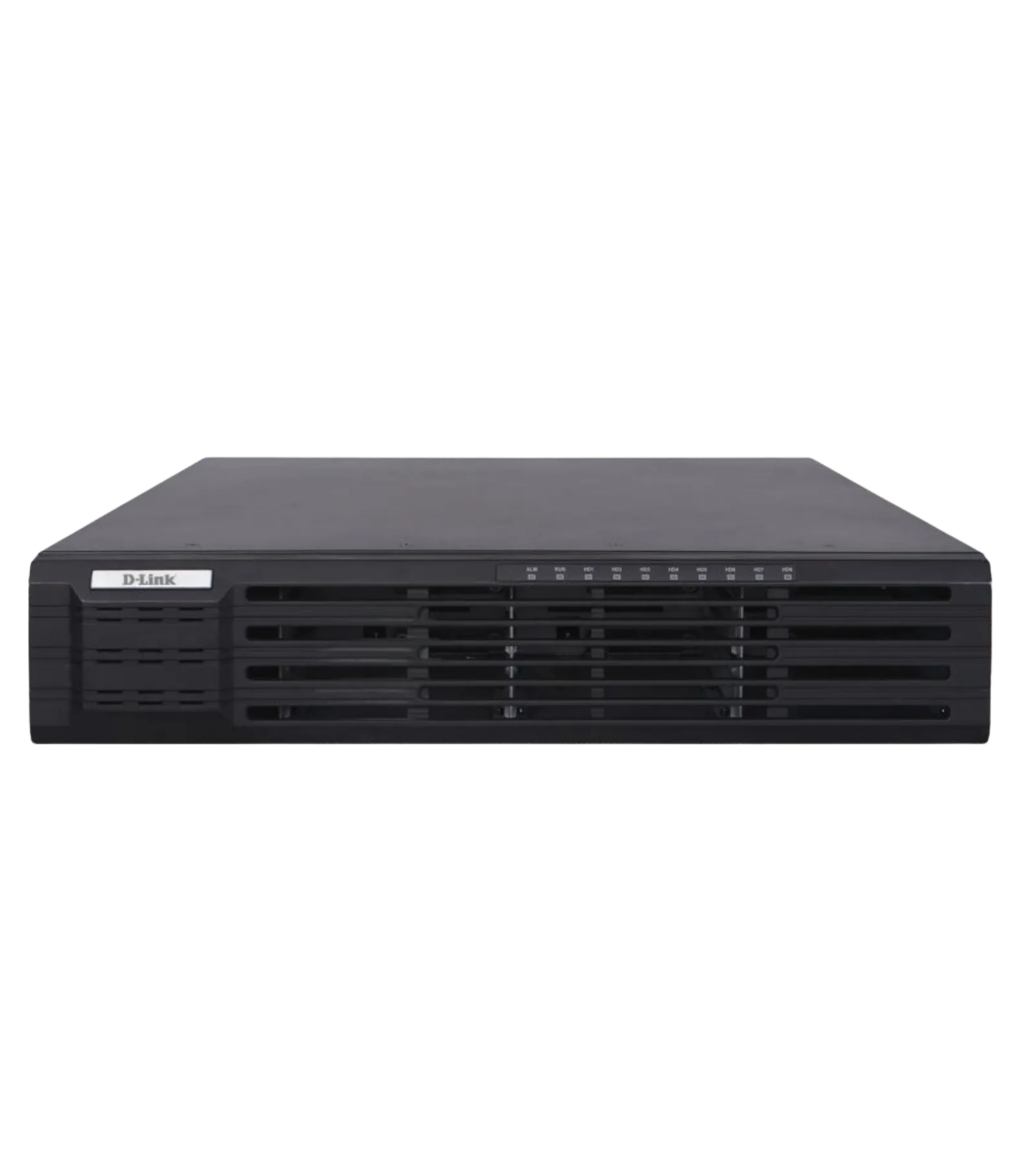

F500-EN8
2U 8 HDDs Mini SAS Disk Enclosure
- High Density: The innovative enclosure with 530.4mm depth and 2U height that holds up to 8 disks, is space-saving and applicable to the standard rack-mounted scenarios.
- Power Protection: Disk powered on sequentially during system startup, protection from impulse current.
- Multistage Fan Speed and Energy Saving: Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
Overview
Rear Panel
- Grounding Terminal - Equipment grounding
- Power Interface - AC power, 100 V-240 V AC
- Power Switch - Turn on/off device when connected to power
- Mini-SAS Interface - For connection to the host
F500-EN8
Specifications
| HDD | 8 SATA Interfaces |
|---|---|
| Disk Capacity | up to 8TB for each disk |
| Back-end Expansion Interface | 1 mini SAS |
| Power Supply | 100 ~ 240V |
| Consumption (with HDD) | ≤ 100W |
| Working Environment | -10 °C~ 55 °C 5%~95% RH (non-condensing) |
| Weight (Without HDD) | < 8 kg (17.6lb) |
| Dimensions (W×D×H) | 442.0 × 530.4 × 86.1mm (17.4” × 20.88” × 3.39”) |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
