NFP Series
Faceplates & Modular Inserts
9 models
- Stylish design to mount on the wall
- Available in one, two and four port variants
- ID stripes for easy identification
- Compatible with Cat5e/Cat6/Cat6A keystone jacks
Overview
D-Link offers a range of high quality, stylishly designed Faceplates for professional installations, fully compliant with copper cabling systems. The Faceplates have built-in shutters which are compatible with any standard coloured keystone jacks. The Faceplates are available in one, two and four port variants.
UK style with shutter against dust and labeling plate
| ID Plate | PC, Transparent Color |
|---|---|
| Faceplate | ABS with White Color |
| Dust Cover | ABS with White Color |
| Screw | M3.5XL24.0mm |
UK style angled with shutter against dust and labeling plate
| Property | Column 1 |
|---|---|
| ID Plate | PC, UL 94V-2, Transparent color |
| Face Plate | ABS, UL 94-HB, with white color |
| Dust Cover | ABS, UL 94-HB, with white color |
| Screw | M3.5 x L17.6 mm |
| Front Bracket | ABS, UL 94-HB, with white color |
| Back Bracket | ABS, UL 94-HB, with white color |

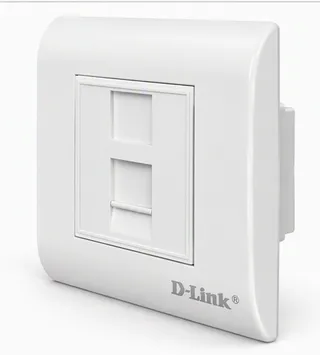

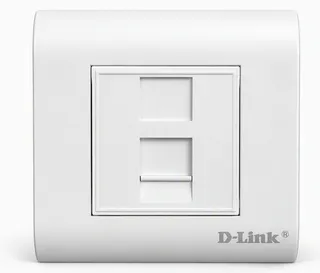

Flush Mount Plate-French Type
| Faceplate | ABS, UL-94HB, with white Color. |
|---|---|
| Bracket | Metal, blue zinc plated |
| Screw | M3.5 X 25.0mm X 7.0mm |
Modular Inserts for French type Flush mount Plate
| Dust Cover | ABS, UL-94HB |
|---|---|
| Front Bracket | ABS, UL-94HB |
| Back Bracket | ABS, UL-94HB |
| Spring | SUS |
Angled Floor Module Holder
| Plate | ABS White Color |
|---|---|
| ID Plate | ABS |
| Dust Cover | ABS |
| Back Insert | ABS |
| Spring | Stainless Steel |
| Operating Temperature | -10°C to +60°C |
| Angle | 45° |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|

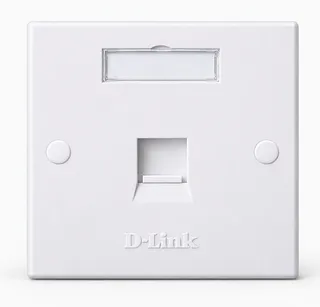

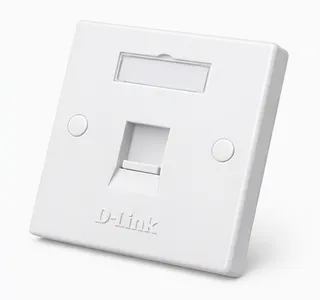

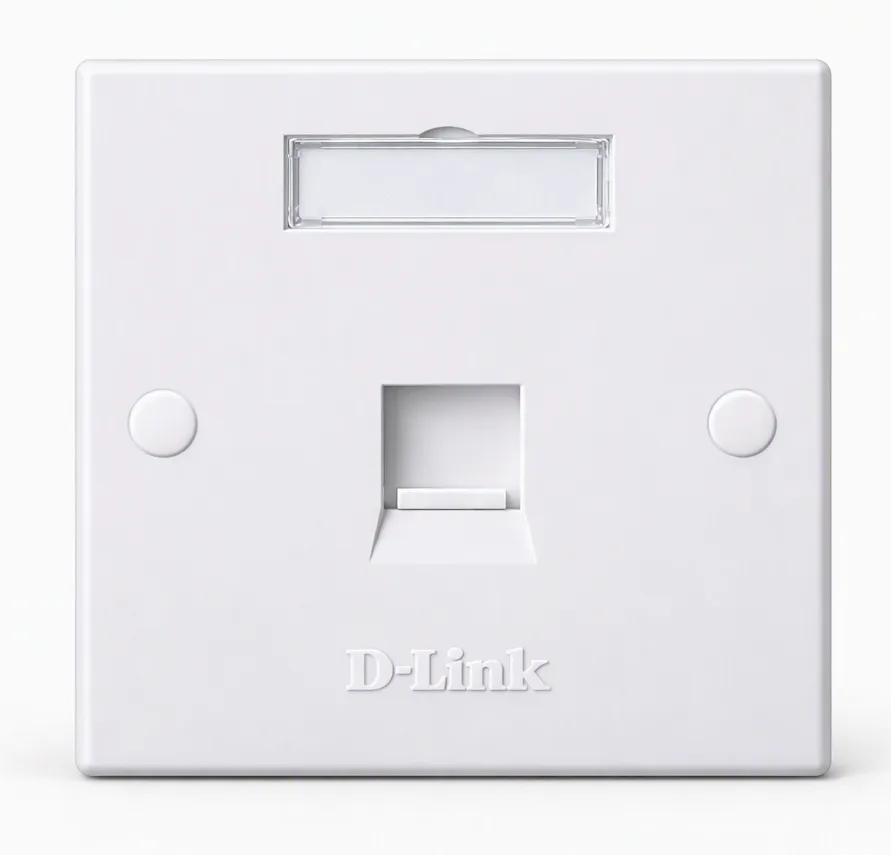

| NFP-0WHI11 | 86*86 mm, Single UK Faceplate accepts one keystone jack |

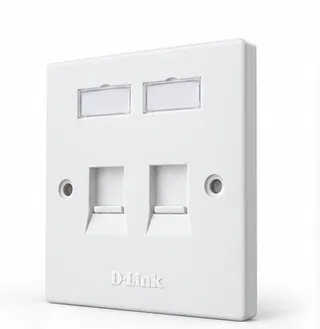

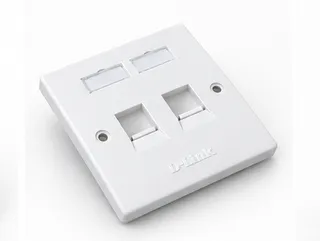

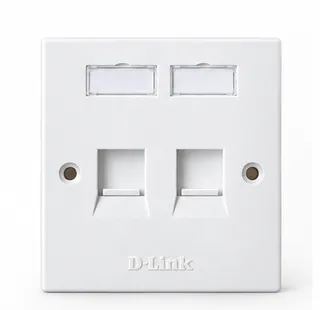

| NFP-0WHI21 | 86*86 mm, Dual UK Faceplate accepts two keystone jacks |
| NFP-0WHI22 | 86*86 mm, Dual Angled UK Faceplate accepts two keystone jacks |
| NFP-0WHI41 | 146*86 mm, Quad UK Faceplate accepts four keystone jacks |
| NFF-01WHI | 80*80mm, Flush-Mounted French Faceplate Frame |
| NMI-11WHI01B2 | 45x45mm, Modular Insert for French Faceplate |
| NMI-11WHI01B3 | 22.5x45mm, Modular Insert for French Faceplate |
| NMI-12WHI01B1 | Angled Floor Module Holder |
| NFP-0WHI12 | 86*86 mm, Single Angled UK Faceplate accepts one keystone jack |
