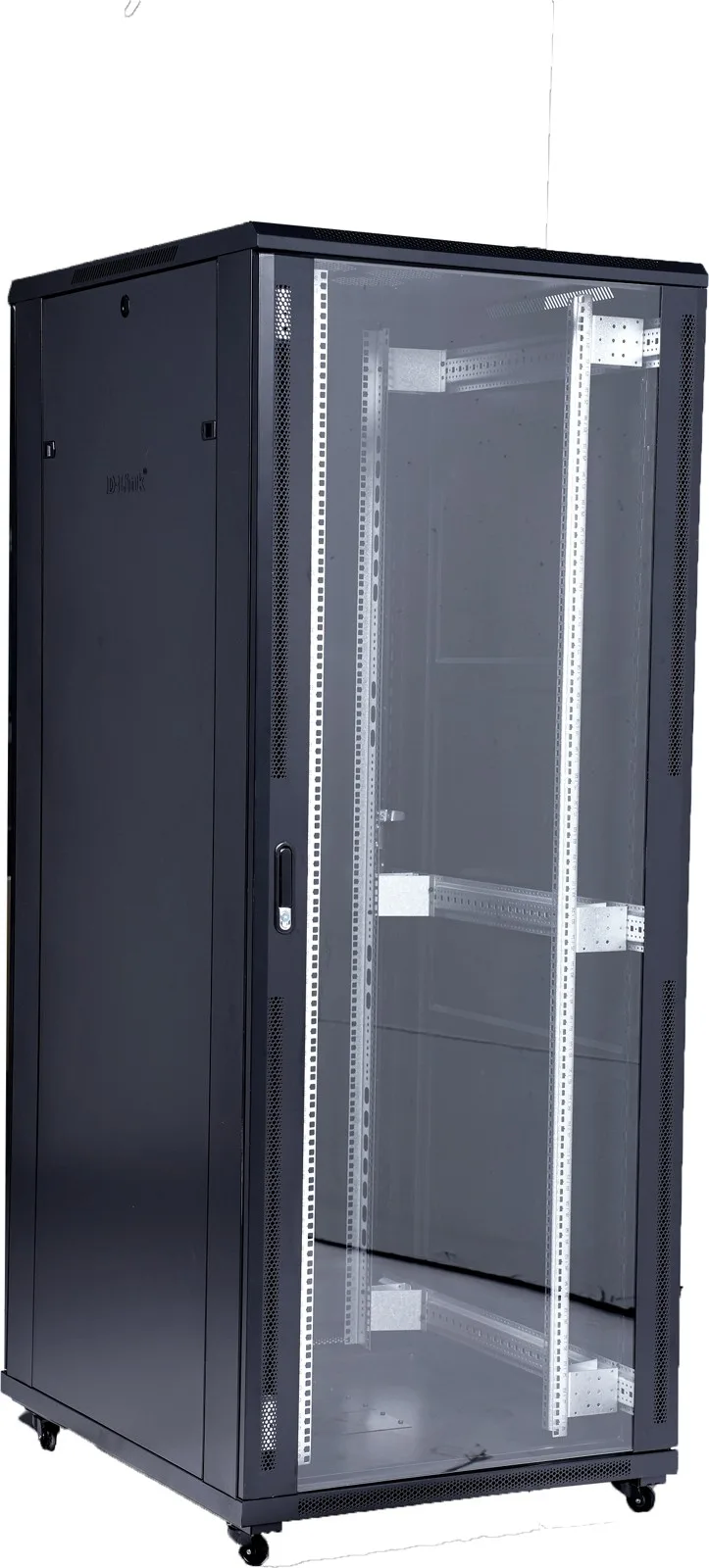

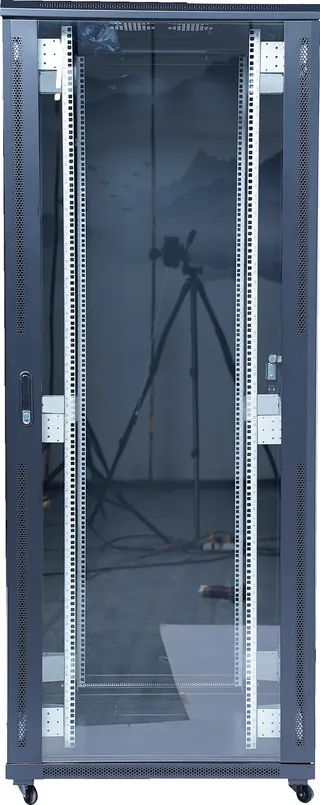

NFR Glass Door Series
Floor Standing Cabinets, Glass Door
29 models
- 19” width standard
- Removable Side Panels, side locks optional;
- Knockout holes for cable entry on both the top cover and bottom panel
- Turning angle of front door is over 180 degrees
- Easy Mounting installation
- Fan, PDU and shelf available as optional accessories
Overview
D-Link Floor Standing Steel Enclosures are designed for Servers, Networking, Data Centres, Audio Video, Telecom and Lab applications. Enclosures are fabricated out of CRCA steel, CNC programmed, punched, bent, welded and powder coated to the highest quality standards. Removable side panels in 650 & above depth racks are partially vented for better air circulation. Openings/Cut outs for field cable entry from Top & Bottom of the Rack. Vented top cover with fan mounting provision, Front Glass with lock and key. Rear metal door with lock and key. Free Floor standing Design with 4 No. castor wheels. Racks are available in 18U to 47U Variants with 600mm/800mm/1000mm depth and 600 and 800 width configurations.
Physical specifications
| Loading capacity | 800 kg |
|---|---|
| Degree of protection | IP20 |
| Material | SPCC cold rolled steel, thickness 2.0 mm, 1.5 mm, 1.2 mm |
| Surface finish | Powder coating |
| Available rack heights | 18U, 22U, 27U, 32U, 37U, 42U, 47U |
| Rack depths | 600 mm, 800 mm, 1000 mm |
| Rack width | 600 mm, 800 mm |
Ordering code key (NFR-XXU-YYZZ-BL-AA)
| Code segment | Meaning |
|---|---|
| XX | Rack height (U) |
| YY | Width (60: 600 mm, 80: 800 mm) |
| ZZ | Depth (60: 600 mm, 80: 800 mm, 10: 1000 mm) |
| AA | Door (GL: glass door) |
Cabinet components
| Component | Quantity | Unit | Material | Surface finish |
|---|---|---|---|---|
| Frame | 2 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Side Panel | 2 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Top Cover | 1 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Bottom Panel | 1 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Mounting Profile | 4 | Piece | SPCC Cold Rolled Steel | Zinc plated |
| Mounting Rail | 4/6 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Front Door | 1 | Piece | Toughened Glass Door | Powder coated |
| Back Door | 1/2 | Piece | Single Solid Door | Powder coated |
| Castors | 4 | Piece | - | - |
| Levelling Feet | 4 | Piece | - | - |
| Lock | 2 | Piece | - | - |
| M6 Square Nut | 30 | Piece | Steel | Color zinc |
| M6-B head Screw | 30 | Piece | Steel | Color zinc |
| Allen Wrench | 1 | Piece | Steel | Color zinc |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| CODE | MEANING |
|---|---|
| XX | Rack height (U) |
| YY | Width (60: 600mm, 80: 800mm) |
| ZZ | Depth (60: 600mm, 80: 800mm, 10: 1000mm) |
| AA | Door (GL: Glass Door) |
| PART CODE | DESCRIPTION |
|---|---|
| NFR-18U-6060-BL-GL | 18U (600 x 600 mm) floor mount rack with glass door |
| NFR-22U-6060-BL-GL | 22U (600 x 600 mm) floor mount rack with glass door |
| NFR-27U-6060-BL-GL | 27U (600 x 600 mm) floor mount rack with glass door |
| NFR-32U-6060-BL-GL | 32U (600 x 600 mm) floor mount rack with glass door |
| NFR-37U-6060-BL-GL | 37U (600 x 600 mm) floor mount rack with glass door |
| NFR-42U-6060-BL-GL | 42U (600 x 600 mm) floor mount rack with glass door |
| NFR-18U-6080-BL-GL | 18U (600 x 800 mm) floor mount rack with glass door |
| NFR-22U-6080-BL-GL | 22U (600 x 800 mm) floor mount rack with glass door |
| NFR-27U-6080-BL-GL | 27U (600 x 800 mm) floor mount rack with glass door |
| NFR-32U-6080-BL-GL | 32U (600 x 800 mm) floor mount rack with glass door |
| NFR-37U-6080-BL-GL | 37U (600 x 800 mm) floor mount rack with glass door |
| NFR-42U-6080-BL-GL | 42U (600 x 800 mm) floor mount rack with glass door |
| NFR-27U-6010-BL-GL | 27U (600 x 1000 mm) floor mount rack with glass door |
| NFR-32U-6010-BL-GL | 32U (600 x 1000 mm) floor mount rack with glass door |
| NFR-37U-6010-BL-GL | 37U (600 x 1000 mm) floor mount rack with glass door |
| NFR-42U-6010-BL-GL | 42U (600 x 1000 mm) floor mount rack with glass door |
| NFR-47U-6010-BL-GL | 47U (600 x 1000 mm) floor mount rack with glass door |
| NFR-18U-8080-BL-GL | 18U (800 x 800 mm) floor mount rack with glass door |
| NFR-22U-8080-BL-GL | 22U (800 x 800 mm) floor mount rack with glass door |
| NFR-27U-8080-BL-GL | 27U (800 x 800 mm) floor mount rack with glass door |
| NFR-32U-8080-BL-GL | 32U (800 x 800 mm) floor mount rack with glass door |
| NFR-37U-8080-BL-GL | 37U (800 x 800 mm) floor mount rack with glass door |
| NFR-42U-8080-BL-GL | 42U (800 x 800 mm) floor mount rack with glass door |
| NFR-47U-8080-BL-GL | 47U (800 x 800 mm) floor mount rack with glass door |
| NFR-27U-8010-BL-GL | 27U (800 x 1000 mm) floor mount rack with glass door |
| NFR-32U-8010-BL-GL | 32U (800 x 1000 mm) floor mount rack with glass door |
| NFR-37U-8010-BL-GL | 37U (800 x 1000 mm) floor mount rack with glass door |
| NFR-42U-8010-BL-GL | 42U (800 x 1000 mm) floor mount rack with glass door |
| NFR-47U-8010-BL-GL | 47U (800 x 1000 mm) floor mount rack with glass door |
