NCB-FS09IM-UMLS Series
Micromodule Multitube Indoor Riser Fibre Optic Cable
5 models
- Reduced diameter micro-modules manufactured from soft and flexible elastomeric material
- Fast and easy midspan access
- Fibre micro-modules are kink resistant and easily removed without the need for tools.
- Ultra-compactness, easier storage and faster installation.
- Tightly controlled physical parameters
- UV protected.
Overview

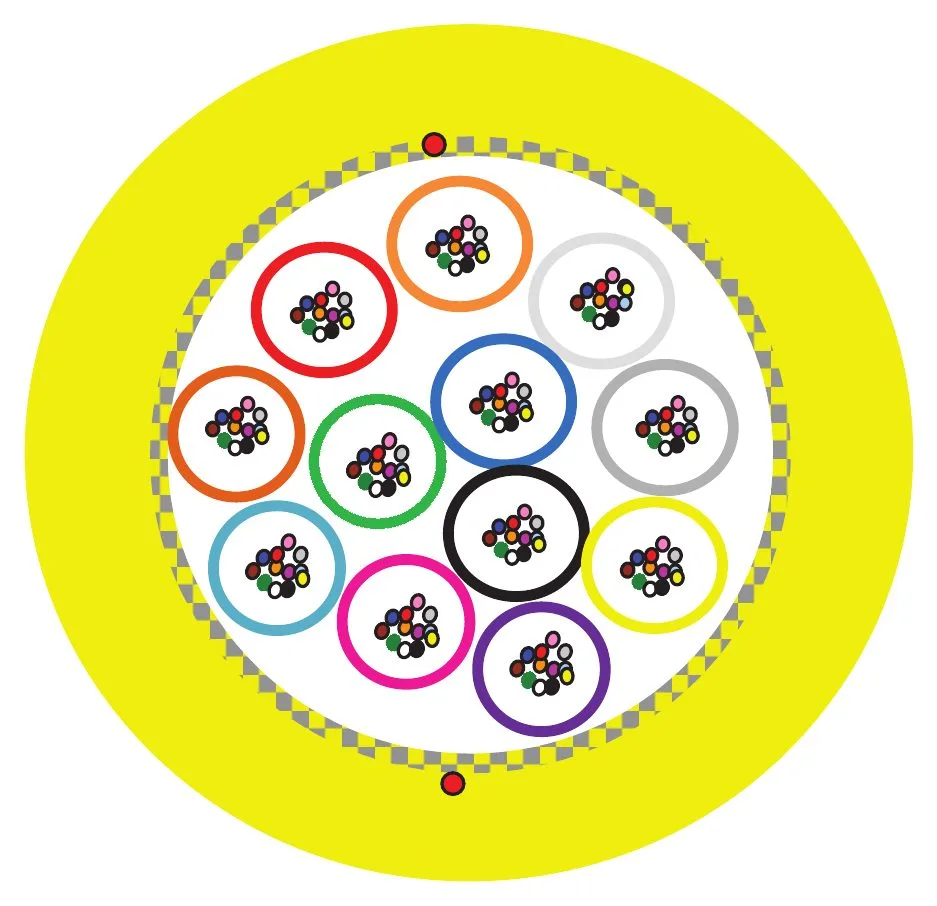

D-Link Single Jacket riser cable for indoor distribution application is based on micromodule technology to create an optimized design suitable for use in vertical installation into the building scenarios. The micro-module units consist of groups of fibres protected by an easily strippable and flexible thermoplastic material. These microstructures are dry micromodules with fibers and are constrained in a flame retardant thermoplastic sheath making the cable robust and installation friendly. These cables are intended for internal use only. This design is suited for use in vertical installation into the building. The compact micro-module construction with fibre counts up to 144 fibres offers a versatile and compact construction with the benefits of quick fibre preparation ready for installation.
Cable size and ordering information
| Cable size | 24/48/72/96/144 fibers |
|---|---|
| Standard length | 2 km / 4 km ± 10% |
Optical characteristics (cabled)
| Fiber type | Attenuation 1310 nm (dB/km) | Attenuation 1550 nm (dB/km) | Attenuation 1625 nm (dB/km) | PMD (ps/√km) | PMD LDV (ps/√km) | Cut-off wavelength (LCC) (nm) |
|---|---|---|---|---|---|---|
| G657A2 FIBER | ≤ 0.36 | ≤ 0.23 | ≤ 0.26 | ≤ 0.20 | ≤ 0.10 | ≤ 1260 |
Mechanical and environmental characteristics
| Test | Standard / notes | Product performance |
|---|---|---|
| MAX. TENSILE STRENGTH (N) | IEC-60794-1-21-E1 | 500 |
| MIN BENDING RADIUS | IEC-60794-1-21-E11 | 15D |
| KINK RADIUS | IEC-60794-1-21-E10 | 10D |
| CRUSH RESISTANCE (N/100MM) | IEC-60794-1-21-E3 | 1000 |
| IMPACT STRENGTH (N.M) | IEC-60794-1-21-E4 | 3 |
| TORSION | IEC-60794-1-21-E7 | ±180º |
| TEMPERATURE CYCLING | IEC-60794-1-22-F1 | Installation -5 to +50 °C; Operation -30 to +70 °C; Storage -30 to +70 °C |
Physical properties
| Fiber Count | 24 | 48 | 72 | 96 | 144 |
|---|---|---|---|---|---|
| NUMBER OF FIBERS IN EACH MICROMODULE | 12 | 12 | 12 | 12 | 12 |
| NUMBER OF MICROMODULES IN EACH CABLE | 2 | 4 | 6 | 8 | 12 |
| NOMINAL CABLE DIAMETER (MM) ± 0.5MM | 7.0 | 7.7 | 8.7 | 9.2 | 10.2 |
| NOMINAL CABLE WEIGHT (KG/KM) ± 10% | 40 | 42 | 55 | 60 | 72 |
Color code
| Fiber | Color |
|---|---|
| BL | Blue |
| OR | Orange |
| GR | Green |
| BR | Brown |
| SL | Slate |
| WH | White |
| RD | Red |
| BK | Black |
| YL | Yellow |
| VL | Violet |
| PK | Pink |
| AQ | Aqua |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|
| NCB-FS09IM-UMLS-24 | 24 Core Single Mode Micromodule Indoor Riser Fiber Cable - LSZH Sheath |
| NCB-FS09IM-UMLS-48 | 48 Core Single Mode Micromodule Indoor Riser Fiber Cable - LSZH Sheath |
| NCB-FS09IM-UMLS-72 | 72 Core Single Mode Micromodule Indoor Riser Fiber Cable - LSZH Sheath |
| NCB-FS09IM-UMLS-96 | 96 Core Single Mode Micromodule Indoor Riser Fiber Cable - LSZH Sheath |
| NCB-FS09IM-UMLS-144 | 144 Core Single Mode Micromodule Indoor Riser Fiber Cable - LSZH Sheath |
