NCB-Unarmoured Series

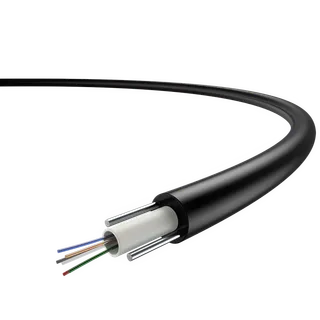

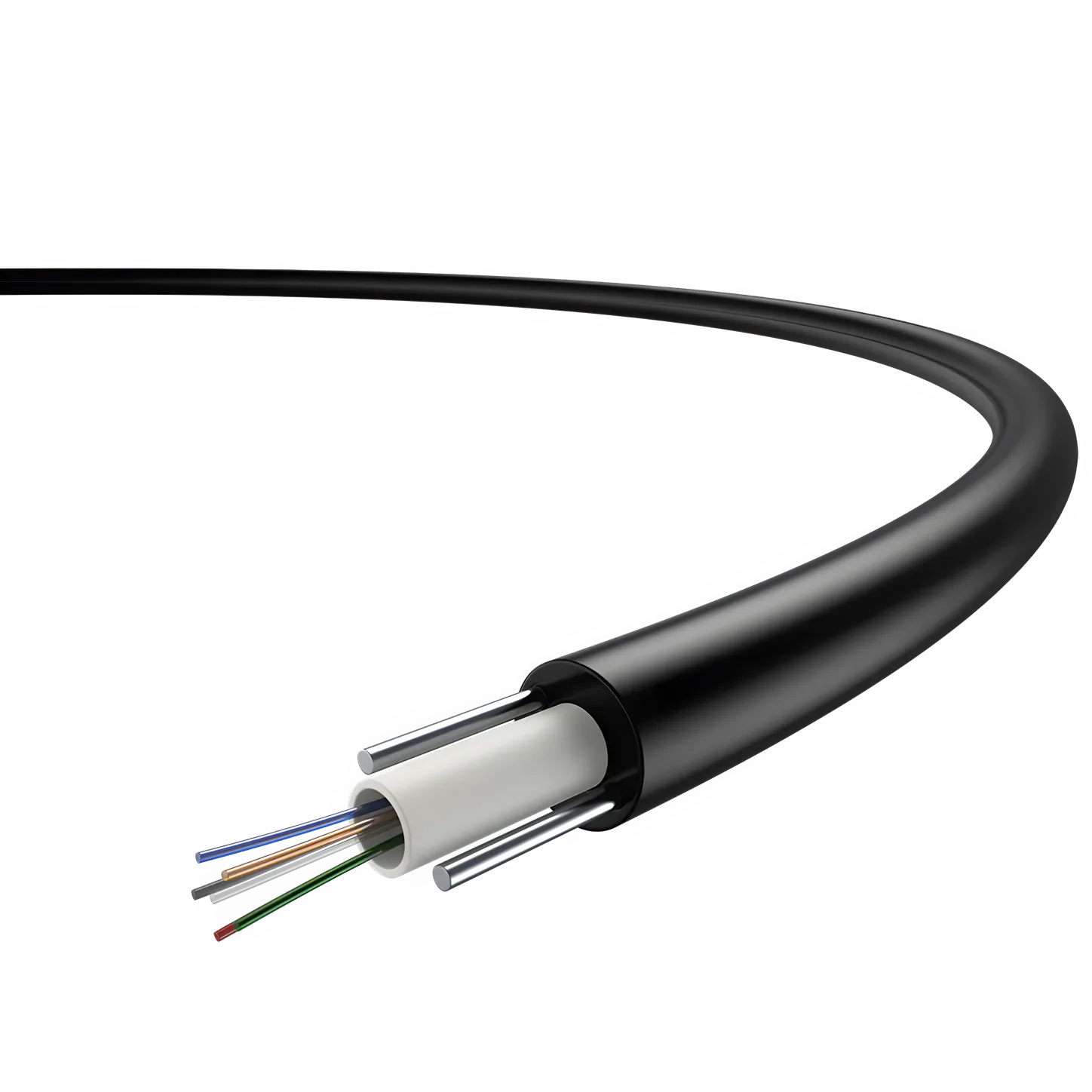

Optic Fiber Cables - Unarmoured
28 models

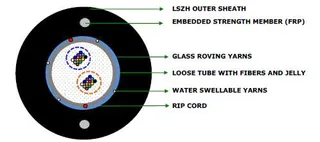

- Central Loose tube with jelly compound
- E - glass strength members
- Sequential Meter Marking
- Suitable for Indoor & Outdoor (duct), pipeline
- Lightweight, Small, Compact cable size
StandardsISO/IEC 11801IEC 60793-1IEC 60794-1-2ITU-T G.651Telcordia GR-20ITU-T G.652D
Overview
Optic Fiber Cables - Unarmoured highlights Central Loose tube with jelly compound; E - glass strength members.
Applications
- Suitable for Indoor & Outdoor (duct), pipeline
- Lightweight, Small, Compact cable size
Mechanical & environment characteristics
| Characteristic | Testing standard | Performance |
|---|---|---|
| Tensile strength | IEC-60794-1-21-E1 | Installation 1600 N, operational 550 N |
| Crush resistance | IEC-60794-1-21-E3 | 1100 N/100 mm |
| Installation temperature | - | 10°C to +60°C |
| Operating temperature | - | -10°C to +70°C |
Color code
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
Optical fiber characteristics
| Characteristic | Single mode | OM2 | OM3 | OM4 |
|---|---|---|---|---|
| Maximum attenuation at 850 nm | - | 3.0 dB/km | 3.0 dB/km | 3.0 dB/km |
| Maximum attenuation at 1300 nm | - | 1.0 dB/km | 1.0 dB/km | 1.0 dB/km |
| Minimum bandwidth at 850 nm | - | 500 MHz-km | 1500/2000 MHz-km (effective modal bandwidth at 850 nm) | 3500/4700 MHz-km (effective modal bandwidth at 850 nm) |
| Minimum bandwidth at 1300 nm | - | 550 MHz-km | 500 MHz-km | 500 MHz-km |
| Maximum attenuation at 1310 nm | 0.35 dB/km | - | - | - |
| Maximum attenuation at 1550 nm | 0.23 dB/km | - | - | - |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| FIBER COUNT | CABLE DIAMETER | CABLE WEIGHT | SINGLE MODE | MULTIMODE 50µM (OM2) | MULTIMODE 50µM (OM3) |
|---|---|---|---|---|---|
| 4 FIBERS | 7.4 ± 0.5 mm | 52 ± 10 kg/km | NCB-FS09X-UUHD-04 | NCB-FM50X-UUHD-04 | NCB-FM51X-UUHD-04 |
| 6 FIBERS | 7.4 ± 0.5 mm | 52 ± 10 kg/km | NCB-FS09X-UUHD-06 | NCB-FM50X-UUHD-06 | NCB-FM51X-UUHD-06 |
| 12 FIBERS | 7.4 ± 0.5 mm | 52 ± 10 kg/km | NCB-FS09X-UUHD-12 | NCB-FM50X-UUHD-12 | NCB-FM51X-UUHD-12 |
| 24 FIBERS | 7.4 ± 0.5 mm | 52 ± 10 kg/km | NCB-FS09X-UUHD-24 | NCB-FM50X-UUHD-24 | NCB-FM51X-UUHD-24 |
| FIBER COUNT | CABLE DIAMETER | CABLE WEIGHT | SINGLE MODE | MULTIMODE 50µM (OM2) | MULTIMODE 50µM (OM3) | MULTIMODE 50µM (OM4) |
|---|---|---|---|---|---|---|
| 4 FIBERS | 7.4 ± 0.5 mm | 65 ± 10 kg/km | NCB-FS09X-UULS-04 | NCB-FM50X-UULS-04 | NCB-FM51X-UULS-04 | NCB-FM54X-UULS-04 |
| 6 FIBERS | 7.4 ± 0.5 mm | 65 ± 10 kg/km | NCB-FS09X-UULS-06 | NCB-FM50X-UULS-06 | NCB-FM51X-UULS-06 | NCB-FM54X-UULS-06 |
| 12 FIBERS | 7.4 ± 0.5 mm | 65 ± 10 kg/km | NCB-FS09X-UULS-12 | NCB-FM50X-UULS-12 | NCB-FM51X-UULS-12 | NCB-FM54X-UULS-12 |
| 24 FIBERS | 7.4 ± 0.5 mm | 65 ± 10 kg/km | NCB-FS09X-UULS-24 | NCB-FM50X-UULS-24 | NCB-FM51X-UULS-24 | NCB-FM54X-UULS-24 |
