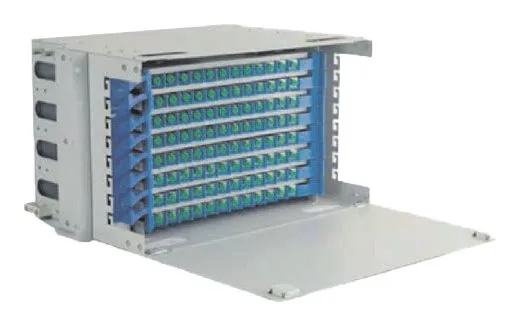

Optical Distribution Frame

Overview

D-Link Optical Distribution Frame Units are the cabinets used in interconnecting, cross-connecting, or splicing applications in LANs at a premise location. The optical distribution frame (ODF) is modular and suitable for optical cable installation, bare fiber splicing & protection, pigtail storage & management. The number of fibers determines which ODF is appropriate for the application. ABS plastic 24 core fiber optic splice tray Fiber optic splice trays are designed to provide a location to store and to protect the fiber cables and the splices. Fiber optic splice trays are located at intermediate points along a route where cables are required to be joined or at the termination and patch panel points at the end of fiber cable runs. Splice trays normally hold up to 12 splices, and several trays are used together to splice a large fiber cable. Each tray provides space for mounting fiber splice protectors and excess fiber.
