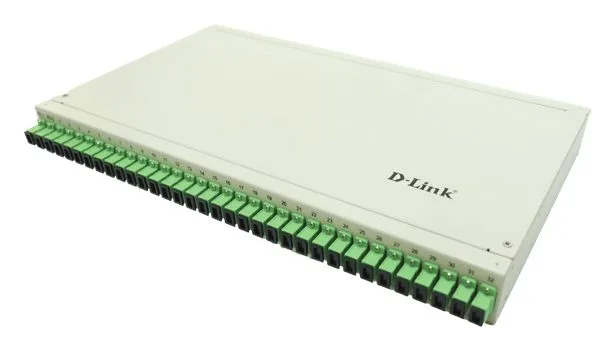

NFS-FS Series
PLC Splitter - Rack Mount
2 models
- Quartz substrate integrated waveguide
- Good Uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- High Reliability
- Channel-to-Channel uniformity
- Small size
StandardsTelcordia GR-1209Telcordia GR-1221
Overview
Planar Light Circuit (PLC) splitters exhibit uniform signal splitting for FTTH and PON networks. They are fabricated using silica optical waveguide technology. Splitters come with SC adapters. They meet GR-1209 and GR-1221 standards for performance and reliability.
Applications
- FTTX (FTTP, FTTH, FTTN, FTTC)
- Passive Optical Networks (PON)
- Local Area Networks (LAN)
- Test Equipment
- Monitoring system
Specifications
| Wavelength (nm) | 1260-1650 |
|---|---|
| Return loss (dB) | ≥50 |
| Directivity (dB) | ≥55 |
| Pigtail length (m) | 1.2 (± 0.1), customer specified |
| Fiber type | customer specified |
| Operating temperature (°C) | -20 to +85 |
Split ratio characteristics
| Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. insertion loss (dB) | 3.8/4.1 | 7.0/7.4 | 10.0/10.3 | 13.5/13.7 | 16.5/16.9 | 21 | 4.1/4.3 | 7.3/7.6 | 10.3/10.5 | 13.7/13.9 | 16.8/17.2 | 21.5 |
| Max. loss uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 0.8 | 0.8 | 1.5 | 2.0 | 1.5 | 2.5 |
| Max. PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|
| NFS-FSSSC2-32-APC | 2*32 PLC splitter loaded with SC/APC Simplex Adapters |
| NFS-FSDLC2-32-APC | 2*32 PLC splitter loaded with LC/APC Duplex Adapters |
