DSC-PPFTC61GY6

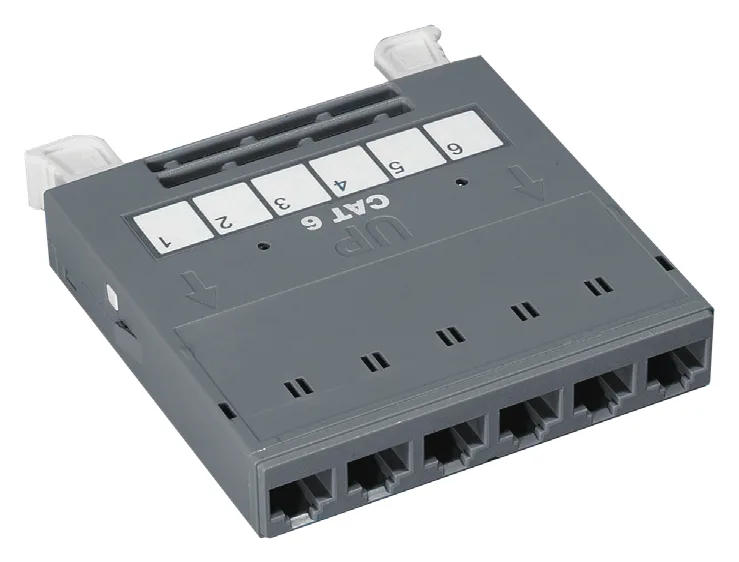

Pre-Terminated UTP Cassette
1 model
- Cables entering module are individually secured
- Tool-less assembly and patch panel fitting
- Performance Component Level
- Compatible with Blank Patch Panel
Overview
The 6 Port UTP Category 6 Pre-termination ready Cassette offers a flexible and quick way to terminate and install structured cabling. Manufactured from high impact flame retardant plastic, the modules use IDC punch downs for the termination of the copper cables. The Cassettes are easily fitted and removed from the rear of the patch panel by activating release latches.
Specifications
| Model | Cassette with 6 Jacks |
|---|---|
| Type of Connector | RJ45 |
| Category | 6 (ANSI / TIA-568-C.2) |
| Connection Type | IDC |
| Insertion/Extraction Life | 750 Cycles |
| Housing | FR Plastic, UL 94V-0 |
| Spring Wire | Phosphor Bronze Alloy Plated with 50 micro-inch of Gold |
| Color | Gray |
| AWG-Range | 22~24 |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|
| DSC-PPFTC61GY6 | Cat.6 UTP Pre-terminated Cassette, 6 Ports |
