Overview

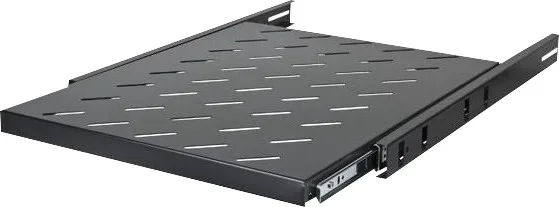

D-Link rack mount fixed shelves can be used to support both active and non-active data equipment within the rack that is not 19” rack mountable. These shelves can be used to support equipment from any industry to create the desired solution. Installation is achieved by attaching the shelves to both the front and rear 19” profiles using M6 fixing hardware. The shelves are vented, allowing for air circulation around the communication equipment.
Applications
- Data Centers
- Network and Server
- Security and Audio/Visual
Specifications
| Material | 1.2 mm cold rolled steel |
|---|---|
| Surface finish | Degreasing, phosphoric, water cleaning, electrostatic powder coating |
| Color | Black |
| Function | Setting hosts, monitors or other terminal and ancillary equipment |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION | DIMENSIONS |
|---|---|---|
| NRS-FD-45 | Fixed Shelf suitable for wall mounting rack depth 450mm | 487 x 250 x 44 |
| NRS-FD-60 | Fixed Shelf suitable for wall mounting rack depth 600mm | 487 x 300 x 44 |
| NRS-FD-60/F | Fixed Shelf suitable for floor standing rack depth 600mm | 487 x 275 x 44 |
| NRS-FD-80/F | Fixed Shelf suitable for floor standing rack depth 800mm | 487 x 475 x 44 |
| NRS-FD-100/F | Fixed Shelf suitable for floor standing rack depth 1000mm | 487 x 650 x 44 |
| NRS-SD-60/F | Sliding Shelf suitable for floor standing rack depth 600mm | 470 x 275 x 44 |
| NRS-SD-80/F | Sliding Shelf suitable for floor standing rack depth 800mm | 470 x 475 x 44 |
| NRS-SD-100/F | Sliding Shelf suitable for floor standing rack depth 1000mm | 470 x 650 x 44 |
