NPP-AL1XXX Series
Unloaded Patch Panels
2 models

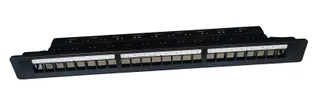

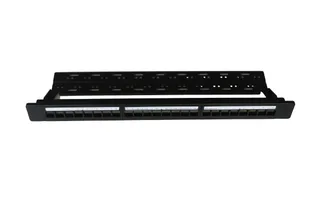

- With cable management bar for improved management
- Staggered 24 port panel in 1U
- Mounts in standard 19 inch racks
- Feasible solution for reducing interference and eliminating alien crosstalk
Overview
D-Link Unloaded Patch Panels have 24 RJ45 ports in 1U (NPP-AL1BLK241) and 48 RJ45 ports in 2U (NPP-AL1BLK481) and are suitable for Cat 5e and Cat 6. D-Link patch panels have improved cable management with an optional cable management bar for terminating 4-pair UTP cable.
Cat5e/Cat6 Unloaded Panel
| Support Bar | SPCC, 1.5 mm thickness painted black |
|---|---|
| Panel | SPCC 1.5 mm thickness painted black |
| Insert | ABS, UL 94V-0 Available as 24 port 1U and 48 port 2U patch panel |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|

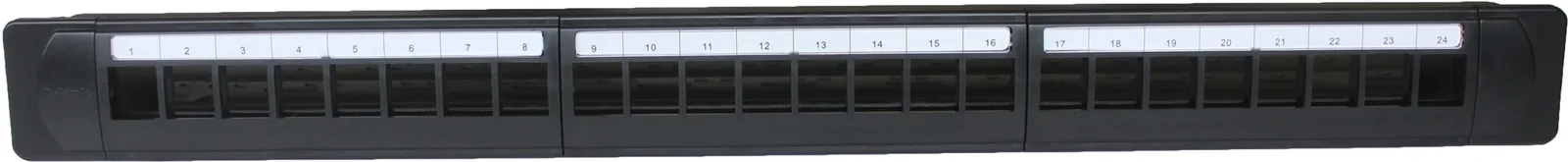

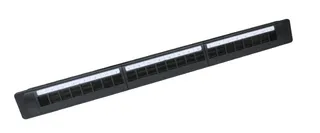

| NPP-AL1BLK241 | 24-Port 1U Unloaded Patch Panel for UTP Cat5e/Cat6 Keystone Jacks |

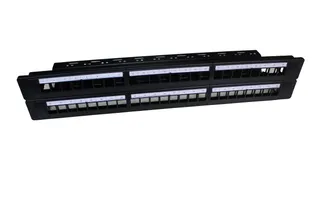

| NPP-AL1BLK481 | 48-Port 2U Unloaded Patch Panel for UTP Cat5e/Cat6 Keystone Jacks |
