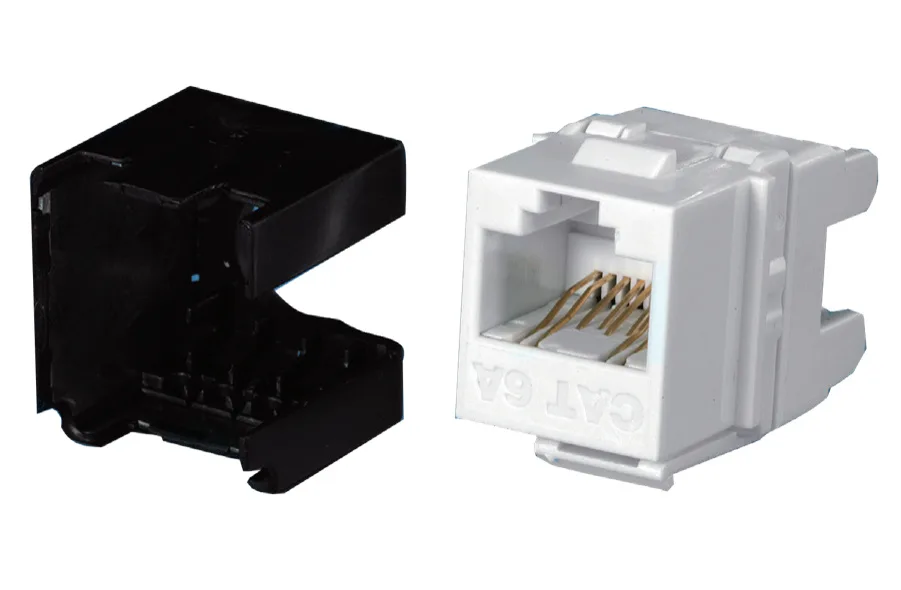

DSC-KJFT6A1XXX Series
Unshielded Fast Termination Keystone Jacks
7 models
- It is terminated by a Punch-Down Tool or a Fast-Termination Tool
- Support PoE++ application
Overview
8P8C unshielded RJ45 fast termination keystone jacks
Specifications
| Frequency Range | 1-500 MHz |
|---|---|
| Compatible Conductors | 22-24 AWG |
| Pin-Pair Assignment | T568A & T568B |
| Contacts | Phosphor Bronze Alloy Plated with 50 micro-inch of Gold |
| Shield | None |
| Housing | High impact FR compound |
| Standard Color | White/Black (other colors available) |
| Orientation | 180° |
| Termination Blocks | 110 IDC(Phosphor Bronze Alloy Plated with 100 micro-inch 100% Sn Alloy ) |
| Insertion/Withdrawal | 750 cycles |
| Cable Re-Termination | 20 cycles |
| Operating Temperature | -20 to +60°C at 5-95% RH (non-condensing) |
| Ampacity | 1.5 A max. |
| Contact Resistance | 20 mOhm max. |
| DC Resistance | 0.1 Ohm max. |
| Voltage Rating | 75 Vdc max. |
| Insulation Resistance | 500 MegaOhm min. @100 Vdc |
| Tools | Fast Termination Tool or Punch Down Tool. Compatible with 24-port & 48-port 1U panels |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION | COLOR |
|---|---|---|
| DSC-KJFT6A1WHB | Cat.6A UTP Fast Termination Jack, White | White |
| DSC-KJFT6A1BLB | Cat.6A UTP Fast Termination Jack, Blue | Blue |
| DSC-KJFT6A1RDB | Cat.6A UTP Fast Termination Jack, Red | Red |
| DSC-KJFT6A1YLB | Cat.6A UTP Fast Termination Jack, Yellow | Yellow |
| DSC-KJFT6A1GRB | Cat.6A UTP Fast Termination Jack, Green | Green |
| DSC-KJFT6A1BKB | Cat.6A UTP Fast Termination Jack, Black | Black |
| DSC-KJFT6A1ORB | Cat.6A UTP Fast Termination Jack, Orange | Orange |
