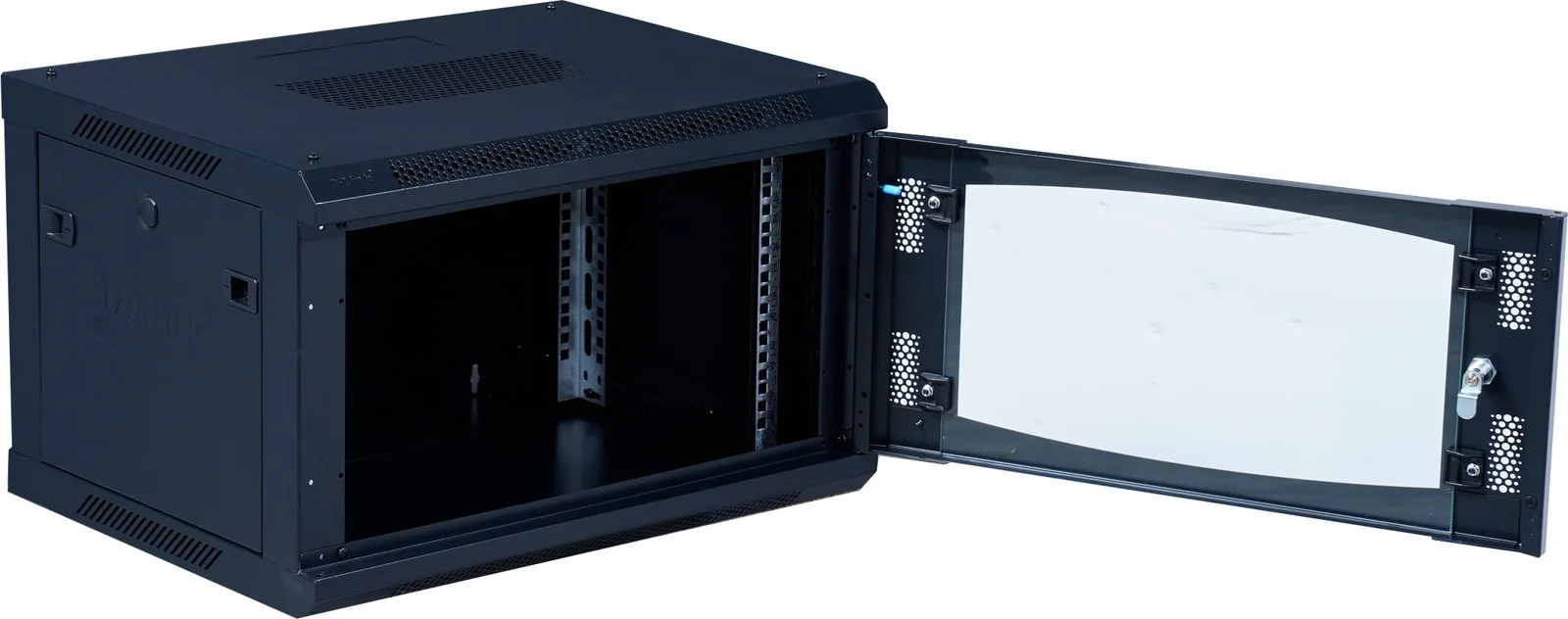

NWR Series
Wall Mount Network Cabinets
8 models
- 19” width standard
- Removable Side Panels, side locks optional;
- Knockout holes for cable entry on the top cover, bottom panel and rear panel
- Turning angle of front door is over 180 degrees
- Easy Mounting installation
- Fan, PDU and shelf available as optional accessories
- Flat packaging to save shipping space
Overview
D-Link Wall Mount Racks are specially designed for small networking, domestic application, Audio Video, Telecom and Lab applications. Racks are fabricated out of CRCA steel, CNC programmed, punched, bent, welded and powder coated to the highest quality standards. Standard racks are integrated with side panels and a top cover with fan mounting provision, while front glass with lock & key provides visibility & security. The rear side of the rack is provided with wall mounting slots for your equipment. Racks are available from 4U to 18U Variants with 450mm and 600mm deep configuration.
Physical specifications
| Loading capacity | 80 kg |
|---|---|
| Degree of protection | IP20 |
| Material | SPCC cold rolled steel, thickness 2.0 mm, 1.2 mm, 0.8 mm |
| Surface finish | Powder coating |
| Available rack heights | 4U, 6U, 9U, 12U, 15U, 18U |
| Rack depths | 450 mm, 600 mm |
| Rack width | 600 mm |
Cabinet components
| Component | Quantity | Unit | Material | Surface finish |
|---|---|---|---|---|
| Frame | 2 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Side Panel | 2 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Top Cover | 1 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Bottom Panel | 1 | Piece | SPCC Cold Rolled Steel | Powder coated |
| Mounting Profile | 4 | Piece | Coated Zinc Plate | Zinc plated |
| Front Door | 1 | Piece | 5mm toughened glass door/SPCC | Powder coated |
| Back Door | 1 | Piece | Single Back Door | Powder coated |
| Lock | 1 | Piece | - | - |
| M6 Square Nut | 12 | Piece | Steel | Color zinc |
| M6-B head Screw | 12 | Piece | Steel | Color zinc |
| Allen Wrench | 1 | Piece | Steel | Color zinc |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION |
|---|---|
| NWR-4U-6045-BL-GL | 4U (600 x 450 mm) wall mount rack with glass door |
| NWR-6U-6045-BL-GL | 6U (600 x 450 mm) wall mount rack with glass door |
| NWR-9U-6045-BL-GL | 9U (600 x 450 mm) wall mount rack with glass door |
| NWR-4U-6060-BL-GL | 4U (600 x 600 mm) wall mount rack with glass door |
| NWR-6U-6060-BL-GL | 6U (600 x 600 mm) wall mount rack with glass door |
| NWR-9U-6060-BL-GL | 9U (600 x 600 mm) wall mount rack with glass door |
| NWR-12U-6060-BL-GL | 12U (600 x 600 mm) wall mount rack with glass door |
| NWR-15U-6060-BL-GL | 15U (600 x 600 mm) wall mount rack with glass door |
