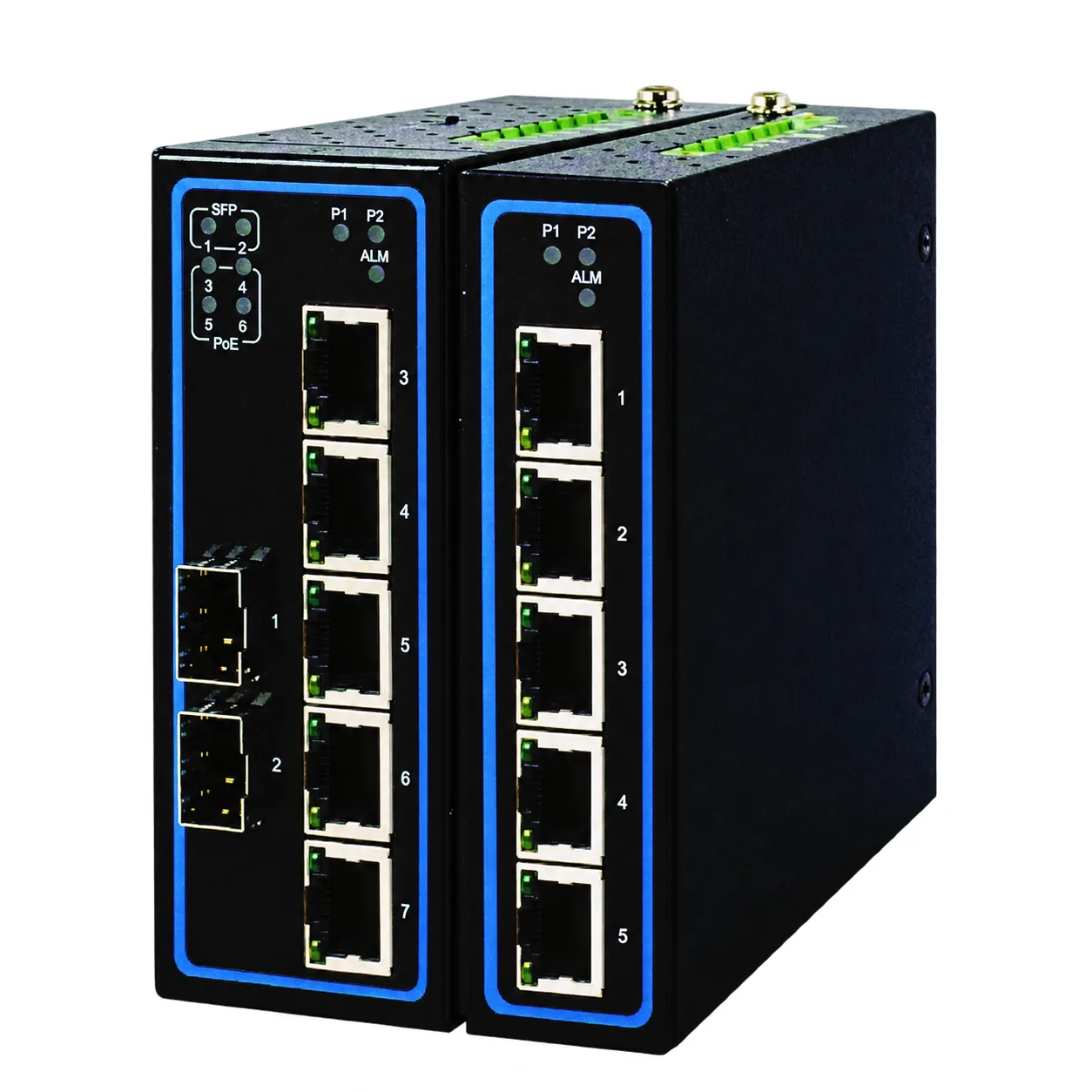

D-Link

DGS-F1000 SERIES

Industrial PoE Unmanaged Gigabit Ethernet Switch

  • Up to 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP port and 1 x 1000 Base-X SFP port*
  • Up to 4 802.3af or 802.3at compliant PoE ports
  • PoE capability of 30 W per port up to four ports
  • Supports 10K Jumbo frames
  • Supports 802.3az Energy Efficient Ethernet for power savings
  • Works from -40 °C to 70 °C
  • Failed power input alarm contact
  • Certified by UL 61010-2-201 and UL C1D2/ATEX Zone 2
  • EN50155 / EN50121-4 certified for railway and trackside applications.
Où acheterTélécharger la fiche techniqueVoir les spécifications

Présentation

The DGS-F1000 series switches are designed to work in mission critical environments such as mining and heavy industry.

Industrial Networking

With its high performance and non-blocking switching capacity, the DGS-F1000 Series is able to fulfill the increasing demand in industrial networking.

Power Inputs

The equipped terminal block provides dual redundant power inputs with Reverse Polarity Protection and relay output which allows field engineers to build up a fault alarm system.

DGS-F1000 SERIES

Spécifications

Specification
SpécificationDGS-F1000-5TDGS-F1000-4P1TDGS-F1000-5T1SDGS-F1000-4P1T1SDGS-F1000-5T2SDGS-F1000-4P1T2S
Description5*10/100/1GTX RJ455*10/100/1GTX RJ45 with 4 PoE5*1GTX RJ45 ;1*100/1GFX SFP5*1GTX RJ45/4PoE;1*100/1GFX SFP5*1GTX RJ45;2*100/1GFX SFP5*1G RJ45/4PoE;2*100/1GFX SFP
Processing SchemeStore-and-ForwardStore-and-ForwardStore-and-ForwardStore-and-ForwardStore-and-ForwardStore-and-Forward
MAC Address Table809680968096809680968096
Jumbo Frame10K Bytes10K Bytes10K Bytes10K Bytes10K Bytes10K Bytes
Packet Buffer1 Mbits1 Mbits1 Mbits1 Mbits1 Mbits1 Mbits
ComplianceIEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient EthernetIEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient EthernetIEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient EthernetIEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient EthernetIEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient EthernetIEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient Ethernet
Flow ControlBack pressure and pause frame-based flow control schemesBack pressure and pause frame-based flow control schemesBack pressure and pause frame-based flow control schemesBack pressure and pause frame-based flow control schemesBack pressure and pause frame-based flow control schemesBack pressure and pause frame-based flow control schemes
LLDPForwardingForwardingForwardingForwardingForwardingForwarding
Transmission Rate for RJ455 x 10/100/1000 Mbps5 x 10/100/1000 Mbps5 x 10/100/1000 Mbps5 x 10/100/1000 Mbps5 x 10/100/1000 Mbps5 x 10/100/1000 Mbps
Transmission Rate for SFP--1 x 100/1000 Mbps1 x 100/1000 MbpsSFP1: 1000 Mbps / SFP2: 100/1000 MbpsSFP1: 1000 Mbps / SFP2: 100/1000 Mbps
Auto MDI/MDI-XYesYesYesYesYesYes
Input Voltage12-52 VDC12-52 VDC*12-52 VDC12-52 VDC*12-52 VDC12-52 VDC**
Input Current (System)0.5A @ 12 V0.5A @ 12 V0.6A @ 12V0.6A @ 12V0.6A @ 12V0.6A @ 12V
Max. Power Consumption (System)6 W6 W7.2 W7.2 W7.2 W7.2 W
Input Current (with PoE)-2.6A @ 51 V-2.6A @ 51 V-2.6A @ 51 V
Max. Power Consumption (with PoE)-130 W-130 W-130 W
Relay Output24 V / 0.5A24 V / 0.5A24 V / 0.5A24 V / 0.5A24 V / 0.5A24 V / 0.5A
ConnectorTerminal BlockTerminal BlockTerminal BlockTerminal BlockTerminal BlockTerminal Block
IndicatorsPWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoEPWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoEPWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoEPWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoEPWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoEPWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoE
HousingIP30 protection according to EN 60529IP30 protection according to EN 60529IP30 protection according to EN 60529IP30 protection according to EN 60529IP30 protection according to EN 60529IP30 protection according to EN 60529
MaterialSECCSECCSECCAluminumAluminumAluminum
Dimension (W x H x D)32 x 90 x 110 mm32 x 90 x 110 mm32 x 90 x 110 mm45.3 x 89.6 x 110 mm45.3 x 89.6 x 110 mm45.3 x 89.6 x 110 mm
Weight420g420g420g350g350g350g
InstallationDIN-rail or wall-mount (optional)DIN-rail or wall-mount (optional)DIN-rail or wall-mount (optional)DIN-rail or wall-mount (optional)DIN-rail or wall-mount (optional)DIN-rail or wall-mount (optional)
Operating Temperature-40 °C to 70 °C (-40 °F to 158 °F)-40 °C to 70 °C (-40 °F to 158 °F)-40 °C to 70 °C (-40 °F to 158 °F)-40 °C to 70 °C (-40 °F to 158 °F)-40 °C to 70 °C (-40 °F to 158 °F)-40 °C to 70 °C (-40 °F to 158 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)-40 °C to 85 °C (-40 °F to 185 °F)-40 °C to 85 °C (-40 °F to 185 °F)-40 °C to 85 °C (-40 °F to 185 °F)-40 °C to 85 °C (-40 °F to 185 °F)-40 °C to 85 °C (-40 °F to 185 °F)
Ambient Relative Humidity5% to 95%, 55 °C (Non-condensing)5% to 95%, 55 °C (Non-condensing)5% to 95%, 55 °C (Non-condensing)5% to 95%, 55 °C (Non-condensing)5% to 95%, 55 °C (Non-condensing)5% to 95%, 55 °C (Non-condensing)
SafetyUL 61010-1, IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2UL 61010-1, IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2UL 61010-1, IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2UL 61010-1, IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2UL 61010-1, IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2UL 61010-1, IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2
EMCEN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A)EN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A)EN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A)EN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A)EN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A)EN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A)
Rail TrafficEN50155 / EN50121-1 / EN50121-3-2 / EN50121-4EN50155 / EN50121-1 / EN50121-3-2 / EN50121-4EN50155 / EN50121-1 / EN50121-3-2 / EN50121-4EN50155 / EN50121-1 / EN50121-3-2 / EN50121-4EN50155 / EN50121-1 / EN50121-3-2 / EN50121-4EN50155 / EN50121-1 / EN50121-3-2 / EN50121-4
IEC 61000-4-2ESD: Contact Discharge: ±8KV, Level 4 Air Discharge: ±15KV, Level 4ESD: Contact Discharge: ±8KV, Level 4 Air Discharge: ±15KV, Level 4ESD: Contact Discharge: ±8KV, Level 4 Air Discharge: ±15KV, Level 4ESD: Contact Discharge: ±8KV, Level 4 Air Discharge: ±15KV, Level 4ESD: Contact Discharge: ±8KV, Level 4 Air Discharge: ±15KV, Level 4ESD: Contact Discharge: ±8KV, Level 4 Air Discharge: ±15KV, Level 4
IEC 61000-4-3RS: 80-1000MHz: 10(V/m) 1.4-2.0GHz: 3 (V/m) 2.0-2.7GHz: 1(V/m) Level 3RS: 80-1000MHz: 10(V/m) 1.4-2.0GHz: 3 (V/m) 2.0-2.7GHz: 1(V/m) Level 3RS: 80-1000MHz: 10(V/m) 1.4-2.0GHz: 3 (V/m) 2.0-2.7GHz: 1(V/m) Level 3RS: 80-1000MHz: 10(V/m) 1.4-2.0GHz: 3 (V/m) 2.0-2.7GHz: 1(V/m) Level 3RS: 80-1000MHz: 10(V/m) 1.4-2.0GHz: 3 (V/m) 2.0-2.7GHz: 1(V/m) Level 3RS: 80-1000MHz: 10(V/m) 1.4-2.0GHz: 3 (V/m) 2.0-2.7GHz: 1(V/m) Level 3
IEC 61000-4-4EFT: AC Power Port: ±2.0KV, Level 3 DC Power Port: ±2.0KV, Level 3 Signal Port: ±2.0KV, Level 4EFT: AC Power Port: ±2.0KV, Level 3 DC Power Port: ±2.0KV, Level 3 Signal Port: ±2.0KV, Level 4EFT: AC Power Port: ±2.0KV, Level 3 DC Power Port: ±2.0KV, Level 3 Signal Port: ±2.0KV, Level 4EFT: AC Power Port: ±2.0KV, Level 3 DC Power Port: ±2.0KV, Level 3 Signal Port: ±2.0KV, Level 4EFT: AC Power Port: ±2.0KV, Level 3 DC Power Port: ±2.0KV, Level 3 Signal Port: ±2.0KV, Level 4EFT: AC Power Port: ±2.0KV, Level 3 DC Power Port: ±2.0KV, Level 3 Signal Port: ±2.0KV, Level 4
IEC 61000-4-5Surge: AC Power Port: Line-to-Line ±1.0KV, Level 3 AC Power Port: Line-to-Earth ±2.0KV, Level 3 DC Power Port: Line-to-Line ±1.0KV, Level 3 DC Power Port: Line-to-Earth ±2.0KV, Level 3 Signal Port: Line-to-Earth ±2.0KV, Level 3Surge: AC Power Port: Line-to-Line ±1.0KV, Level 3 AC Power Port: Line-to-Earth ±2.0KV, Level 3 DC Power Port: Line-to-Line ±1.0KV, Level 3 DC Power Port: Line-to-Earth ±2.0KV, Level 3 Signal Port: Line-to-Earth ±2.0KV, Level 3Surge: AC Power Port: Line-to-Line ±1.0KV, Level 3 AC Power Port: Line-to-Earth ±2.0KV, Level 3 DC Power Port: Line-to-Line ±1.0KV, Level 3 DC Power Port: Line-to-Earth ±2.0KV, Level 3 Signal Port: Line-to-Earth ±2.0KV, Level 3Surge: AC Power Port: Line-to-Line ±1.0KV, Level 3 AC Power Port: Line-to-Earth ±2.0KV, Level 3 DC Power Port: Line-to-Line ±1.0KV, Level 3 DC Power Port: Line-to-Earth ±2.0KV, Level 3 Signal Port: Line-to-Earth ±2.0KV, Level 3Surge: AC Power Port: Line-to-Line ±1.0KV, Level 3 AC Power Port: Line-to-Earth ±2.0KV, Level 3 DC Power Port: Line-to-Line ±1.0KV, Level 3 DC Power Port: Line-to-Earth ±2.0KV, Level 3 Signal Port: Line-to-Earth ±2.0KV, Level 3Surge: AC Power Port: Line-to-Line ±1.0KV, Level 3 AC Power Port: Line-to-Earth ±2.0KV, Level 3 DC Power Port: Line-to-Line ±1.0KV, Level 3 DC Power Port: Line-to-Earth ±2.0KV, Level 3 Signal Port: Line-to-Earth ±2.0KV, Level 3
IEC 61000-4-6CS: Conducted: 10 Vrms, Level 3CS: Conducted: 10 Vrms, Level 3CS: Conducted: 10 Vrms, Level 3CS: Conducted: 10 Vrms, Level 3CS: Conducted: 10 Vrms, Level 3CS: Conducted: 10 Vrms, Level 3
IEC 61000-4-8PFMF: Enclosure: 30 A/m, Level 4PFMF: Enclosure: 30 A/m, Level 4PFMF: Enclosure: 30 A/m, Level 4PFMF: Enclosure: 30 A/m, Level 4PFMF: Enclosure: 30 A/m, Level 4PFMF: Enclosure: 30 A/m, Level 4
IEC 61000-4-11DIP: AC Power Port: -DIP: AC Power Port: -DIP: AC Power Port: -DIP: AC Power Port: -DIP: AC Power Port: -DIP: AC Power Port: -
ShockMIL-STD-810F Method 516.5vMIL-STD-810F Method 516.5vMIL-STD-810F Method 516.5vMIL-STD-810F Method 516.5vMIL-STD-810F Method 516.5vMIL-STD-810F Method 516.5v
DropMIL-STD-810F Method 516.5MIL-STD-810F Method 516.5MIL-STD-810F Method 516.5MIL-STD-810F Method 516.5MIL-STD-810F Method 516.5MIL-STD-810F Method 516.5
VibrationMIL-STD-810F Method 514.5 C-1 & C-2MIL-STD-810F Method 514.5 C-1 & C-2MIL-STD-810F Method 514.5 C-1 & C-2MIL-STD-810F Method 514.5 C-1 & C-2MIL-STD-810F Method 514.5 C-1 & C-2MIL-STD-810F Method 514.5 C-1 & C-2
High AltitudeCertified for 4000m altitude according to IEC 60068-2-13Certified for 4000m altitude according to IEC 60068-2-13Certified for 4000m altitude according to IEC 60068-2-13Certified for 4000m altitude according to IEC 60068-2-13Certified for 4000m altitude according to IEC 60068-2-13Certified for 4000m altitude according to IEC 60068-2-13
RoHSYesYesYesYesYesYes

Les performances réelles peuvent varier en fonction des paramètres, du câblage, de la température, de la configuration du réseau, de l’interface, de la compatibilité des appareils, des conditions environnementales et des conditions sur site, ainsi que d’autres facteurs similaires. Les références à la puissance électrique, à la vitesse du signal ou de traitement, à la portée ou à la distance du signal, au chiffrement des données, à la capacité de stockage, aux caractéristiques d’affichage ou à d’autres indicateurs de performance reposent sur des conditions optimales issues des normes de l’industrie et sont fournies à titre informatif uniquement. Les spécifications peuvent être modifiées sans préavis.
