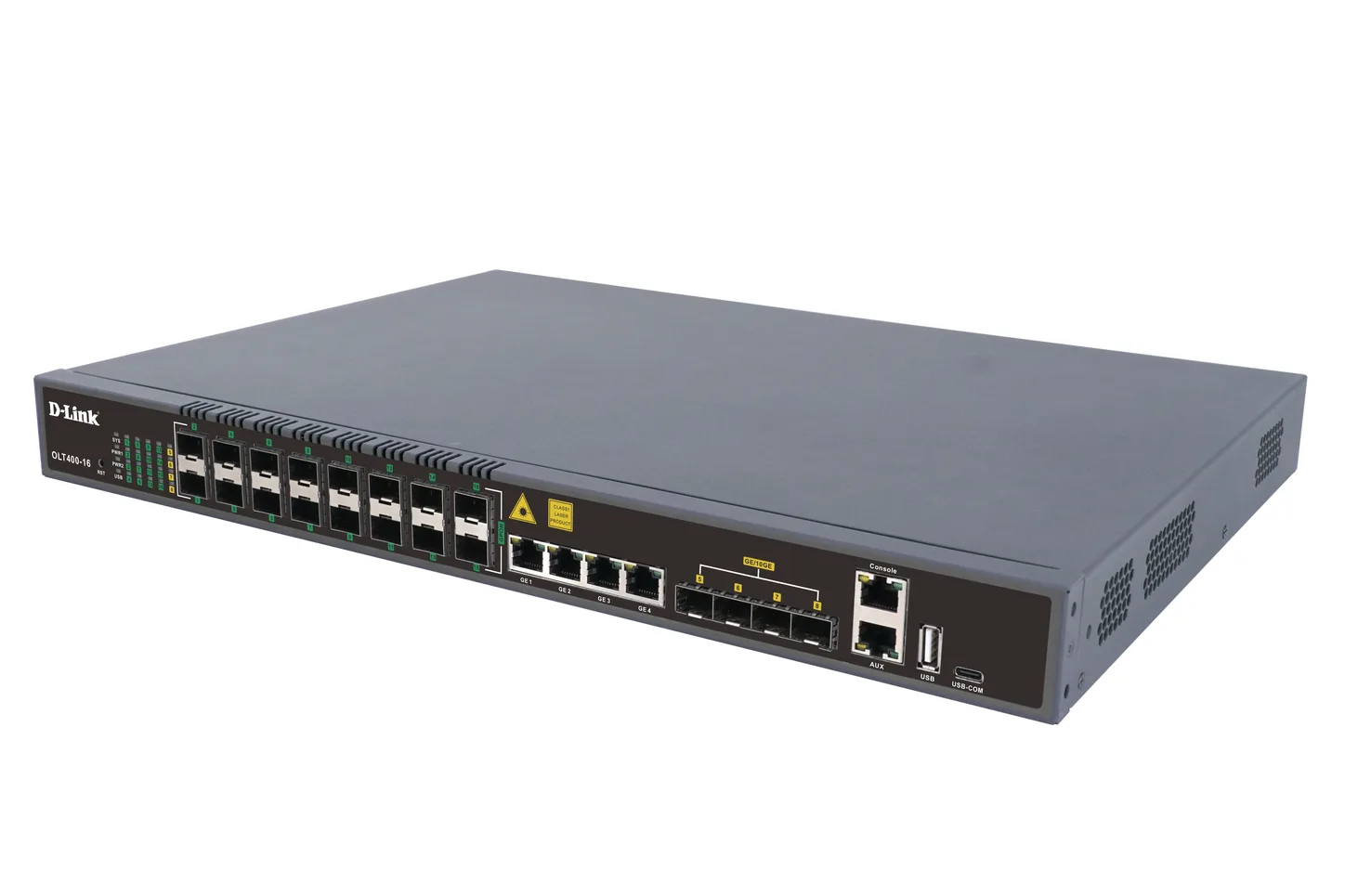

OLT400-16

GPON OLT with 16 PON ports, 4 Gigabit Ethernet ports, 4 10G SFP+ ports

Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry
Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol
1U height 16PON OLT product in compact design of Pizza-Box
Complete PON protection switching function
Layer 2 Switching Function: OLT is equipped with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, rate limit, port isolate, queue technology, flow control technology, ACL and so on, which provides technical guarantee for the development of multi-service integrated.
QOS Guarantee: GPON Products maintain fully-improved DBA with excellent QoS service capabilities. DBA meets different QoS requirements from different service flow in latency, jitter, packet loss rate.
Easy-to-Use Management System: Support management method of CLI, WEB, SNMP, TELNET, SSH and meet OMCI standard, through OMCI channel protocol service management can be realized, including ONT function parameter set, T-CONT business lines and amount, QoS parameters, configuration information request, performance statistics, auto-reporting of running events in system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.

Où acheter Télécharger la fiche technique Voir les spécifications

Présentation

GPON OLT400-16 completely meets relative standard of ITU G.984.x and FSAN, which is a 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink 10G SFP+ ports, and 16 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, the system supports up to 2048 GPON terminals.

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications.

Specification
Type (Management Rack)	1U 19-inch standard box
Gigabit (Uplink Port)	4 10/100/1000M auto-negotiation Ethernet ports
10-Gigabit (Uplink Port)	4 SFP+ interfaces
Physical interface (PON Port)	SFP slots
Interface type (PON Port)	ITU-TG.984.2 Class B+/Class C+/Class C++/Class C+++
Max splitting ratio (PON Port)	1:128
Management Port	1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port
USB Port	1 USB interface (It’s used to backup configuration, upgrade program, and record log information)
Transmission distance (PON Port attribute)	20KM
Port rate (PON Port attribute)	Downstream: 2.5Gbps Upstream: 1.25Gbps
Wavelength (PON Port attribute)	Forwarding: 1490nm Receiving: 1310nm
Interface type (PON Port attribute)	SC/UPC
Fiber type (PON Port attribute)	9/125μm SMF (Single Mode Fiber)
Light transmission power (PON Port attribute)	Class B+ +1.5～+5dBm Class C+ +3～+7dBm Class C++ +4.5～+8dBm Class C+++ +9～+13dBm
Receiving sensitivity (PON Port attribute)	Class B+ -28dBm Class C+ -30dBm Class C++ -30dBm Class C+++ -33dBm
Saturation power (PON Port attribute)	Class B+ -8dBm Class C+ -12dBm Class C++ -12dBm Class C+++ -15dBm
Business capabilities	Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. PON function configuration management: Like ONT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration
Backplane Bandwidth	208G
Size	442mm(L)319mm(W)43mm(H)
Weight	NW: 4.8kg GW: 6.4kg
220VAC (Power supply)	AC: 90V～240V，47/63Hz
-48DC (Power supply)	DC:-40V～-72V
Maximum power	85W
Working temperature (Working environment)	0 ～50℃
Storage temperature (Working environment)	-40～85℃
Relative humidity (Working environment)	5～90% (Non-condensing)
Ordering Information (OLT400-16)	1 U standalone GPON OLT with 16 PON ports, 1 USB interface,4 uplink Gigabit ports, 4 uplink 10 gigabit optical ports and power supply of 220VAC, support dual power redundancy configuration.
Ordering Information (OLT400-16DC)	1 U standalone GPON OLT with 16 PON ports, 1 USB interface,4 uplink Gigabit ports, 4 uplink 10 gigabit optical ports and power supply of -48VDC, support dual power redundancy configuration.
Ordering Information (OLTSFP-BP)	GPON OLT SFP module, Class B+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
Ordering Information (OLTSFP-CP)	GPON OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
Ordering Information (OLTSFP-CPP/A2)	GPON OLT SFP module, Class C+++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface

Les performances réelles peuvent varier en fonction des paramètres, du câblage, de la température, de la configuration du réseau, de l’interface, de la compatibilité des appareils, des conditions environnementales et des conditions sur site, ainsi que d’autres facteurs similaires. Les références à la puissance électrique, à la vitesse du signal ou de traitement, à la portée ou à la distance du signal, au chiffrement des données, à la capacité de stockage, aux caractéristiques d’affichage ou à d’autres indicateurs de performance reposent sur des conditions optimales issues des normes de l’industrie et sont fournies à titre informatif uniquement. Les spécifications peuvent être modifiées sans préavis.
