NCB-C6UXXXR-305-LS

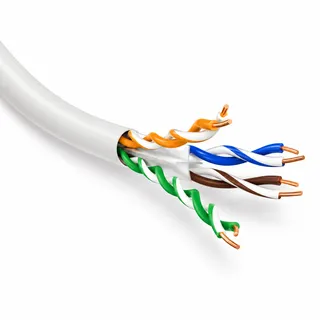

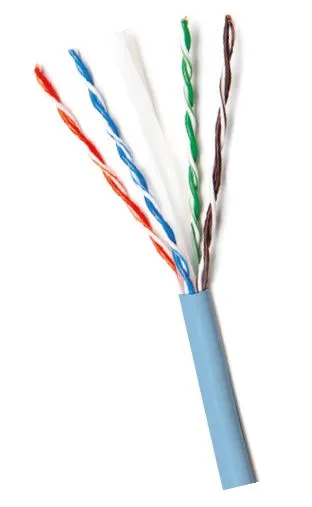

Cat6 UTP 23 AWG LSZH Cable
2 models
- Comply with Cat 6 specifications
- 4-pair unshielded twisted pair (UTP) cable
- PE insulation
- PE central cross
- LSZH Jacket
- Verified compliant with EIA/TIA standards by ETL & UL-listed
- Packaged in an easy-to-pull reel in a box for easier installation
StandardsISO/IEC 11801
Overview
Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000BASE-T) standard. Operates at a bandwidth of 250 MHz. This cable well exceeds the requirements of new standard ANSI/TIA-568.2-E and ISO/IEC 11801.
Construction
| Conductor | 23 AWG Solid bare Copper |
|---|---|
| Insulation | High Density Polyethylene |
| Pairs | 2 Insulated conductors twisted together |
| Separator | Polyolefin |
| Sheath | LSZH |
| Cable Diameter | 6.0± 0.2 mm |
Electrical Properties
| Characteristic Impedance | 100±15Ω |
|---|---|
| Conductor Resistance | ≤ 9.38Ω/100 m |
| Mutual Capacitance | <5.6 nF/100 m |
| Resistance Unbalance | 5% Max |
| Capacitance Unbalance | 330 pF/100 m |
| Delay Skew | < 45 ns |
Mechanical Properties
| Bending Radius | < 4 x cable diameter at -20°C ± 1°C |
|---|---|
| Pulling Force | 11.5 kg |
| Installation Temperature Range | 0°C to +50°C |
| Operating Temperature Range | -20°C to +70°C |
Transmission characteristics
| Frequency (MHz) | Insertion loss (dB/100M) | NEXT (dB) | RL (dB) | PSNEXT (dB) | ACR-F (dB) | PS ACR-F (dB) |
|---|---|---|---|---|---|---|
| 1 | 1.9 | 65 | 19.1 | 62 | 64.2 | 61.2 |
| 4 | 3.5 | 64.1 | 21 | 61.8 | 52.1 | 49.1 |
| 8 | 5 | 59.4 | 21 | 57 | 46.1 | 43.1 |
| 10 | 5.5 | 57.8 | 21 | 55.5 | 44.2 | 41.2 |
| 16 | 7 | 54.6 | 20 | 52.2 | 40.1 | 37.1 |
| 20 | 7.9 | 53.1 | 19.5 | 50.7 | 38.2 | 35.2 |
| 25 | 8.9 | 51.5 | 19 | 49.1 | 36.2 | 33.2 |
| 31.25 | 10 | 50 | 18.5 | 47.5 | 34.3 | 31.3 |
| 62.5 | 14.4 | 45.1 | 16 | 42.7 | 28.3 | 25.3 |
| 100 | 18.6 | 41.8 | 14 | 39.3 | 24.2 | 21.2 |
| 200 | 27.4 | 36.9 | 11 | 34.3 | 18.2 | 15.2 |
| 250 | 31.1 | 35.3 | 10 | 32.7 | 16.2 | 13.2 |
Color code
| Pair | Color |
|---|---|
| 1-2 | White/Orange Stripe and Orange |
| 3-6 | White/Green Stripe and Green |
| 4-5 | White/Blue Stripe and Blue |
| 7-8 | White/Brown Stripe and Brown |
Eligible for the D-Link Cabling System 25-year Warranty when the installation is designed, supplied, installed and tested by a D-Link approved partner.
Ordering information
Available models
| PART CODE | DESCRIPTION | COLOR |
|---|---|---|
| NCB-C6ULBUR-305-LS | Cat6 UTP 23 AWG LSZH Solid Cable-305 m/Roll - Light Blue Color (Dca Rated) | Light Blue |
| NCB-C6UGRYR-305-LS | Cat6 UTP 23 AWG LSZH Solid Cable-305 m/Roll - Gray Color (Eca Rated) | Gray |
