The DAP-E7240 BE7200 Ceiling Mount Access Point is designed for everyday networking needs in general business and commercial environments, delivering reliable, stable, and secure wireless connectivity. With Wi-Fi 7 dual-band technology and a 4x4 spatial stream design, advanced security features, and centralized management, it effectively meets the wireless requirements of offices and commercial spaces.
DAP-E7240
BE7200 Wi-Fi 7 Dual-Band Access Point
- Wi-Fi 7 4x4+4x4 Dual-Band BE7200 solution
- Multi-Link Operation (MLO) improves transmission efficiency and connection stability
- 4096-QAM modulation enhances data throughput and spectrum efficiency
- Each SSID can be configured with a dedicated captive portal page
- Customizable login pages for branding, advertising, or promotional purposes
- Supports Nuclias Unity, Nuclias hardware controller, and Nuclias software controller for centralized management, monitoring, and maintenance
- Provides flexible deployment options with centralized cloud or on-premises management
- Latest WPA3 Personal/Enterprise encryption
- Supports 802.1x and MAC/IP ACL
- Establish complete security protection for wireless network
- Each SSID can have a different VLAN tag
- One EAP can serve different groups for users and access control for each group
Overview
Wi-Fi 7 Connectivity
The DAP-E7240 leverages core Wi-Fi 7 technologies such as Multi-Link Operation (MLO) and 4K QAM, enabling dynamic traffic allocation across multiple frequency bands to improve performance, reduce latency, and increase overall network capacity.
10-Gigabit Ethernet Port
The DAP-E7240 also delivers ultra-fast wired connectivity, significantly reducing network latency and ensuring high throughput for bandwidth-intensive applications. With support for 10 GbE speeds, the network infrastructure is future-ready, providing the scalability and performance needed to meet growing demands and support upcoming upgrades without bottlenecks.
Powered by PoE
The DAP-E7240 can be powered directly via a PoE switch, enabling flexible installation without the need for additional power outlets. This simplifies deployment and reduces overall installation costs, making network expansion more efficient and cost-effective.
SSID-VLAN Mapping
The DAP-E7240 supports SSID-VLAN Mapping, allowing administrators to assign different SSIDs to specific VLAN tags. This capability effectively segregates user group access without compromising network security, ensuring traffic isolation and enhancing overall network management.
Multiple Operational Modes
The DAP-E7240 offers Multiple Operational Modes to accommodate diverse deployment scenarios. In addition to standard AP mode, it supports WDS and WDS+AP modes, providing flexible options for extending network coverage and integrating with existing infrastructure.
Customizable Captive Portal
The DAP-E7240 offers a customizable Captive Portal, enabling network administrators to create personalized login pages. This not only enhances network security through proper user authentication but also strengthens user engagement with tailored branding and messaging.
Centralized Management
The DAP-E7240 supports Nuclias Unity, as well as Nuclias hardware and software controllers, enabling centralized management, monitoring, and maintenance. Users can easily automate, monitor, and scale their network operations through an intuitive interface and real-time data insights. It provides flexible deployment options with centralized cloud or on-premises management, making network administration simpler and allowing seamless expansion as the network grows. Centralized management ensures optimal performance and security while saving time and improving efficiency.
Advanced Security
The DAP-E7240 delivers Advanced Security features, including the latest WPA3 Personal and Enterprise encryption and MAC/IP Access Control Lists (ACLs). These robust security measures ensure networks with higher security requirements are well protected against unauthorized access and potential threats.
DAP-E7240
Specifications

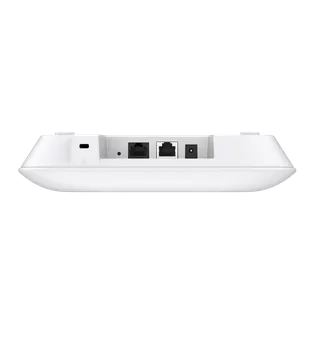

| Device Interfaces | 1 x 10 Gigabit Ethernet PoE LAN port 1 x RJ45 Console port 1 x Reset button 1 x Power input connector |
|---|---|
| LED | Power/Status |
| Antenna | 4 x 2.7 dBi @ 2.4GHz 4 x 3.9 dBi @ 5GHz |
| Wi-Fi Data Rate²,³ | 2.4 GHz up to 1376 Mbps 5 GHz up to 5764 Mbps |
| IEEE Standard² | IEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3at PoE IEEE 802.3u/ab/an/bz IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Maximum Output Power¹ | 26 dBm (2.4GHz) 26 dBm (5GHz) |
| Security Protocol | WPA/WPA2/WPA3™ Personal/Enterprise SSID broadcast disable MAC address access control WEP 64/128-bit Enhanced Open Internal RADIUS server |
| Operating Frequency³ | 2.4 - 2.483 GHz 5.15 - 5.85 GHz |
| Device Management | Web (HTTP/HTTPS) Nuclias Unity Nuclias hardware and software controller Telnet/SSH SNMP |
| Dimensions | 223.04 x 223.04 x 44.5 mm |
| Weight | 1171.4 g |
| Power Input | 802.3at or 12V/2.5A |
| Max Power Consumption | 25.2W |
| Storage Temperature | -20 to 65 °C (-4 to 149 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Certifications⁴ | CE FCC LVD |
| Package Contents | DAP-E7240 Ceiling Brackets Mounting Plate Quick Start Guide |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
