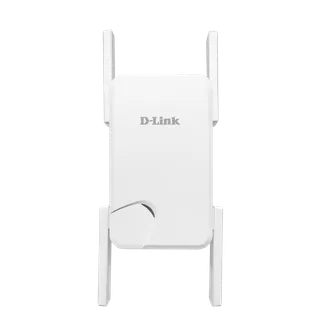

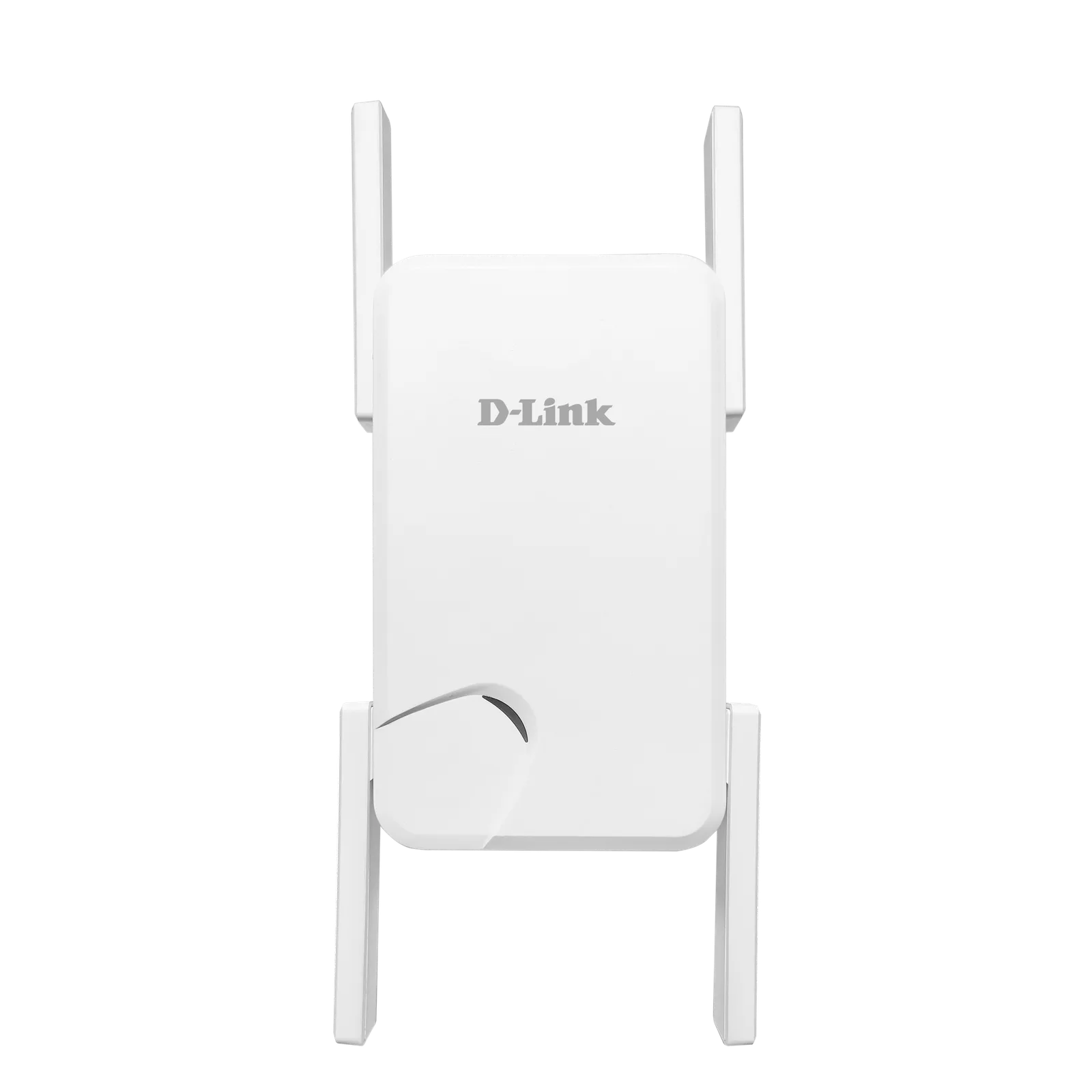

The DAP-X1960 BE3600 Wi-Fi 7 Range Extender expands your existing Wi-Fi network with the latest Wi-Fi 7 technology. It delivers combined speeds of up to 3570 Mbps and dual-band connectivity in a compact, wall-plug design.
DAP-X1960
BE3600 Wi-Fi 7 Range Extender
- Wi-Fi 7 - Up to 3.57 Gbps: Faster speeds, greater capacity, and improved performance.
- Dual-Band Wi-Fi with MLO: Up to 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, with MLO for improved speed and lower latency.
- WPA/WPA2/WPA3 Security: Helps keep your wireless connection protected.

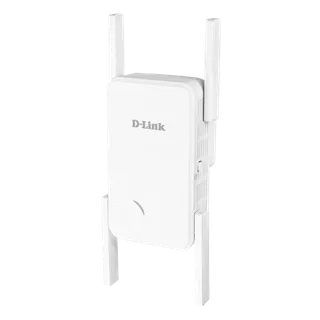

- 4x External Antennas: Provides stronger signals and wider coverage.

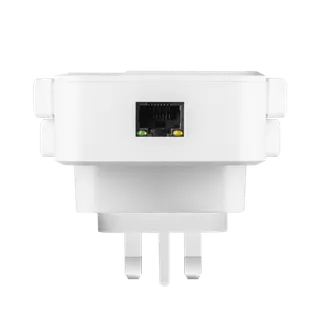

- 2.5 Gigabit Ethernet: High-speed wired connectivity for PCs, TVs, game consoles, and more.
- AP Mode: Add Wi-Fi connectivity to your wired network.
- Mesh Support: Expand coverage for whole-home Wi-Fi.
- Compact Design: Plug-in design saves space and reduces cable clutter.
Overview
Extend Your Wireless Network and More
Enjoy wider, faster Wi-Fi coverage with speeds of up to 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz. Mesh support expands coverage, while the 2.5 Gigabit Ethernet port provides high-speed wired connectivity. AP Mode adds further flexibility.
Easy to Set Up, Easy to Use
Simply plug in the DAP-X1960 and follow the built-in setup process or use the D-Link Wi-Fi Assist app for guided setup. Place it where you need stronger coverage and enjoy reliable Wi-Fi throughout your home or office.
Compact, Convenient Design

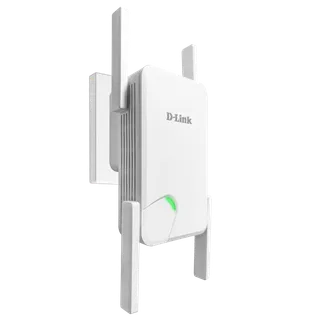

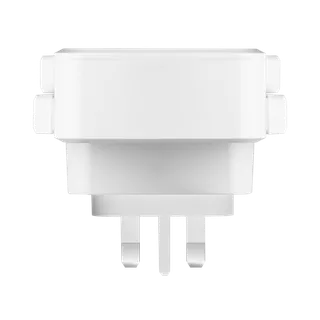

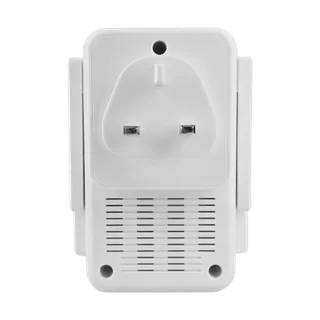

Its space-saving wall-plug design eliminates the need for a separate power adapter and cable. The built-in LED indicator helps you find the ideal placement for better coverage.
DAP-X1960
Specifications
| Device Interfaces | 1 x 2.5 Gigabit Ethernet (WAN/LAN) port 1 x WPS/Reset button |
|---|---|
| Antenna Type | 4 x External antennas, 5 dBi |
| CPU | MT7987B + MT7990AN + MT7976CN |
| RAM / Flash | 512MB DDR3 / 128MB NAND |
| Wi-Fi Data Rate¹ | 2.4 GHz up to 688 Mbps 5 GHz up to 2,882 Mbps |
| IEEE Standards | 2.4 GHz: IEEE 802.11be/ax/n/g/b 5 GHz: IEEE 802.11 be/ax/ac/n/a |
| Transmission Power | 2.4 GHz: 20dBm+/-2dBm 5 GHz: 20dBm+/-2dBm |
| Wireless Features | Multi-Link Operation (MLO) OFDMA 4K-QAM Mesh Fast Roaming (802.11k/v/r) Multi-RUs MU-MIMO 160 MHz Channel |
| Security Protocol | WPA-Personal WPA2-Personal WPA3-Personal |
| Operation Modes | Access Point (AP) mode Repeater mode Mesh mode |
| Protocol | IPv4/IPv6 |
| Device Management | D-Link Wi-Fi Assist App Web UI |
| Dimensions | 121x83x86mm |
| Weight | 203g |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | up to 10W |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 0% to 90%, non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
