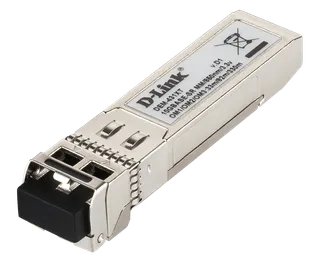

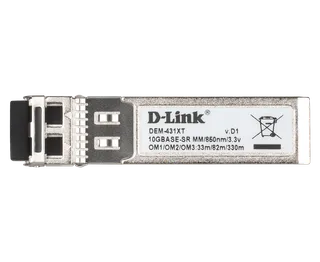

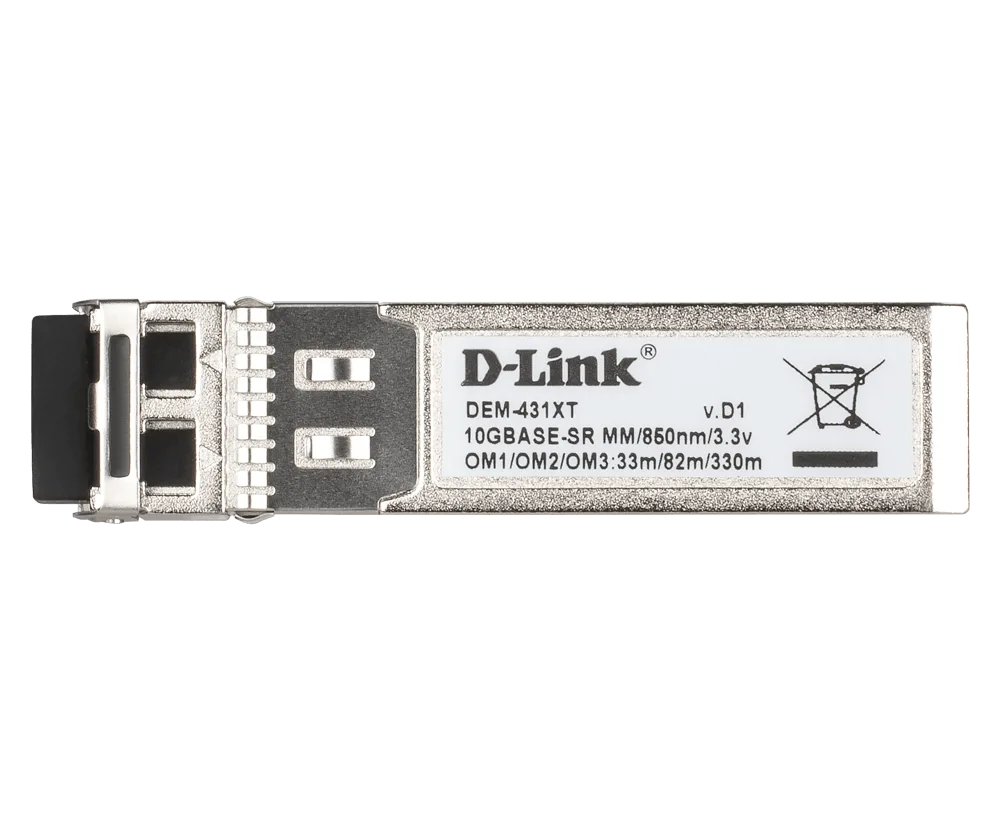

DEM-431XT
Overview
D-Link’s 10G SFP+ modules are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power dissipation, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot-Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This allows modules to be added or removed without interrupting the network.

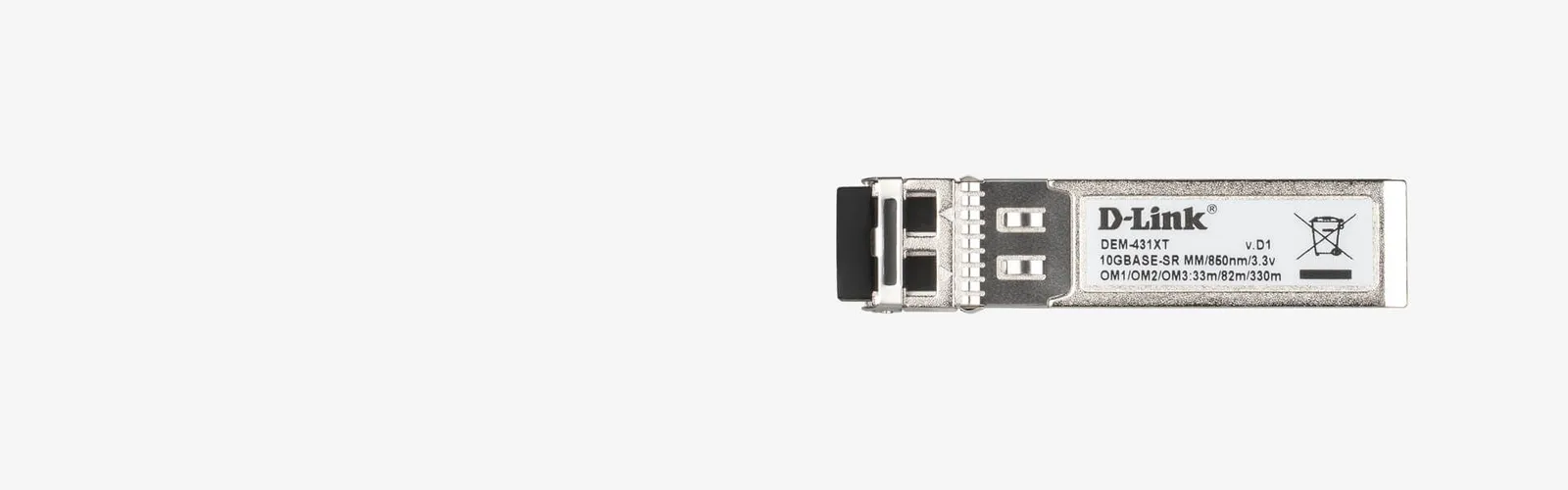

DEM-431XT
| Hot Pluggable | Yes |
|---|---|
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| Compliant Standard | IEEE-802.3ae 10GBASE-SR |
| Transceiver Type | SFP+ |
| Fiber Channel FC-PI standard | 1200-Mx-SN-I |
| Fiber Media support | Multi-Mode |
| Distance | 62.5 µm, OM1 200 MHz-km: 33 m; 50/125 µm, OM2 500 MHz-km: 82 m; 50/125 µm, OM3 2000 MHz-km: 300 m; 50/125 µm, OM4 2000 MHz-km: 300 m |
| Speed | 10 Gbps |
| Connector | Duplex LC Connector |
| Single/Bi Direction | Single Direction |
| Wavelength | 850 nm |
| Output Optical Power (TX Optical Power) | Max.: -1 dBm; Min.: -5 dBm |
| Input Optical Power (RX Optical Power) | Max.: 0 dBm; Min.: -11.5 dBm |
| Sensitivity | -11.5 dBm |
| Cable Type | Multi-mode 50/125 um or 62.5/125 um fiber |
| Power | 3.3 V |
| Max Input Current | 300 mA |
| Power Budget (MIN Power Budget) | 6.5 dB |
| MAX Power Budget | 10.5 dB |
| Heat Generated | 2.376 kJ/h |
| MTBF (hours) | 213,975 |
| Digital Diagnostics Monitoring | Not supported |
| Operation Temperature | 0 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity (Operating) | 5 to 95% |
| Humidity (Storage) | 5 to 95% |
| Dimension ( W x D x H ) | 13.7 x 55.4 x 8.5 mm (0.53 x 2.18 x 0.33 inches), compliant with SFF8432 |
| Weight | 20 g (0.04 lbs) |
| Bail Latch Color | Beige |
| EMI | FCC Class B, ICES-003 Class B, CE Class B |
| Safety | LVD |
| Hardware version | A1 |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
