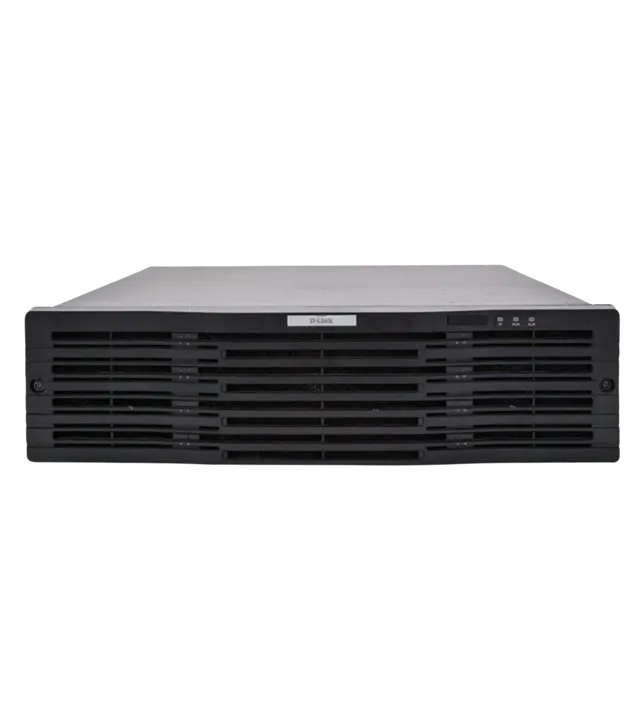

F500-EN16
3U 16 HDDs Mini SAS Disk Enclosure

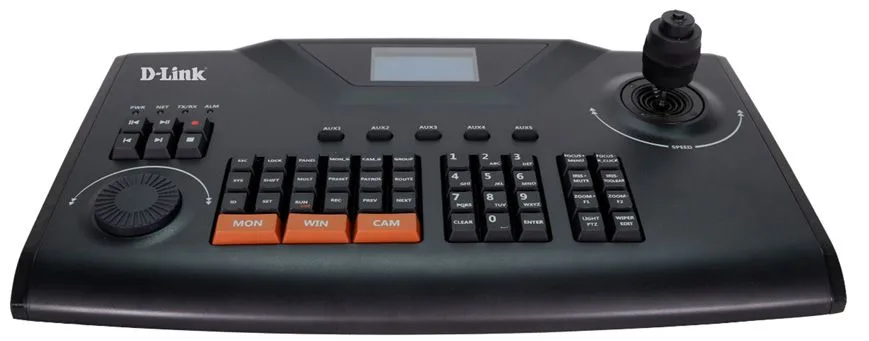

DKB-F100-J
Network Keyboard
- LCD screen display
- Four-dimensional joystick control
- Based on IP network
- Support multiple user permissions
- Connectable to NVR to control NVR menu and PTZ operations
- Multiple devices can be connected
DKB-F100-J
Specifications
| Joystick | four-dimensional joystick |
|---|---|
| Ethernet port | 1 RJ-45 10 M / 100 M adaptive Ethernet port |
| USB Interface | 1 USB 2.0 interface |
| Serial Interface | 1 RS-232, 2 RS-485 |
| Power Supply | 12V DC |
| Consumption | 5W |
| Working Temperature | -10°C ~ + 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 47mm×270mm×440mm(1.9"×10.6"×17.3") |
| Weight | <1kg |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
