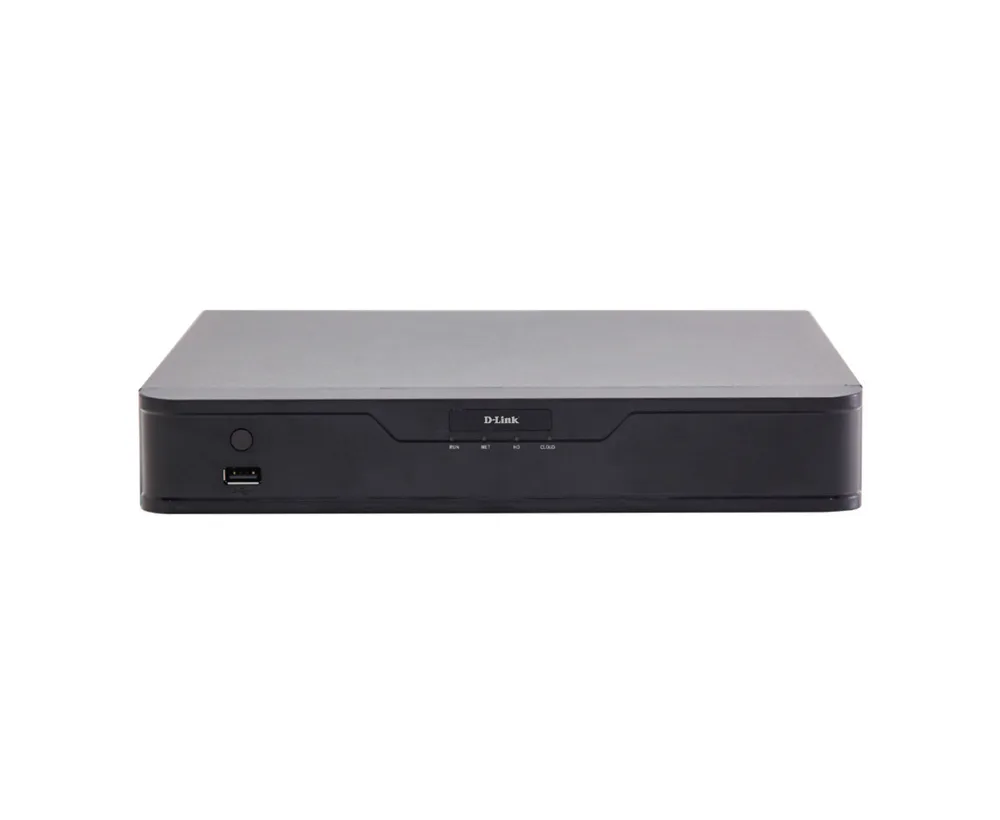

DNR-F5104E-P4
4 Channel PoE Network Video Recorder
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
DNR-F5104E-P4
Specifications
| IP Video Input | 4-ch |
|---|---|
| Two-way Audio Input | 1-ch, RCA |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 1-ch, RCA |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 4-ch |
| Corridor Mode Screen | 3/4 |
| Decoding format | Ultra 265/H.265/H.264 |
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30 |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") |
| Weight (without HDD) | 1kg (2.20 lb) |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
