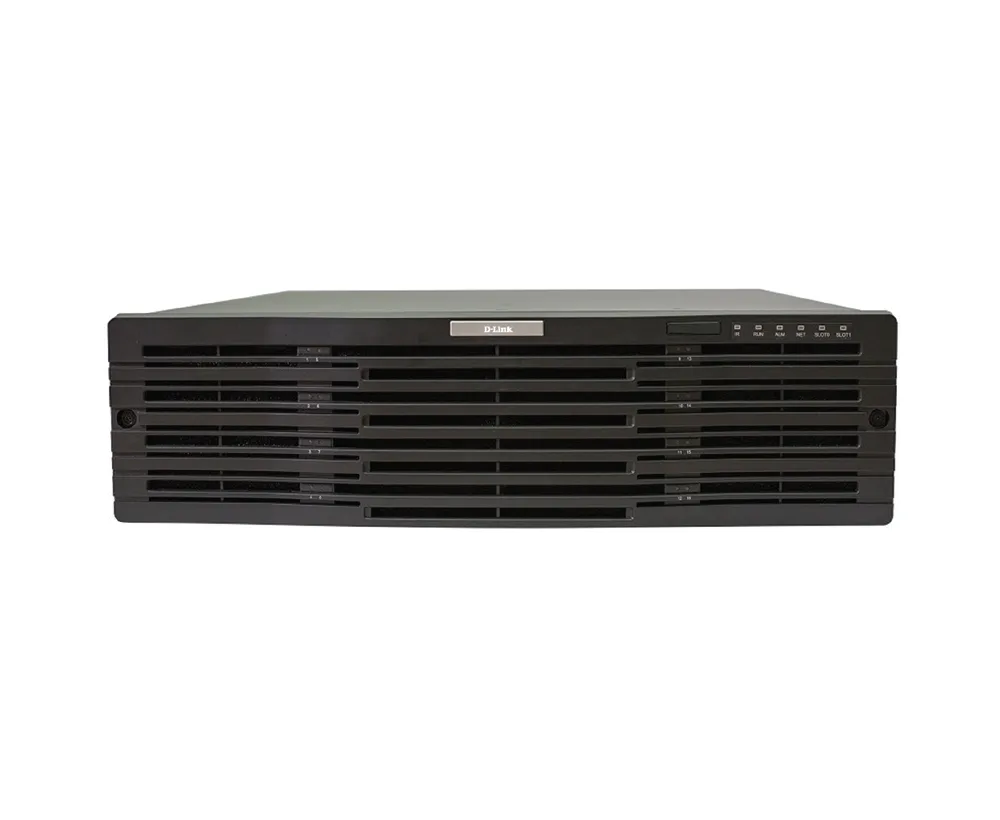

DNR-F516-64
64 Channel Network Video Recorder
- Support Ultra 265/H.265/H.264 Video Formats
- 64-Channel Input
- Third-party IP Cameras Supported with ONVIF Conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) Resolution
- HDMI1, HDMI2 and VGA Independent Outputs Provided
- Up to 12 Megapixels Resolution Recording
- Redundant Power Supply Optional
- 2 Decoding Cards Optional, up to 12-ch HDMI
- Support HDD Hot Swap with RAID 0, 1, 5, 6, 10 Storage Scheme Configurable
- 16 SATA HDDs, up to 10TB for each HDD
DNR-F516-64
Specifications
| IP Video Input | 64-ch |
|---|---|
| Two-way Audio Input | 1-ch, BNC |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI1 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, BNC |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
| SATA | 16 SATA interfaces |
| Capacity | up to 10TB for each HDD |
| eSATA | 1 eSATA interface |
| miniSAS | 2 miniSAS ports |
| VCA Detection | Face Detection, Intrusion Detection, Cross Line Detection, Audio Detection, Defocus Detection, Scene Change Detection, Auto Tracking |
| VCA Search | Face Search, Behavior search |
| Statistical Analysis | People Counting |
| Array Type | RAID 0/1/5/6/10/50/60 |
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Rear panel: 4 x USB3.0 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| Decoding Card (optional) | 2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
| Power Output | 12V |
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 50 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH (non-condensing) |
| Chassis | 19-inch rack-mounted 3U chassis |
| Dimensions | 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") |
| Weight (without HDD) | ≤ 10 Kg ( 22.05 lb ) |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
