The DVX-2005F/V3 is a highly efficient IP phone system solution specifically designed for small and medium-sized enterprises (SMEs). It features 4 FXO interfaces and allows users to expand FXO lines using D-Link FXO gateways. The DVX-2005F/V3 supports up to 100 SIP extensions and 50 concurrent calls, ensuring excellent call quality even under high-load conditions. This system is convenient for SMEs to manage and maintain, with an easy upgrade process. It enables businesses to set up their own phone systems, enhancing company image and office efficiency. The DVX-2005F/V3 offers all essential telephony features, including call forwarding, call hold, follow me, voice mail, call billing, CRM integration, a smartphone client, and an operator panel. Incoming calls are efficiently routed by the integrated auto-attendant and hunt groups to ensure smooth caller navigation. It can utilize standard phone lines via an external phone line gateway or leverage cost-effective Internet telephony services, making it a versatile choice. This solution is ideal for restaurants, offices, retail stores, financial institutions, factories, and warehouses.

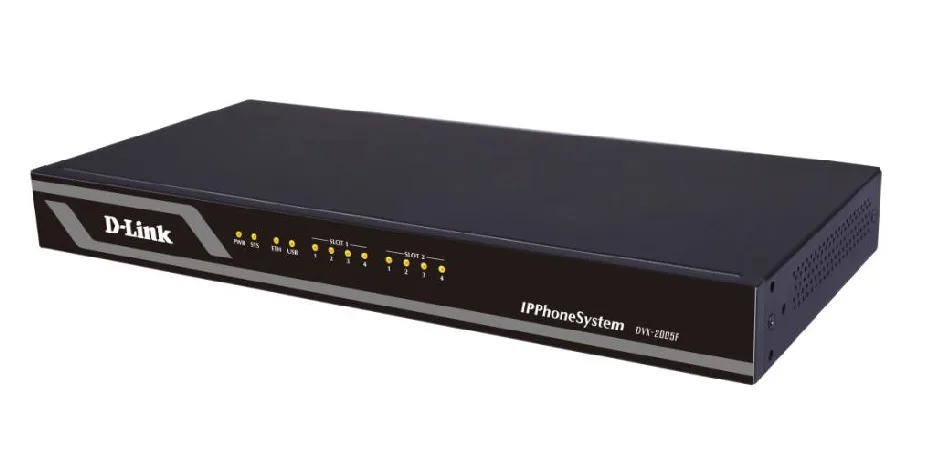

DVX-2005F
IP Phone System, 100 Extensions, 4 FXO
- Configurable as core IP or hybrid PBX.
- Switches calls & Manages routes.
- Connects callers with the outside world over IP/analog (POTS) and digital connections.
- Configurable as media gateway.
- Bridges legacy PSTN to the expanding world of IP telephony.
- Conversion between a wide range of communications protocols and media codecs.
- 400 hrs Recording (Internal Storage).
- 1TB USB Expansion Storage.
- Features built-in ACD systems.
- Remote agent capabilities.
- Advanced skills-based routing.
Overview
Easy Web Configuration
The DVX-2005F/V3's features are user-adjustable via its intuitive web configuration tool. Administrators can assign each extension a tailored profile of telephony features, ensuring the best match for a user's job function. Additionally, users can fine-tune their profiles via the web interface to align with their daily business needs.
3rd Party Compatibility
The DVX-2005F/V3 is compatible with third-party SIP systems, including standard SIP endpoints, CRM systems, and collaboration tools, enhancing its integration into existing IP voice communication infrastructures.
Extension Anywhere
Supporting up to 100 extensions, the DVX-2005F/V3 allows extensions to be located anywhere with Internet access. Multiple units can be deployed to increase the number of extensions or to unify a company with multiple locations under a single PBX system.
Endpoint Provisioning
Simplify endpoint deployment with the Plug-and-Play auto-provisioning feature. Users can scan a QR code for quick and seamless registration on softphone applications.
Billing
The built-in billing system eliminates the need for third-party software. It supports prepaid and postpaid billing, billing credits, flexible billing rates, and comprehensive billing statistics.
DVX-2005F
Specifications
| Protocols & Codecs | SIP, IAX2 Transport Protocols : UDP,TCP,TLS,SRTP Network Protocols : IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, NTP, SNTP, TFTP, SSH, HTTPS, LDAP Video Codecs : VP8,H.264,H.263+,H.263,H.261 Audio Codecs : Opus, G.722, G.711(a-law,u-law), G.729, G.726, GSM, SPEEX,AMR,AMR-WB |
|---|---|
| System Capacity & Telephony Features | 100 Extensions 50 Simultaneous Calls Unlimited SIP/IMS Trunks Unlimited IVR Levels Unlimited Incoming Routes Unlimited Outbound Routes Unlimited Phonebook Contacts Call Queue Caller ID Blacklist Call Spy Video Call Voicemail 3-way Calling Conference Call Wakeup Call Music On Ringback Distinctive Ringtone Auto Call Recording Smart DID Follow Me PIN Code Ring Group Call Back Do Not Disturb Call Forward DISA Switch Call Call Transfer Speed Dial Call Waiting Call Pickup IVR (Multi-layer) Call Parking One Touch Recording Web Extensions One Number Stations Paging & Intercom Time Conditions |
| Security & Network Features | Firewall based on iptables Geo-IP Security policy Intrusion auto detection and prevention IP Black/White List Extension Permit IP Network (WAN) : Static IP, DHCP, PPPoE VPN :PPTP,OpenVPN, DHCP Server & VLAN :(WAN&LAN Interface) Virtual IP SIP Proxy (NAT Traversal) |
| Dimension | 170mm*115mm*30mm |
| Weight | 0.6kg |
| Analog Interface | 4 Port(Interface standard RJ11; FXO outside line ) |
| CPU | ARM 4 Core |
| RAM | 1GB DDR3 |
| Storage | 16G SD Card (Industrial grade) USB (Extended Storage ) |
| USB Port | 1 , Support 1TB USB Expansion Storage |
| Ethernet Interface | WAN, LAN (10/100Mbps) |
| Power Input | DC 12V-1A |
| Power consumption | 230 Watts (maximum), AC 100~240V |
| Storage temperature | -20 to 55 Celsius (-4 - 131 F) |
| Working temperature | 0 to 40 Celsius (32 - 104 F) |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
