DWR-8211V
Overview
Built-in color display provides at-a-glance network status, device configuration, and Wi-Fi QR code sharing, no app or browser required.

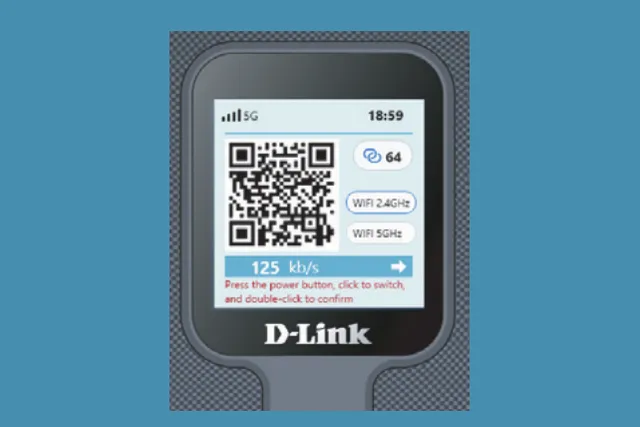

Signal strength, Wi-Fi status, WPS & QR code sharing

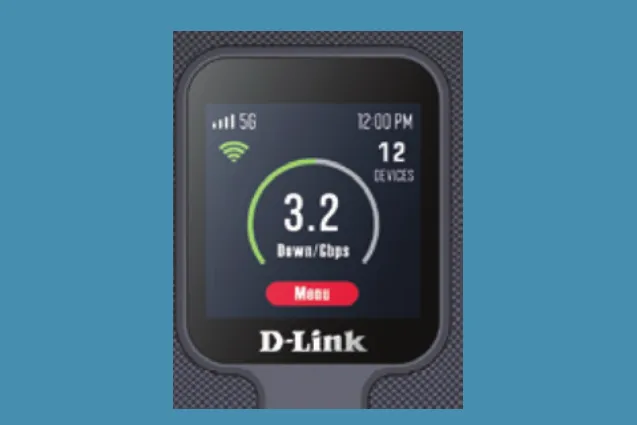

Test your real network speed

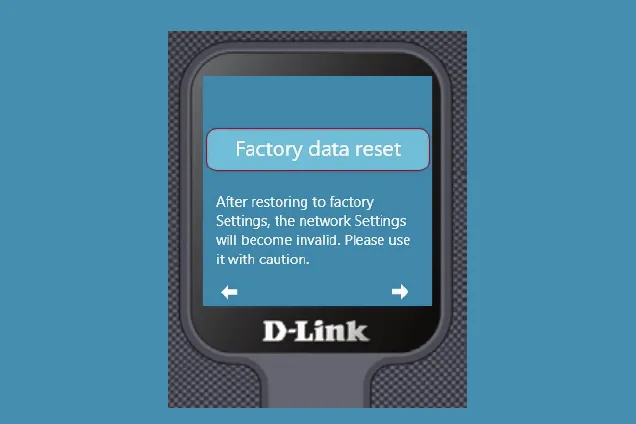

On-device factory data reset with confirmation

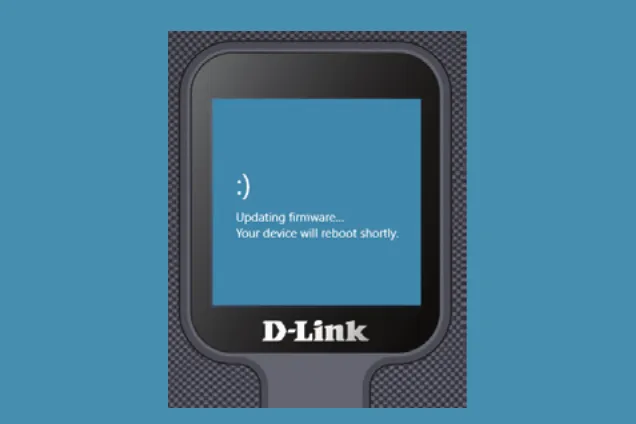

OTA firmware update with progress indication

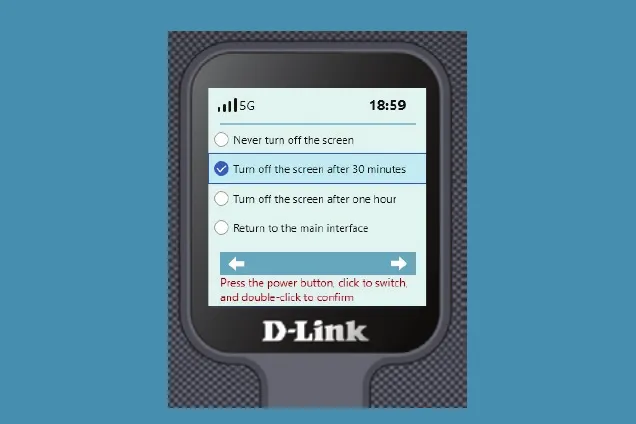

Configurable screen hibernation timer options
Real-time signal strength & band info
Download/upload speed indicator
Connected device count (Wi-Fi 2.4G/5G)
QR code for instant Wi-Fi connection
One-button firmware update
Factory reset with on-screen confirmation
Configurable screen sleep timer
Physical button: click to switch, double-click to confirm
DWR-8211V
| Platform | MediaTek T830, 4-core ARM Cortex-A55 @ 2.2 GHz |
|---|---|
| Modem | Quectel RG620T-EU / RG620T-NA (3GPP Rel-16) |
| OS | Linux |
| RAM | 1 GB LPDDR4X |
| ROM | 4 GB eMMC Flash |
| Display | 1.54" TFT LCD color screen (240×240 px) |

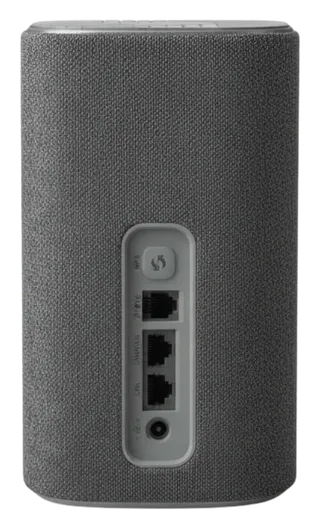

| Ethernet | RJ45 2.5 Gbps WAN/LAN ×1 + 2.5 Gbps LAN ×1 |
| Voice Port | RJ11 ×1 |
| USB | 1× USB Type-C |
| Power | Φ5.5 DC / AC 100–240V 50/60Hz, DC 12V 2.5A |
| Consumption | ON: Max 36W / OFF: Max 0.5W |
| Antenna (Hardware & Platform) | Internal omni-directional (3G/4G/5G: 6 dBi, Wi-Fi: 3 dBi) + 2× external SMA (4G/5G) |
| LEDs | Battery (green), WiFi (3-color), 4G (3-color), 5G (3-color) |
| Buttons | WPS + Power + Reset (pinhole) |
| Dimensions | 105.6 × 105.6 × 193.6 mm |
| Operating Temp | −20°C to 60°C (storage: −40°C to 70°C) |
| Humidity | 40°C / 90–95% (storage: 10–95%) |
| ESD | Contact ±4 kV / Air ±8 kV |
| Boot Time | < 60s from power-on to internet |
| Air Interface | 5G NR Sub-6GHz, LTE, WCDMA |
| 5G NR Bands (EU) | n1 / n3 / n5 / n7 / n8 / n20 / n28 / n38 / n40 / n41 / n75 / n76 / n77 / n78 |
| 5G NR Bands (NA) | n2 / n5 / n7 / n12 / n13 / n14 / n25 / n26 / n29 / n30 / n38 / n41 / n48 / n66 / n70 / n71 / n77 / n78 |
| LTE FDD (EU) | B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32 |
| LTE TDD (EU) | B38 / B40 / B41 / B42 / B43 / B46 |
| LTE FDD (NA) | B2 / B4 / B5 / B7 / B12(17) / B13 / B14 / B25 / B26 / B29 / B30 / B66 / B70 / B71 |
| LTE TDD (NA) | B38 / B41 / B42 / B43 / B46 / B48 |
| WCDMA (EU) | B1 / B5 / B8 |
| 5G NR Bandwidth | TDD: 10–100 MHz / FDD: 5–50 MHz |
| 5G DL/UL MIMO | DL 4×4 MIMO / UL 2×2 MIMO |
| 5G NR Peak (SA) | DL: 7.01 Gbps / UL: 2.5 Gbps |
| 5G NR Peak (NSA) | DL: 5.67 Gbps / UL: 1.46 Gbps |
| 5G CA | 4 FR1 / EN-DC: 4 LTE + 2 FR1, 5 LTE + 1 FR1 |
| 5G Modulation | DL/UL 256QAM |
| TX Power Class | Class 3 (23 dBm), HPUE Class 2 (26 dBm), Class 1.5 (29 dBm) |
| LTE Peak | Cat19 DL / Cat18 UL: 1.6 Gbps (DL) / 211 Mbps (UL) |
| LTE CA | DL: 5CC / UL: 2CC |
| SIM Slot | Nano-SIM (4FF) Standard 8PIN, eSIM (optional) |
| Chipset | MT7990A + MT7976C |
| Standard | WiFi 7, IEEE 802.11a/b/g/n/ac/ax/be |
| Capability | BE3600, MIMO 2×2, Bandwidth 160 MHz |
| 2.4 GHz | 802.11b/g/n/ax/be, 20/40 MHz (2.4–2.4835 GHz) |
| 5 GHz | 802.11a/n/ac/ax/be, 20/40/80/160 MHz (5.15–5.925 GHz) |
| Max Rate (11be) | 2880 Mbps @ 5 GHz & 688 Mbps @ 2.4 GHz |
| Max Rate (11ax) | 2402 Mbps @ 5 GHz & 574 Mbps @ 2.4 GHz |
| Max Rate (11ac) | 1732 Mbps @ 5 GHz & 300 Mbps @ 2.4 GHz |
| Antenna (Wireless Specifications) | MU-MIMO, 2×2 + 2×2 |
| Max Users | 512 |
| Range | 80 m |
| TX Power | 18 dBm (11b) / 16 dBm (11g/11a) / 15 dBm (11n/11ac) / 14 dBm (11ax) / 13 dBm (11be) |
| Encryption (Wireless Specifications) | WPA/WPA2/WPA3 Personal, WPS 2.0, WAPI |
| Web GUI | HTTP-based local management interface |
| LCD Interface | On-device status, settings, QR code WiFi sharing |
| Device Mgmt | Web Access (local), TR-069 Supported (CWMP) |
| FOTA Update | OTA firmware update supported |
| Local Update | Supported |
| Firewall | IP-based, port/protocol-based, MAC-based, URL filter |
| Security | Port forwarding, DMZ, DoS protection, SIM PIN/PUK, WAN access control, remote HTTP |
| WAN | Static IP / DHCP Client / NTP Client |
| LAN Mode | NAT mode, Bridge mode |
| IPv4/IPv6 | Internet Protocol v4/v6, ICMPv6 |
| VPN | Not supported |
| DNS | DNS relay / DNS cache |
| Encryption (Management, Security & Network) | AES |
| Services | Broadcasting, Multicasting |
| Configuration | Auto channel scanning and selection, configurable BS profiles |
| Certifications | CE, FCC, IC, RoHS |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
