The DWR-933M CAT6 4G/LTE Mobile Router is a 4G/LTE CAT6 high speed broadband wireless WAN (WWAN) to Wi-Fi mobile hotspot. The DWR-933M uses a 4G Internet connection to give you an easy-to-deploy Wi-Fi network anywhere you need one. Instead of limiting your mobile Internet connection to a single device through a USB dongle, the DWR-933M allows you to create a Wi-Fi hotspot to share your connection. The convenient size means you can share your connection anywhere; use it in a cafe to send e-mail while your friend reads the news, or at the airport so you and your coworkers can work while waiting for your plane.
DWR-933M
4G LTE Cat6 AX600 Battery Mobile Wi-Fi Router with LCD Display
- Uses a SIM card to connect to the Internet
- Compatible with 802.11ax/ac/n/g/b wireless devices

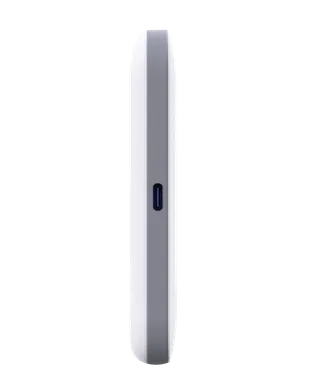

- Type-C port for easy charging
- 3000mAh so you stay connected longer
- Small size lets you drop it in a purse or pocket and take it wherever you go

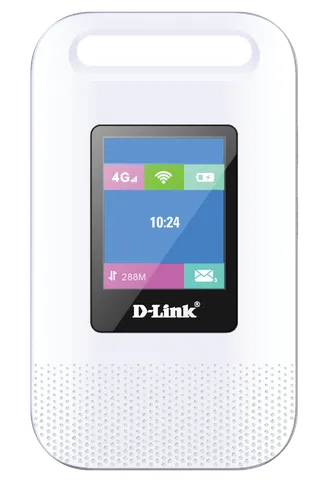

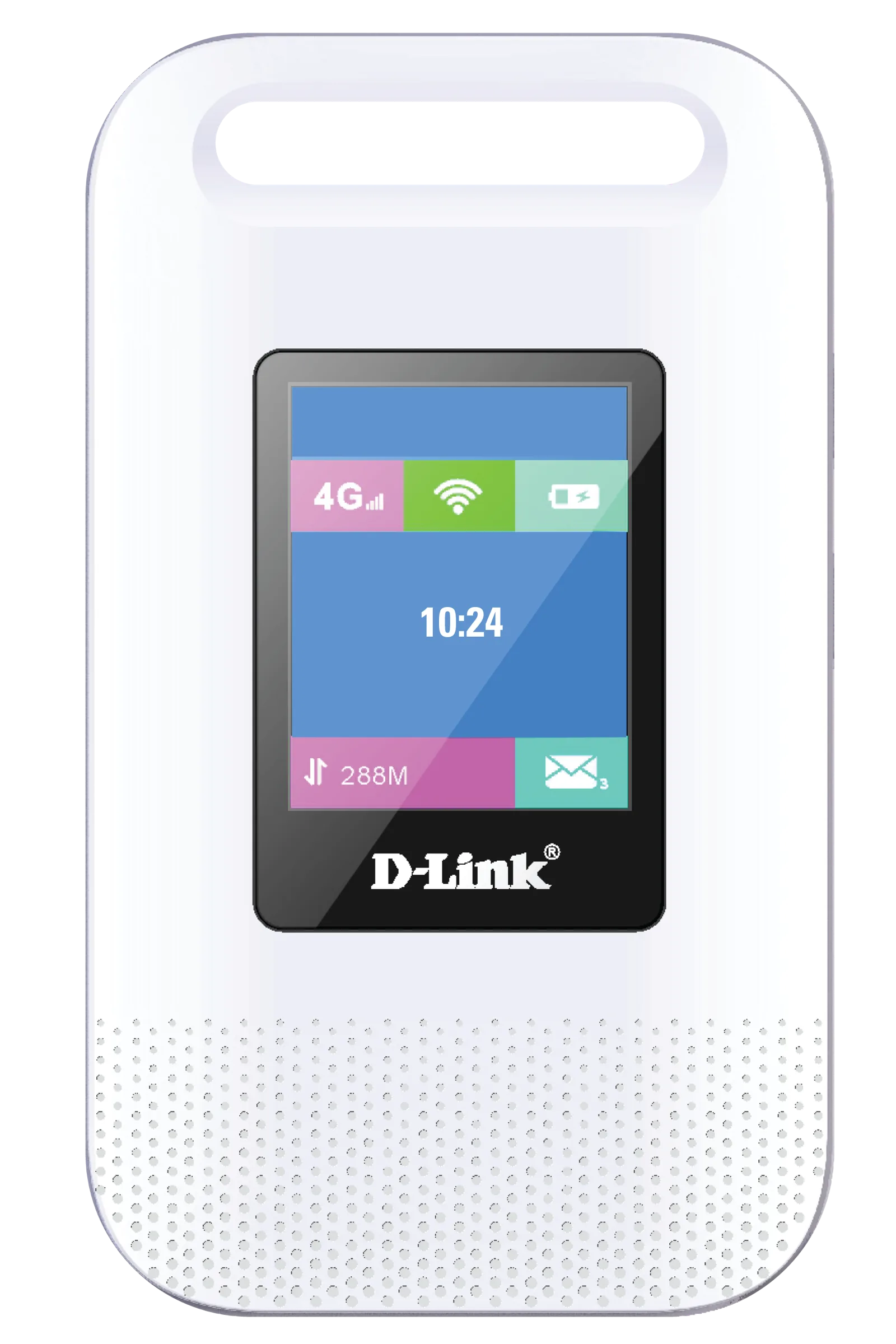

- LCD display gives you current status at a glance
- Industry Standard WPA/WPA2 Wi-Fi security protocol
- Built-in firewall
- Wi-Fi Protected Setup (WPS) for one-touch setup
Overview
Connect Anywhere
Simply insert your data-enabled SIM card to set up your very own mobile Wi-Fi network. The DWR-933M is perfect for when you need to quickly set up an impromptu network. It’s ideal for business trips when you need to share an Internet connection with everybody during a meeting or use it for travel allowing you to provide all your travel companions with Internet access.
Easy to Set Up
Sharing your Internet connection doesn’t have to be a complicated process - just open a web browser to access D-Link’s modern user-friendly graphical web interface. The setup wizard’s easy to use step-by-step instructions will have your network up and running in minutes. Implement WPA/WPA2 wireless encryption in minutes with the wireless network setup wizard or use Wi-Fi Protected Setup (WPS) which establishes a connection to new devices with the touch of a button.
Flexible Usage
The DWR-933M CAT6 4G/LTE Mobile Router gives you instant connectivity all in a powerful yet portable device that fits easily into your pocket. The rechargeable 3000 mAh Li-ion battery allows you to stay connected for long periods of time and it’s plug-and-play with no complicated software to install. Getting online with the DWR-933M is quick easy and convenient.
DWR-933M
Specifications
| Frequency Support¹ | LTE Mode: CA - 1A+3A,1A+8A, 1A+20A,1A+28A, 3A+3A,3A+8A, 3A+20A, 3A+28A, 3A+38A, 3A+40A,3A+41A, 3A+7A,7A+20A, 8A+41A Category 6: Band 1/3/5/7/8/20/28/38/40/41 WCDMA/HSPA/HSPA+/DC-HSPA Mode: Band 1/5/8 GSM: Band 3/8 |
|---|---|
| Data Throughput² | LTE Mode: Downlink: 300 Mbps Uplink: 50 Mbps WCDMA/HSPA/HSPA+/DC-HSPA Mode: Downlink: 42 Mbps Uplink: 5.76 Mbps |
| Security | WPA/WPA2 PSK Auto (TKIP/AES) WPS Push-Button Connection |
| Advanced Functions | Built-in firewall Built-in NAT |
| Wi-Fi Data Rates² | Up to 573 Mbps with 802.11ax/ac/n clients 1/2/5.5/11 Mbps in 802.11b mode 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode |
| Wireless Security Features | WPA/WPA2 PSK Auto (TKIP/AES) WPS Push-Button connection |
| Firewall | Network Address Translation (NAT) |
| Advanced Features | SMS messaging USSD support Supports local updates, FOTA |
| Interfaces | 802.11ax/ac/n/g/b wireless LAN Single NANO Sim |
| Antenna | Internal cellular antennas (1T2R) Internal Wi-Fi antennas |
| Display | LCD Display Network type Signal strength Internet connection status Carrier Battery status Wi-Fi & security status Wi-Fi clients |
| Power | DC 5 V/2 A Rechargeable 3000 mAh Li-ion battery |
| Dimensions | 108 x 63 x 15.5 mm |
| Weight | 136 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -30 to 70 °C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Certifications | CE RoHS |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
