The DWR-940M 4G/LTE Mobile Router is a 4G LTE Cat4 high-speed broadband wireless WAN (WWAN) to Wi-Fi mobile hotspot that supports internet speed up to 150Mbps downlink and 50Mbps uplink. The DWR-940M uses a 4G Internet connection to give you an easy-to-set-up Wi-Fi network anywhere you need one. The DWR-940M allows you to create a Wi-Fi hotspot to share your connection with up to 32 Wi-Fi devices. The convenient size means you can share your connection anywhere; use it in a cafe to send e-mail while your friend reads the news, or at the airport so you and your coworkers can work while waiting for your plane.

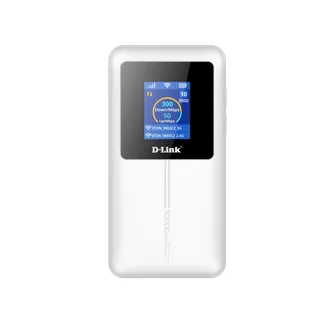

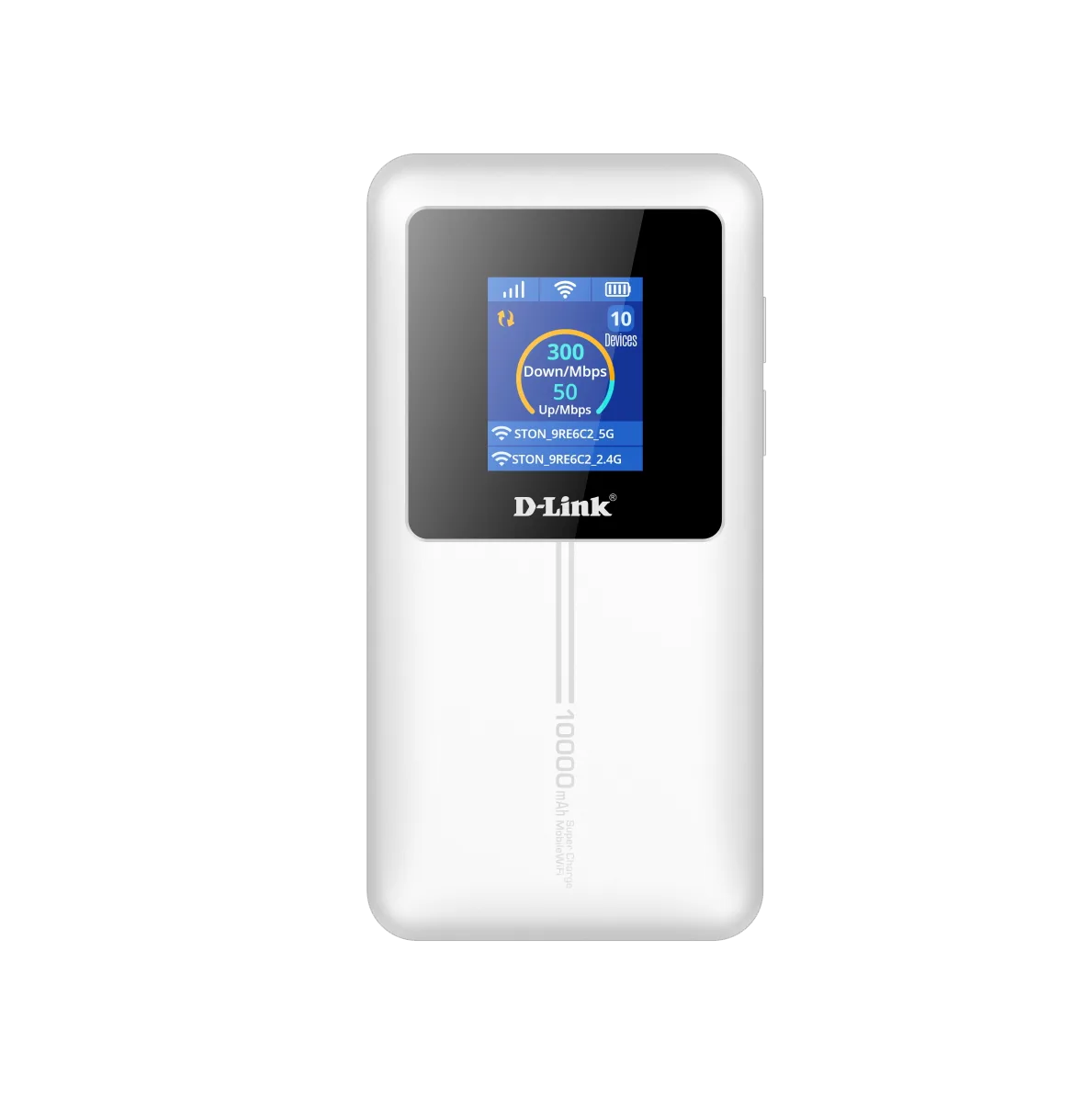

DWR-940M
4G LTE Battery Mobile Wi-Fi Router with LCD Display
- Uses a USIM card to connect to the Internet
- Compatible with 802.11n/g/b wireless devices
- Type-C port for easy charging
- Easy management using the mobile app
- Connect up to 32 Wi-Fi devices
- 10000mAh so you stay connected longer
- Small size lets you drop it in a purse or pocket and take it wherever you go
- WPA/WPA2 Wi-Fi security protocols for industry-standard encryption
- Built-in firewall helps keep unwanted connections out
- Wi-Fi Protected Setup (WPS) for one-touch setup
Overview
Connect Anywhere
Simply insert your data-enabled SIM card to set up your very own mobile Wi-Fi network. The DWR-940M is perfect for when you need to quickly set up an impromptu network; it’s ideal for business trips when you need to share an Internet connection with everybody during a meeting, or use it for travel, allowing you to provide all your travel companions with Internet access.
Flexible Usage
The DWR-940M 4G/LTE Mobile Router gives you instant connectivity, all in a powerful yet pocket-sized device. The rechargeable 10000 mAh Li-ion battery allows you to stay connected for long periods of time. Plug-and-play with no complicated software to install, getting online with the DWR-940M 4G/LTE Mobile Router is quick, easy, and convenient.
DWR-940M
Specifications
| Frequency Support¹ | FDD-LTE: Band 1/3/7/8/20 UMTS/HSDPA/HSUPA: B1/B8 TDD-LTE: Band 38/40/41 GSM/GPRS/EDGE: B3/B8 |
|---|---|
| Data Throughput² | Downlink up to 150 Mbps Uplink up to 50 Mbps |
| Security | WPA/WPA2 PSK Auto (TKIP/AES) WPS Push-Button Connection |
| Advanced Functions | Built-in firewall Built-in NAT UPnP |
| Interfaces | 802.11n/g/b wireless LAN Single Nano SIM Type-C Port Type-A Port |
| Antenna | Internal LTE antenna 2 x internal Wi-Fi antennas 1x2 MIMO (UL/DL) |
| LED | Power Status Network Type SMS Status Cellular Signal Strength Wi-Fi Status Battery Indicator |
| Power | DC 5 V/1 A ± 5% 10000mAh Poly Li-ion |
| Dimensions | 145x73x18.5mm |
| Weight | 260g |
| Operating Temperature | 0 to 40 ˚C (32 to 104 ˚F) |
| Storage Temperature | -20 to 70 ˚C (-4 to 158 ˚F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Certifications | CE RoHS |
| Hardware Version | A1 |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
