D-Link

DXS-3130-32S

32-Port 10G Layer 3 Stackable Aggregation Managed Fiber Switch

  • 28 Ports 10G/multi-Gigabit for downlink
  • 4 Ports 10/25G SFP28 for uplink
  • Physical stack of up to 9 units via four 25G ports
  • 200 Gbps per-device physical stacking bandwidth
  • Ethernet Ring Protection Switching (ERPS)
  • RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
  • Support 802.1X and Web/MAC-based access control
  • IEEE 802.1ag for Connectivity Fault Management
  • Green features for reduced power consumption
  • Manage through the Nuclias Network Controller
Where to buyDownload datasheetView specifications

Overview

User Benefits​

Versatile Traffic Management

Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency

Simplified Management

The SIM feature enables managing multiple switches as a virtual stack with a single IP, supporting diverse management tools

Boosted Network Reliability

AC or DC RPS options ensure uninterrupted operation and boost switch reliability by preventing power disruptions

Advanced Security for Access

Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment

High Availability and Scalability

Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy

Efficient Layer 3 Routing

Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination

High-Speed Versatile Switching

Featuring 28 x 10G SFP+ downlink ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic. The full optical interface design optimizes speed and handles heavy traffic.

Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

Unified the Power, Stack for Success

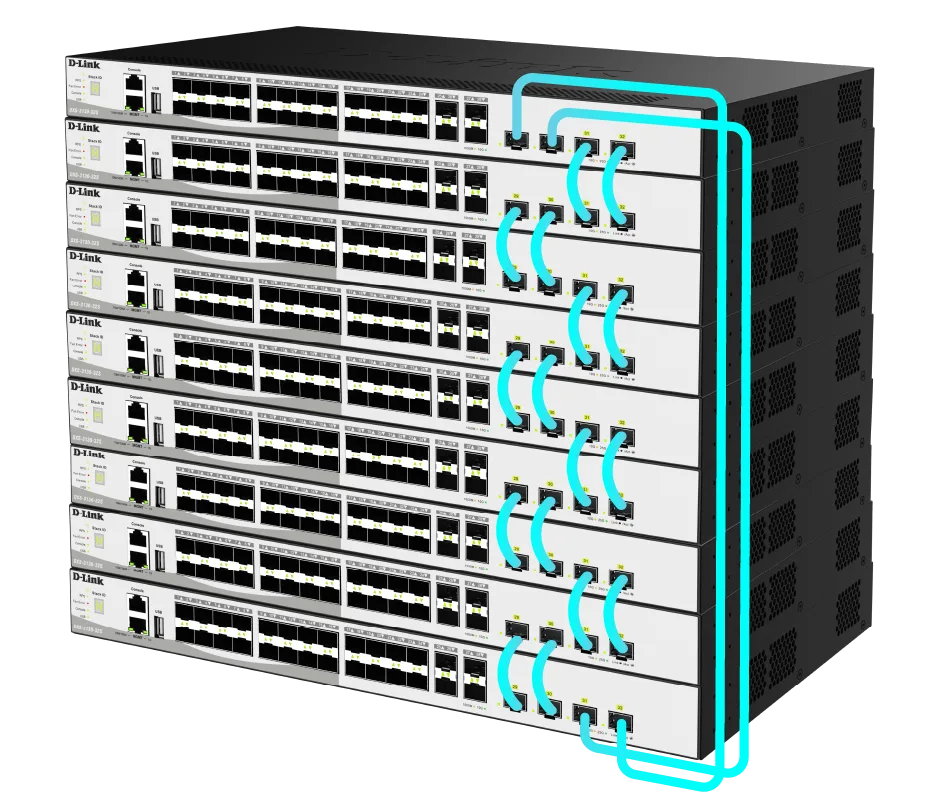

Scale your network with the DXS-3130 series by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

DXS-3130-32S Unified the Power, Stack for Success illustration

Built for Unbreakable Networks

The DXS-3130-32S ensures continuous uptime with redundant power and stacking. Its 50ms ERPS recovery minimizes downtime, loopback detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.

DXS-3130-32S Built for Unbreakable Networks illustration

Optimized Performance for Critical Services

The DXS-3130-32S switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.

Advanced QoS/CoS

Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications

IGMP/MLD Snooping

Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency

ISM VLAN

Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network

Applications

K-12 School (Education)

K-12 School (Education)

Office (Enterprise)

Office (Enterprise)

High-Rise Community (Buildings)

High-Rise Community (Buildings)

DXS-3130-32S

Specifications

Technical specifications for DXS-3130-32S
Interfaces28 x 10GE SFP+ 4 x 10/25G SFP28
Switch Capacity760 Gbps
Max. Packet Forwarding Rate560.44 Mpps
Max Power Consumption66.5W
Dimensions440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)
Weight3.835 kg
FAN3 x Smart fans
Operating Temperature0°C to 50 °C (32°F to 122 °F)
Storage Temperature-40°C to 70°C ( -40°F to 158°F)
Operating Humidity10% to 90% relative humidity
Storage Humidity5% to 90% relative humidity
Console PortYes
Power Supply TypeInternal

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
