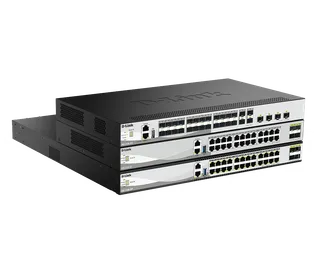

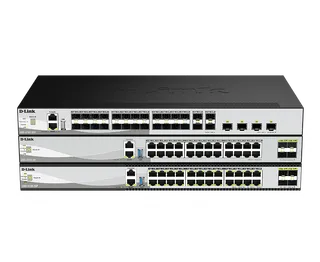

D-Link

DXS-3130 SERIES

10G Layer 3 Stackable Aggregation Managed Switches

  • Support 10G for downlink ports
  • Support 10G/25G SFP28 for uplink ports
  • Support IEEE 802.3af/at/bt to power PoE devices
  • Physical stack of up to 9 units via four 25G ports
  • 200 Gbps per-device physical stacking bandwidth
  • Support Redundant Power Supply (RPS)
  • Support Ethernet Ring Protection Switching (ERPS)
  • L3 Features: RIP/RIPng, OSPFv2/v3, and VRRP
  • Green Features for reduced power consumption
  • Manage through the Nuclias Network Controller
Where to buyView specifications

Overview

Why You Need It​

10 Gbps Ports

Connect to areas of your network at 10G speeds, increasing port density and operational efficiency

Physical Stacking

Up to 9 units via four 25G ports with 200 Gbps per device physical stacking bandwidth

Solidly Reliable

Supports versatile functions from VRRP, ERPS, STP and Physical Stacking to enhance network resilience

Security Controls

Including Storm Control, LBD, Multi-layer ACL and IMPB with DHCP Snooping to protect the access

Redundant Power

Improves reliability by preventing power outages with redundant RPS AC/DC power options

Rich OAM Support

Supports advanced OAM like 802.3ah, Y.1731, and Dying Gasp , ensuring better monitoring and reliability

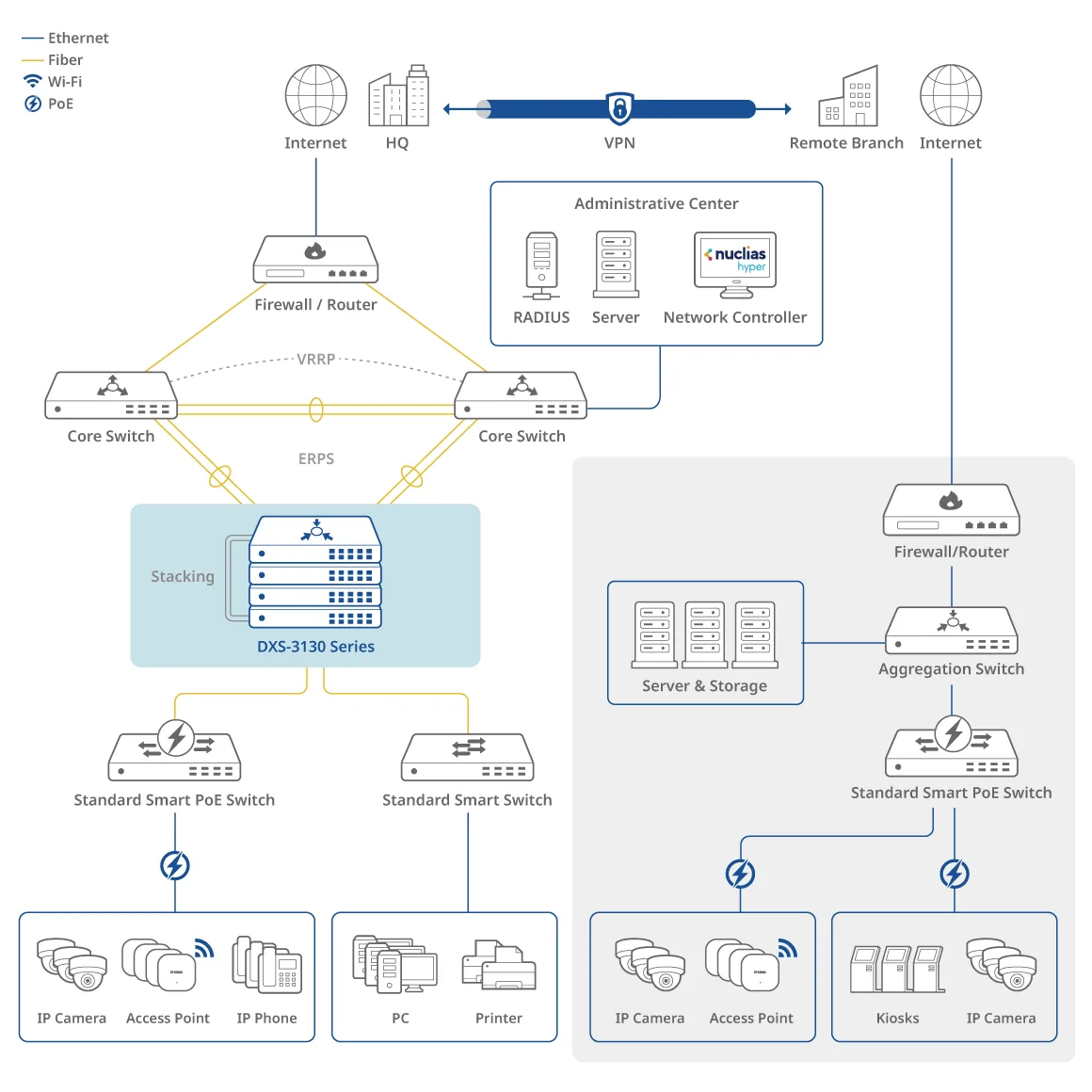

Connection Diagram

The DXS-3130 Series delivers secure, high-performance Layer 3 switching for enterprise and metro networks. With 10G/multi-Gigabit PoE++, 25G uplinks, and physical stacking, it offers scalable bandwidth and power for IP surveillance, VoIP, and high-density environments.

Network Controller

Aggregation Switch

Standard Smart Switch

Access Point

Connection Diagram

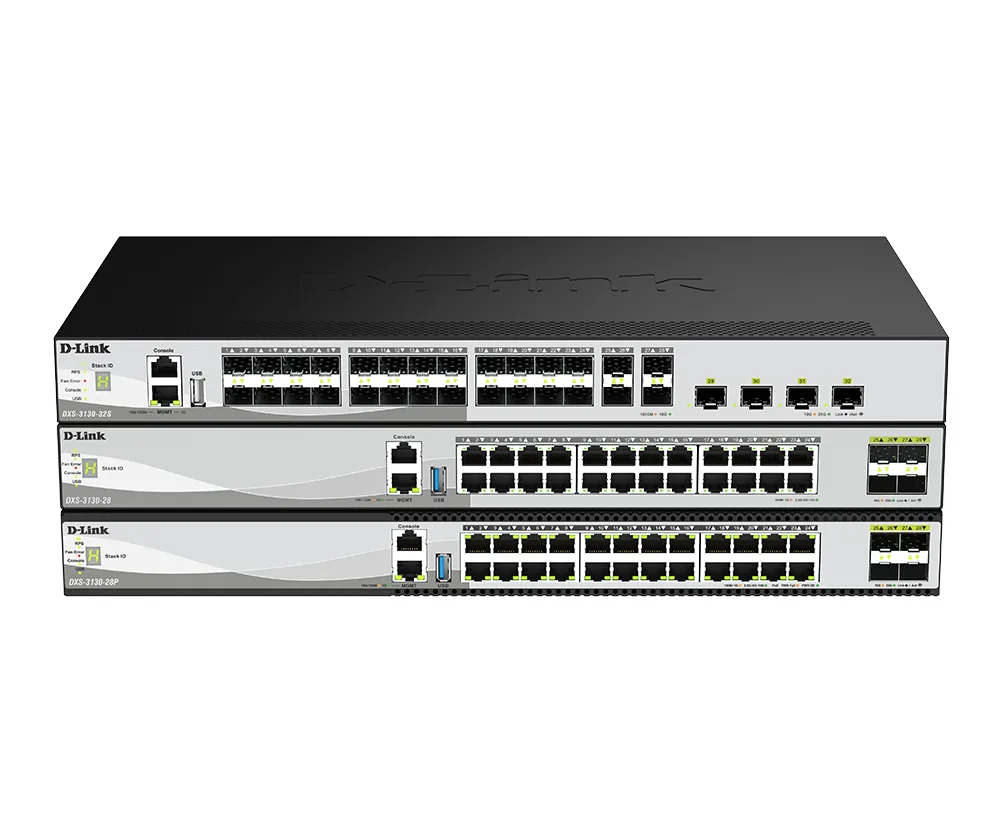

DXS-3130 SERIES

Specifications

DXS-3130 Series Specification
SpecificationDXS-3130-28DXS-3130-28PDXS-3130-32S
Interface24 x 10GE 4 x 25G SFP2824 x 10GE PoE++ 4 x 25G SFP2828 x 10G SFP+ 4 x 25G SFP28
Performance
Switch Capacity680 Gbps680 Gbps760 Gbps
Max. Packet Forwarding Rate505.92 Mpps505.92 Mpps505.92 Mpps
PoE
PoE Standard-IEEE 802.3af/at/bt-
PoE Ports-Port 1 - 24-
PoE Budget-790W-
Technical Specification
Surge Protection6kV surge protection on all Ethernet access ports
Console PortYesYesYes
Power Supply TypeInternalCRSPInternal

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Support

Downloads

Manuals
DescriptionDateTypeFile SizeDownload
Web UI Reference Guide (A1) 1.00Web UI Reference Guide (A1) 1.00PDF · 21.75mb-PDF21.75mb
CLI Reference Guide (A1) 1.03CLI Reference Guide (A1) 1.0316 Mar 2026 · PDF · 7.97mb16 Mar 2026PDF7.97mb
Quick Start/Installation Guides
DescriptionDateTypeFile SizeDownload
Quick Installation Guide (A1) 1.01Quick Installation Guide (A1) 1.01PDF · 2.95mb-PDF2.95mb
