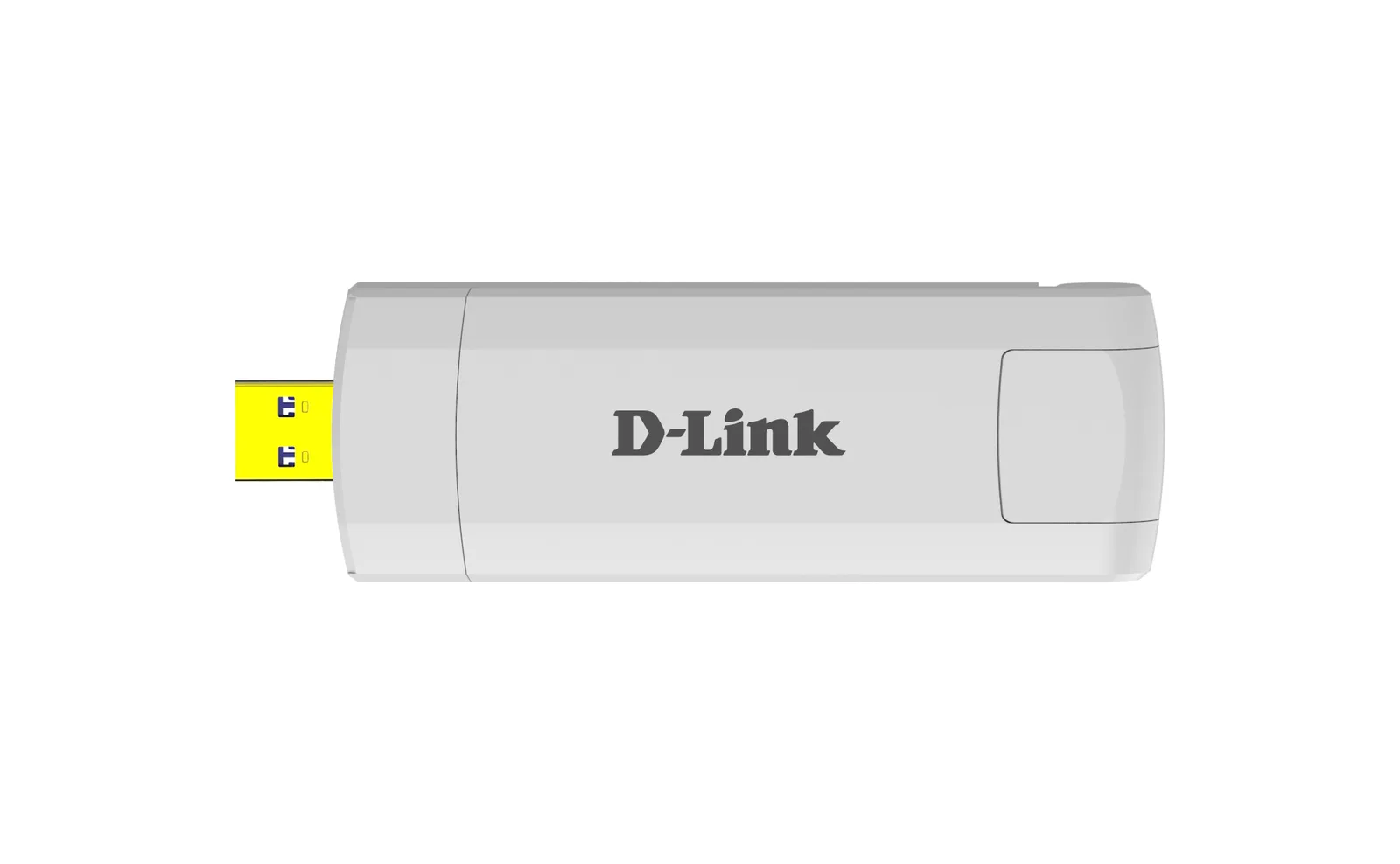

AE65U

BE6500 Wi-Fi Tri-Band USB Adapter with Foldable Antenna

Fast Wi-Fi 7 Speeds up to 2882 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).
Support USB 3.0, Up to 10x faster transfer speeds than USB 2.0.
Support Tri-Band Wireless, 2.4 GHz, 5 GHz and 6 GHz bands for flexible connectivity.
Support Multi-Link Operation (MLO): Enable devices to use multi-link seamless dynamic switching to achieve load balancing and lower latency.
Supports WPA3 encryption, the latest Wi-Fi security for greater protection.
Lower Latency Gameplay: OFDMA and MU-MIMO ensure the most efficient Wi-Fi connection for your PC.

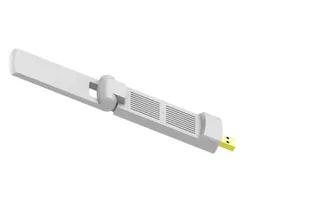

Foldable Antenna: Adjust the foldable antenna to improve user experience and performance in different environments.
Easy Installation: There's no need for a physical driver CD with AE65U's built-in driver. Enjoy a simple and user-friendly installation.

Where to buy Download datasheet View specifications

Overview

The AE65U Wi-Fi 7 USB adapter delivers great Wi-Fi performance by adding Wi-Fi 7 technologies to your computer. Upgrade your desktop PC in seconds to Wi-Fi 7 capabilities and open up a new world of lag-free 4K streaming, low-latency gaming and breakneck download speeds.

The multi-angle foldable high-gain antenna combines with Beamforming to concentrate Wi-Fi signals towards your router for better reception and reliable connections from far away.

Experience blazing-fast data transfers of up to 6.5Gbps with USB 3.0, the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11be Wi-Fi, USB 3.0 makes AE65U ideal for HD streaming, online gaming and large file downloads.

Next-Generation Wi-Fi for Your Device

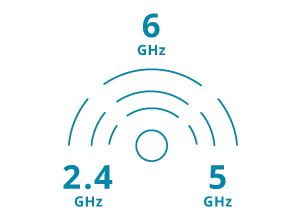

Tri-Band

Multi-Link Operation (MLO)

Seamless Wi-Fi 7 Experience for Every Use

Powered by Wi-Fi 7 technology, the AE65U delivers ultra-fast speeds for even the most demanding tasks. Whether you're gaming, streaming in 4K, transferring large files, or video calling, you’ll enjoy ultra-smooth performance. Instantly upgrade your connection and experience the next level of Wi-Fi.

Online Gaming

Enjoy fast, stable, ultra-low latency internet for seamless online gaming

Video Calling

Maintain crystal-clear video and audio quality during virtual meetings

4K Streaming

Get reliable performance for 4K streaming and large data transfers

Working in the Office

Expand workstation connectivity without complex wired setups

Maximize Your Internet Performance Instantly

Boost your speed and connectivity for an uninterrupted online experience

Enhanced Network Security

With the latest WPA3™ encryption, the AE65U provides stronger personal data protection and safer connections, giving you peace of mind while enjoying your online activities.

Boost Network Efficiency

Equipped with OFDMA, MU-MIMO, and beamforming technologies, the AE65U enhances your Wi-Fi network by eliminating congestion and boosting efficiency, delivering faster speeds, lower latency, and more reliable performance.

Specification
Major Chipset	REALTEK RTL8912AU-VF1
Standard	802.11a/b/g/n/ax/be
Wi-Fi Rates	6 GHz: 11be up to 2882 Mbps (dynamic); 11ax up to 2402 Mbps (dynamic) 5 GHz: 11be up to 2882 Mbps (dynamic); 11ax up to 2402 Mbps (dynamic); 11ac up to 1732 Mbps (dynamic); 11n up to 300 Mbps (dynamic); 11a up to 54 Mbps (dynamic) 2.4 GHz: 11be up to 688 Mbps (dynamic); 11ax up to 574 Mbps (dynamic); 11n up to 300 Mbps (dynamic); 11g up to 54 Mbps (dynamic); 11b up to 11 Mbps (dynamic)
Interface	USB3.0
Antenna	High-Gain Foldable Tri-Band Antenna
Bandwidth	20MHz/40MHz/80MHz/160MHz
Modulation Method	OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM modulation.
Operation Mode	Infrastructure mode
Operation Range	Up to 150 meters in open space
OS Support	Win10 & Win11
Dimensions	Device: 111.6 x 35.3 x 14.9mm Cradle: 90.7 x 68.8 x 31.6mm USB 3.0 Cable: 1m
Weight	Device: 43.5g Cradle: 124g
Security	WEP, WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% (non-condensing)
Certification	CE

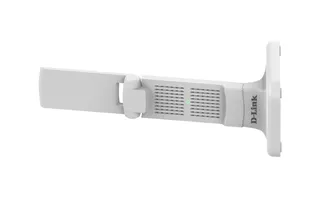

Package Contents	BE6500 Wi-Fi Tri-Band USB Adapter with Foldable Antenna, Quick Installation Guide, Warranty Card, USB 3.0 Cradle

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
