DWA-X9B

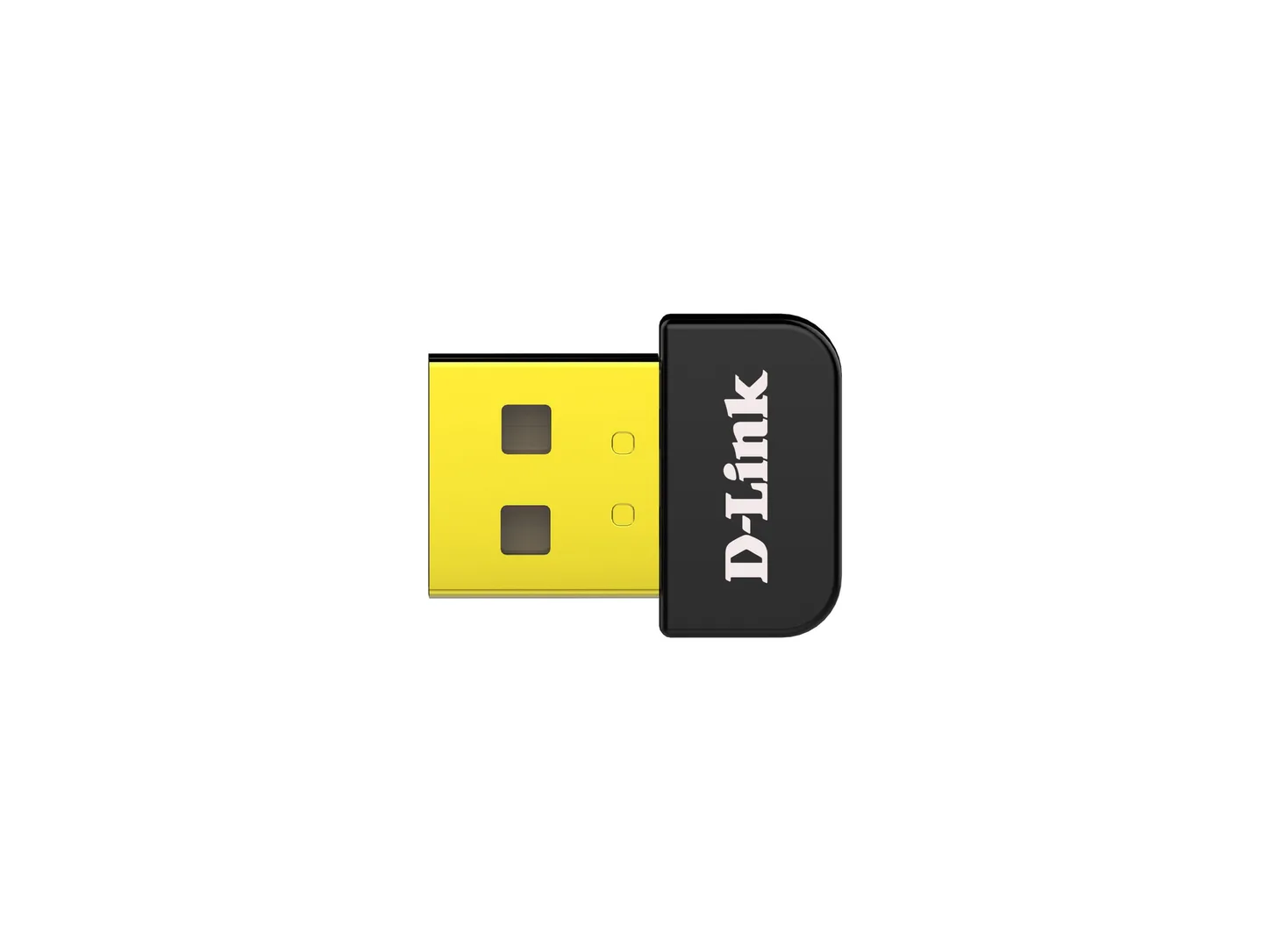

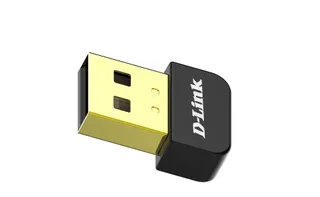

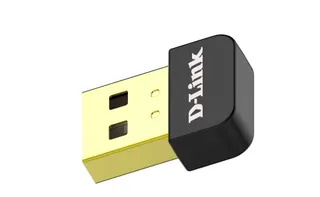

AX900 Nano Wi-Fi 6 Bluetooth 5.4 USB Adapter

Fast Wi-Fi 6 Speeds up to 600Mbps (5 GHz) + 287 Mbps (2.4 GHz).
High Speed Wi-Fi: Up to 900 Mbps speeds with 287 Mbps on 2.4 GHz and 600 Mbps on 5 GHz, upgrades your devices to higher AX Wi-Fi speeds. Support Wireless, 2.4 GHz, 5 GHz bands for flexible connectivity.
Dual Band Wireless: 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band Wi-Fi router for faster speed and extended range.
Supports WPA3 encryption, Advanced Security: Supports WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption standards.
Lower Latency Gameplay, OFDMA and MU-MIMO ensure the most efficient Wi-Fi connection for your PC
Reliable Bluetooth 5.4: Bluetooth 5.4 has been enhanced in terms of reliability and security, which ensures a more robust coordination with your game controllers, headphones, keyboards, etc.
Nano design: Small, unobtrusive design allows you to plug it in and forget it is even there.

Where to buy Download datasheet View specifications

Overview

The DWA-X9B BT 5.4 is a USB adapter that integrates Wi-Fi 6 and Bluetooth 5.4 technology, bringing excellent Wi-Fi and Bluetooth performance to your computer. Upgrade your desktop to Wi-Fi 6 and Bluetooth in seconds, transforming a non-Bluetooth PC or laptop into a Bluetooth-enabled device.

Simply connect your Bluetooth devices to the computer to enjoy them effortlessly. Experience smoother 4K streaming, low-latency gaming, and ultra-fast download speeds.

Focus the Wi-Fi signal on the router for better reception and long-distance stable connections. Wirelessly connect your Bluetooth mouse, Bluetooth keyboard, and Bluetooth headphones to break free from cables.

Specification
Major Chipset	REALTEK RTL8851BU-VF1
Standard	IEEE 802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz Bluetooth 5.4
Wi-Fi Rates	5GHz: 11ax up to 600 Mbps (dynamic); 11ac up to 433 Mbps (dynamic); 11n up to 150 Mbps (dynamic); 11a up to 54 Mbps (dynamic) 2.4GHz: 11ax up to 287 Mbps (dynamic); 11n up to 200 Mbps (dynamic); 11g up to 54 Mbps (dynamic); 11b up to 11 Mbps (dynamic)
Interface	USB 2.0
Antenna	Internal Antennas
Bandwidth	20MHz/40MHz/80MHz
Modulation Method	OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM modulation.
Operation Mode	Infrastructure mode
Operation Range	Up to 100 meters in open space
OS Support	Win10 & Win11
Security	WEP, WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% (non-condensing)
Certification	CE
Package Contents	AX900 Nano Wi-Fi 6 Bluetooth 5.4 USB Adapter, Quick Installation Guide, Warranty Card

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
