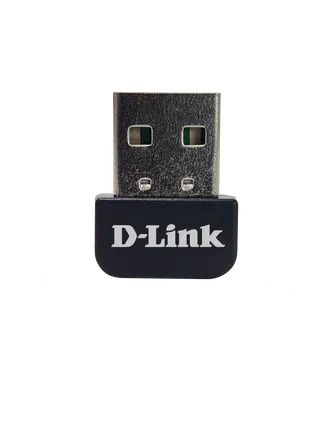

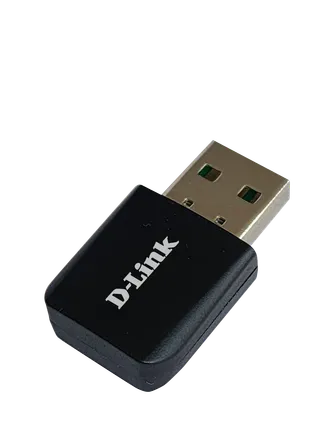

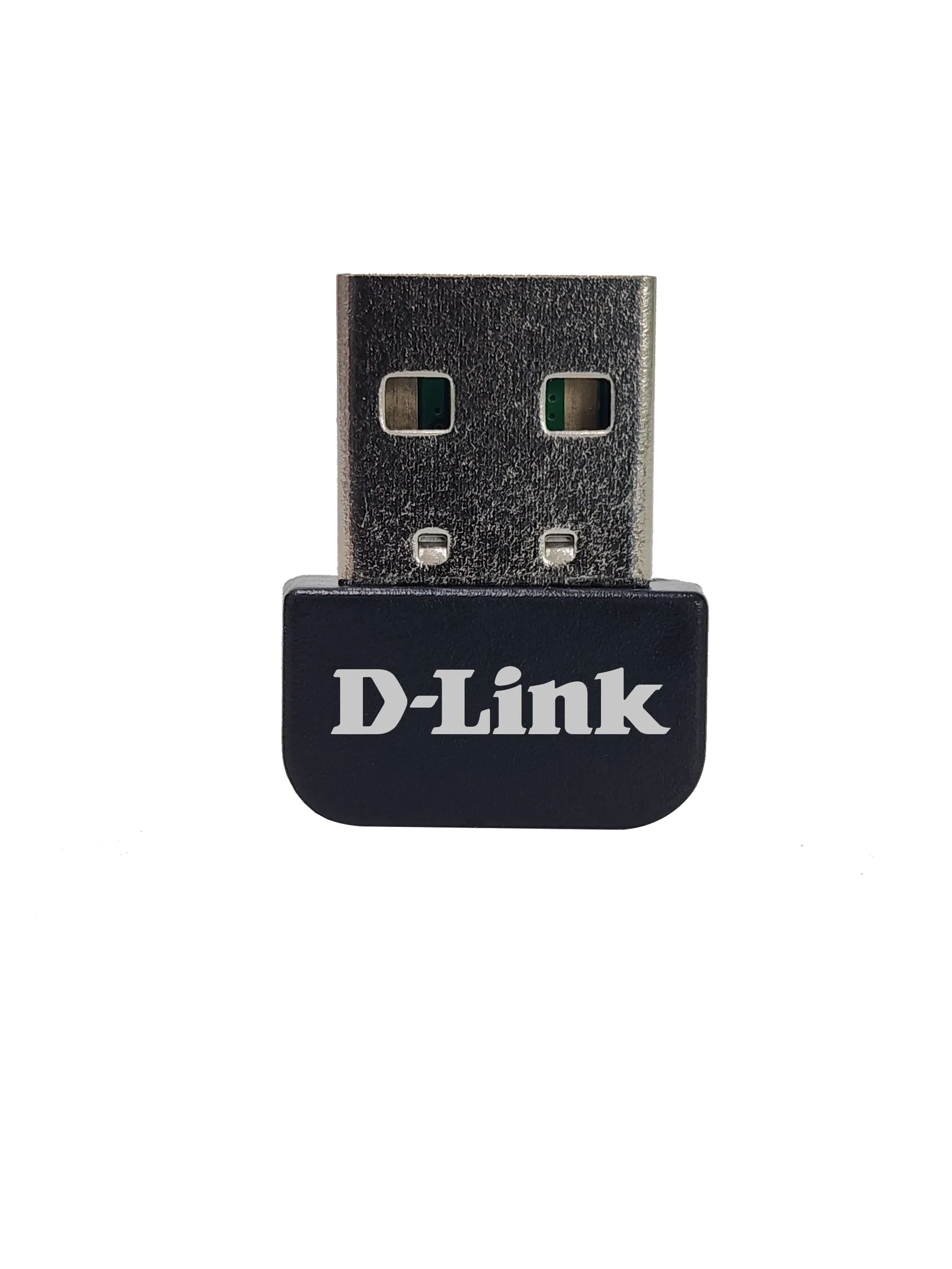

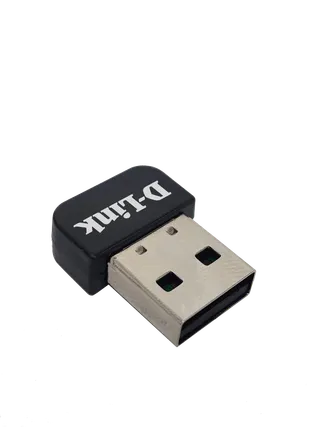

DWA-X131

AX300 Wi-Fi 6 Nano USB Wireless Adapter

Fast Wi-Fi 6 Speeds up to 286 Mbps over the 2.4GHz band
Support Two NAV, Buffer Report, Spatial reuse, Multi-BSSID, intra-PPDU power save
Connect to your Wi-Fi from wherever in your home with high-gain antennas and beamforming
MU-MIMO, Delivers highly efficient wireless connection
High Wi-Fi Speed, AX300 wireless speed with the next generation Wi-Fi - 802.11ax
1x1 MIMO technology improves effective throughput and range of existing 802.11 b/g/n products

Where to buy Download datasheet View specifications

Overview

The DWA-X131 is a Nano Wi-Fi 6 USB adapter, which delivers great Wi-Fi performance by adding Wi-Fi 6 technologies to your computer. It's time to boost PC Wi-Fi to the 802.11ax standard via a USB interface.

The DWA-X131 delivers 286Mbps on the 2.4GHz wireless band, which enables fast speeds for surfing, working, and streaming on your PC. Wi-Fi 6 technologies such as OFDMA, Beamforming, and BSS Color improve network efficiency and Wi-Fi signals, making the connection smooth even if your PC is connected to a busy network. Delivers 2x faster speeds than N150 USB Wi-Fi adapters.

With an ultra-small size, the DWA-X131 brings unparalleled portability and convenience. Plug it into an available USB port of your laptop and enjoy Wi-Fi 6 Internet access on the go.

Specification
Standards	IEEE 802.11b/g/n/ax
Main Chipset	AIC8800
Frequency Range	2.4 GHz: 286 Mbps
Interface (General Specifications)	USB 2.0
LED	Status LED
Antenna	Internal Antenna
Wi-Fi Encryption	WEP, TKIP, AES, WPA, WPA2
Channel Bandwidth	20/40 MHz
OS Support	Win7/10/11
Interface (Requirements)	USB 2.0
Dimension	16.5 x 21 x 6.8 mm
Temperature	0 ~ 40°C (32 ~ 104°F) - Operating Temperature; -20 ~ 70°C (-4 ~ 158°F) - Storage Temperature
Humidity	10% ~ 90% (non-condensing)
Certifications	CE, RoHS
Package Contents	AX 300 Wi-Fi 6 Nano USB Wireless Adapter Quick Installation Guide

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
