DCS-F7200FT
Face Recognition Access Control Terminal with Digital Temperature Measurement Module

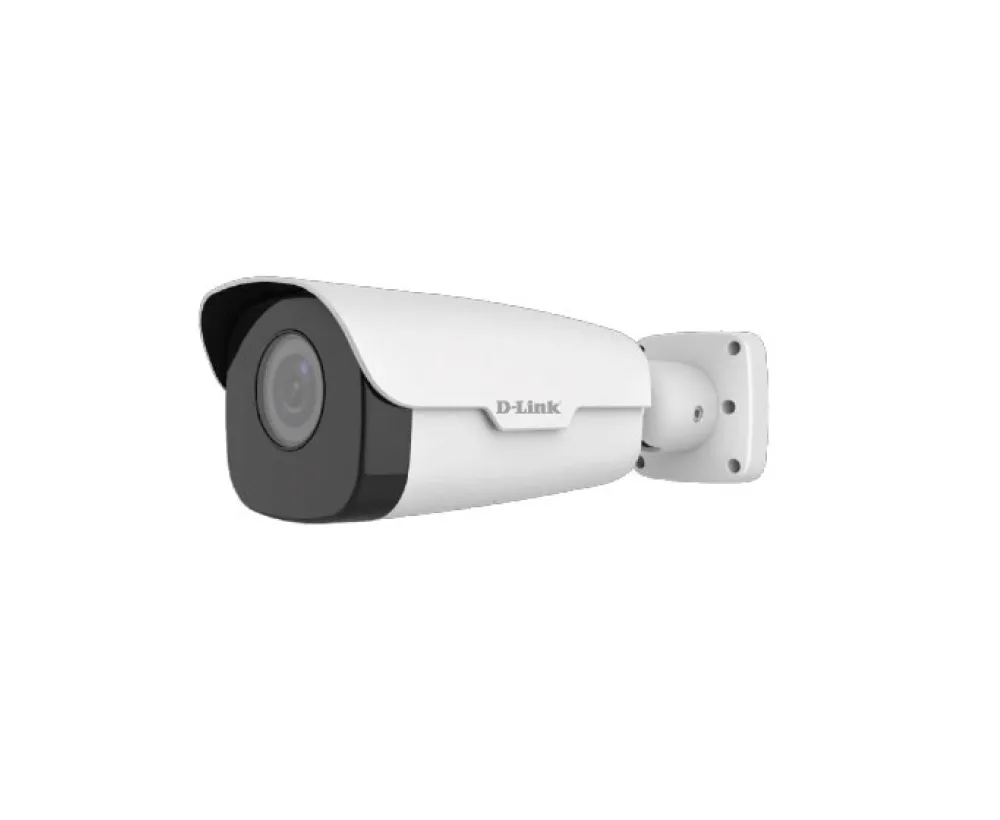

DCS-F5332-LPR
2MP LPR Starlight AF Network IR Bullet Camera
- Starlight illumination Day/Night
- Up to 120 dB WDR(Wide Dynamic Range) Digital
- Smart IR, up to 100m (328 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Day/night functionality
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
DCS-F5332-LPR
Specifications
| Sensor | 1/2.8", progressive scan, 2 megapixel, CMOS | ||
|---|---|---|---|
| Lens | 4.7~47mm@ F1.6(W)~3.0(T); AF automatic focusing and motorized zoom lens | ||
| Iris | DC-Iris | ||
| Angle of View (H) | 53.8°~6.6° | ||
| Angle of View (V) | 29.3°~3.7° | ||
| Angle of View (O) | 66.2°~7.8° | ||
| Adjustment angle | Pan: 0°~360° \ | Tilt: 0°~90° \ | Rotate: 0°~360° |
| Shutter | Auto/Manual, 1~1/100000s | ||
| Minimum Illumination | Colour: 0.001 Lux (F1.6, AGC ON) 0 Lux with IR | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Digital noise reduction | 2D/3D DNR | ||
| S/N | >52dB | ||
| IR Range | up to 100m (328ft) IR range | ||
| Defog | Digital Defog | ||
| WDR | 120dB | ||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||
| Frame Rate | Main Stream:1080P (1920×1080): Max. 60 fps; Sub Stream:1080P (1920×1080): Max. 60 fps; Third Stream:D1 (720×576): Max. 60 fps; | ||
| 9:16 Corridor Mode | Supported | ||
| HLC | Supported | ||
| BLC | Supported | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 8 areas | ||
| ROI | Up to 8 areas | ||
| Motion Detection | Up to 4 areas | ||
| Behavior Detection | Intrusion, cross line, motion detection | ||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||
| cross line | Cross a pre-defined virtual line | ||
| motion detection | Moving within a pre-defined virtual region | ||
| Recognition | Face detection, Audio detection, LPR | ||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||
| Statistical Analysis | People counting | ||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||
| Audio Compression | G.711 | ||
| Suppression | Supported | ||
| Sampling Rate | 8 KHZ | ||
| Edge Storage | Micro SD, Up to 256 GB | ||
| Network Storage | ANR | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||
| Compatible Integration | ONVIF(Profile S, Profile G), API | ||
| Audio I/O | Audio cable 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | ||
| Alarm I/O | 2 / 1 | ||
| Serial Port | 1 RS485 | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | ||
| Power | AC24V±25%, DC12V±25%, PoE (IEEE802.3 at) Power consumption: 14W | ||
| Dimensions (L × W × H) | 305.5 ×104.1 ×97.3mm (12.0" × 4.1" × 3.8") | ||
| Weight | 1.65 kg (3.6 lb) | ||
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F) Humidity :10%~90% RH (non-condensing) | ||
| Ingress Protection | IP67 | ||
| Reset Button | Supported |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
