DCS-F5820

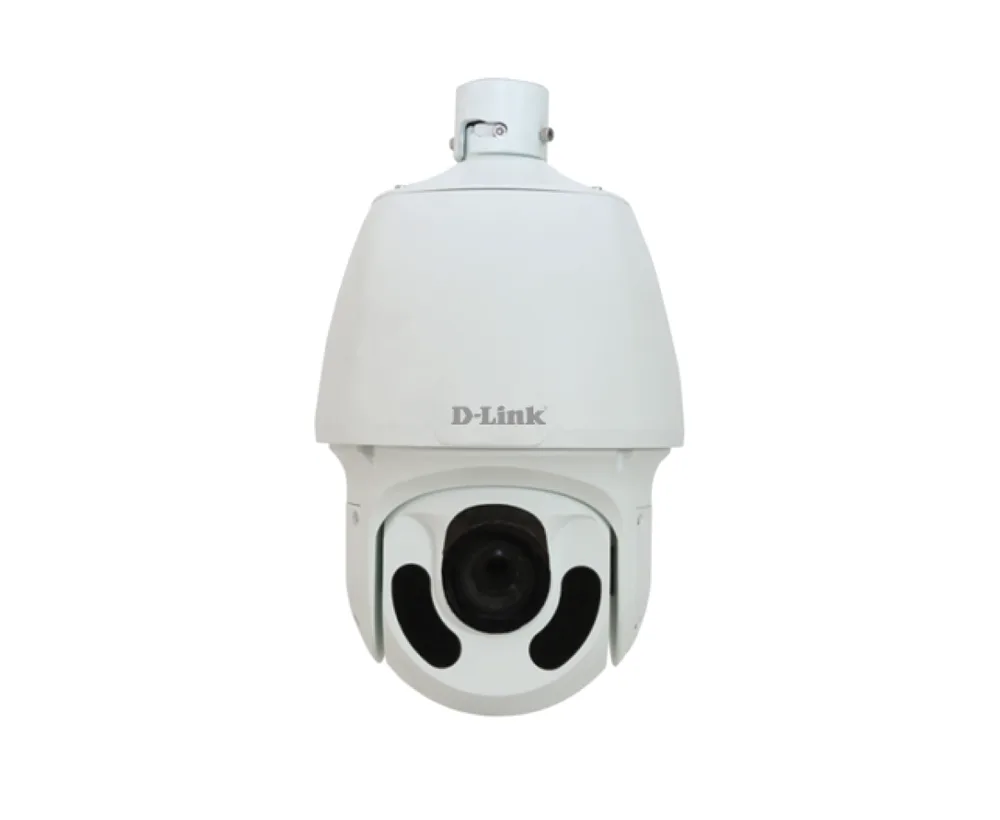

2MP 20X Day & Night PTZ Dome Camera
- Accurate and fast focusing
- The third-generation infrared technology
- Smart IR, up to 150 m (492ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 120dB true WDR
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
DCS-F5820
Specifications
| Sensor | 1/2.8", progressive scan, 2.0megapixel, CMOS | ||
|---|---|---|---|
| Lens | 5.2 ~ 104 mm , AF automatic focusing and motorized zoom lens | ||
| Digital Zoom | 16 | ||
| Optical Zoom | 20 | ||
| Angle of View (H) | 60.2°~ 3.0° | ||
| Angle of View (V) | 38.6° ~2.0° | ||
| Angle of View (O) | 79.5° ~4.2° | ||
| Adjustment angle | Pan: 0°~360° \ | Tilt: 0°~90° \ | Rotate:0°~360° |
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000 s | ||
| Minimum Illumination | Colour: 0.001 lux (F1.5, AGC ON) 0 lux with IR | ||
| Iris | Auto/Manual; F1.5 ~ F3.0 | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Digital noise reduction | 2D/3D DNR | ||
| S/N | >52dB | ||
| IR Range | UP to 150m (492ft) | ||
| Defog | Digital Defog | ||
| WDR | 120dB | ||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||
| Frame Rate | Main Stream:2MP (1920×1080):Max. 30 fps; Sub Stream:2MP (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps | ||
| HLC | Supported | ||
| BLC | Supported | ||
| EIS | Supported | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 24 areas | ||
| ROI | Up to 8 areas | ||
| Motion Detection | Up to 4 areas | ||
| Behavior Detection | Intrusion, cross line, motion detection,auto tracking | ||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||
| cross line | Cross a pre-defined virtual line | ||
| motion detection | Moving within a pre-defined virtual region | ||
| Recognition | Face detection、Audio detection | ||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||
| Statistical Analysis | People counting | ||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP | ||
| Audio Compression | G.711 | ||
| Two-way audio | Supported | ||
| Suppression | Supported | ||
| Sampling Rate | 8 KHZ | ||
| Edge Storage | Micro SD, up to 128 GB | ||
| Network Storage | ANR | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,TLS,SSL | ||
| Compatible Integration | ONVIF(Profile S, Profile G),API | ||
| Pan Range | 360° (endless) | ||
| Pan Speed | 0.1°/s ~ 240°/s Preset speed: 300°/s | ||
| Tilt Range | –15° ~ +90° (auto reverse) | ||
| Tilt Speed | 0.1° ~ 160°/s Preset speed: 240°/s | ||
| Number of Presets | 1024 | ||
| Patrol | Up to 16 patrols, up to 32 presets per patrol | ||
| Home Position | Supported | ||
| Audio I/O | Audio cable Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] | ||
| Alarm I/O | 1/ 1 | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||
| Power | 24 V AC±25%, 24 V DC±25%, PoE (PSE Required) Power consumption: 9 ~ 42W | ||
| Dimensions(ØxH) | Ø227x359.4 mm (Ø8.9" x 14.2") | ||
| Weight | 5.28 kg (11.6lb) | ||
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F),Humidity :10%~95% RH(non-condensing) | ||
| Ingress Protection | IP66 |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
